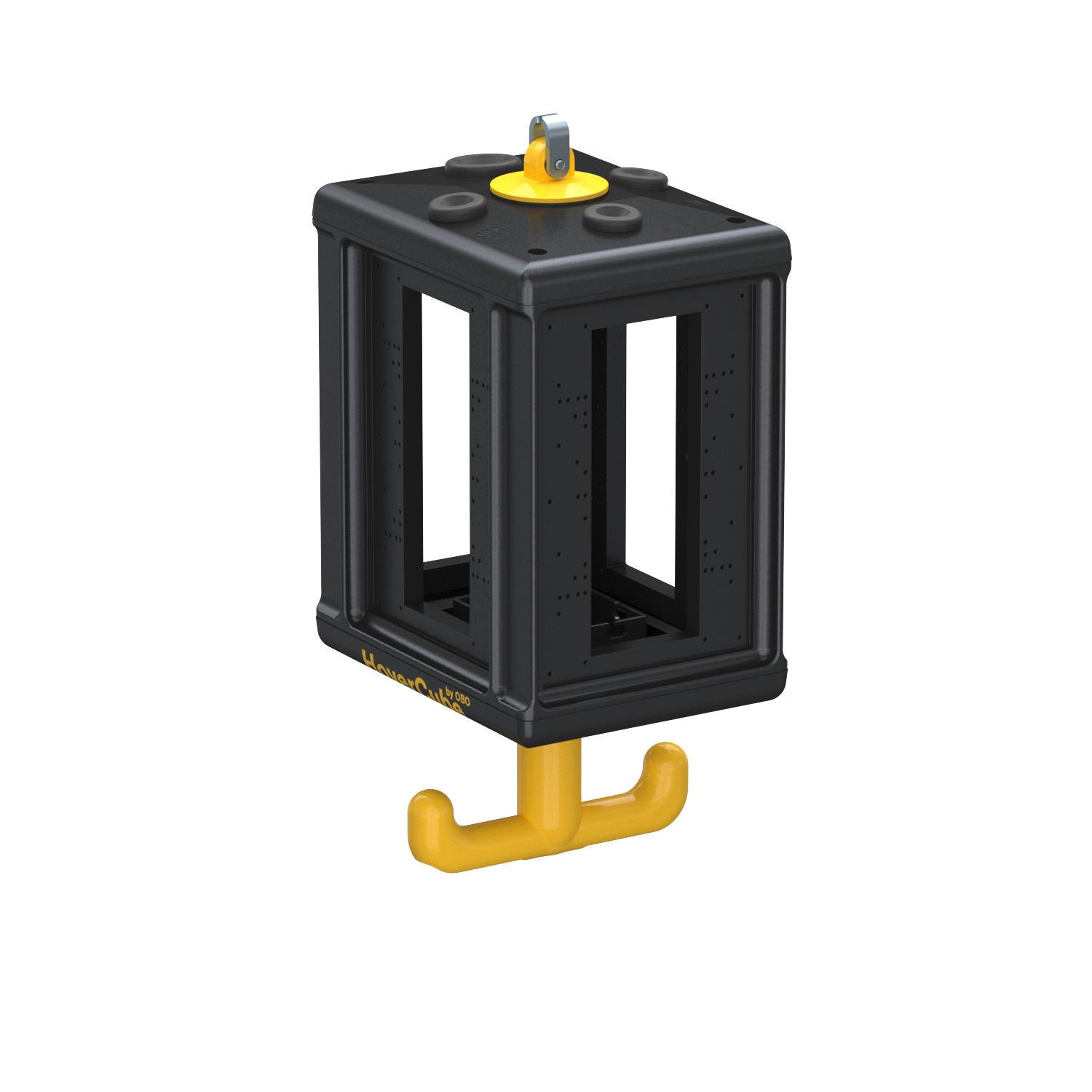

HoverCube VHF-8, empty housing

Item no. 6109822 | EAN 4012195125204

6109822 / VHF-8 LG
Without
Graphite black; RAL 9011
Product description

Product description

Empty housing with suspension lug and grip hook, for the installation of electrical resources, with included partition. Without cover plates to supply workplaces in wet areas. Protection rating: IP44.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
Technical data

Technical data

CEE socket, 125 A Without
CEE socket, 16 A Without
CEE socket, 32 A Without
CEE socket, 63 A Without
Colour Graphite black; RAL 9011
Depth 175 mm

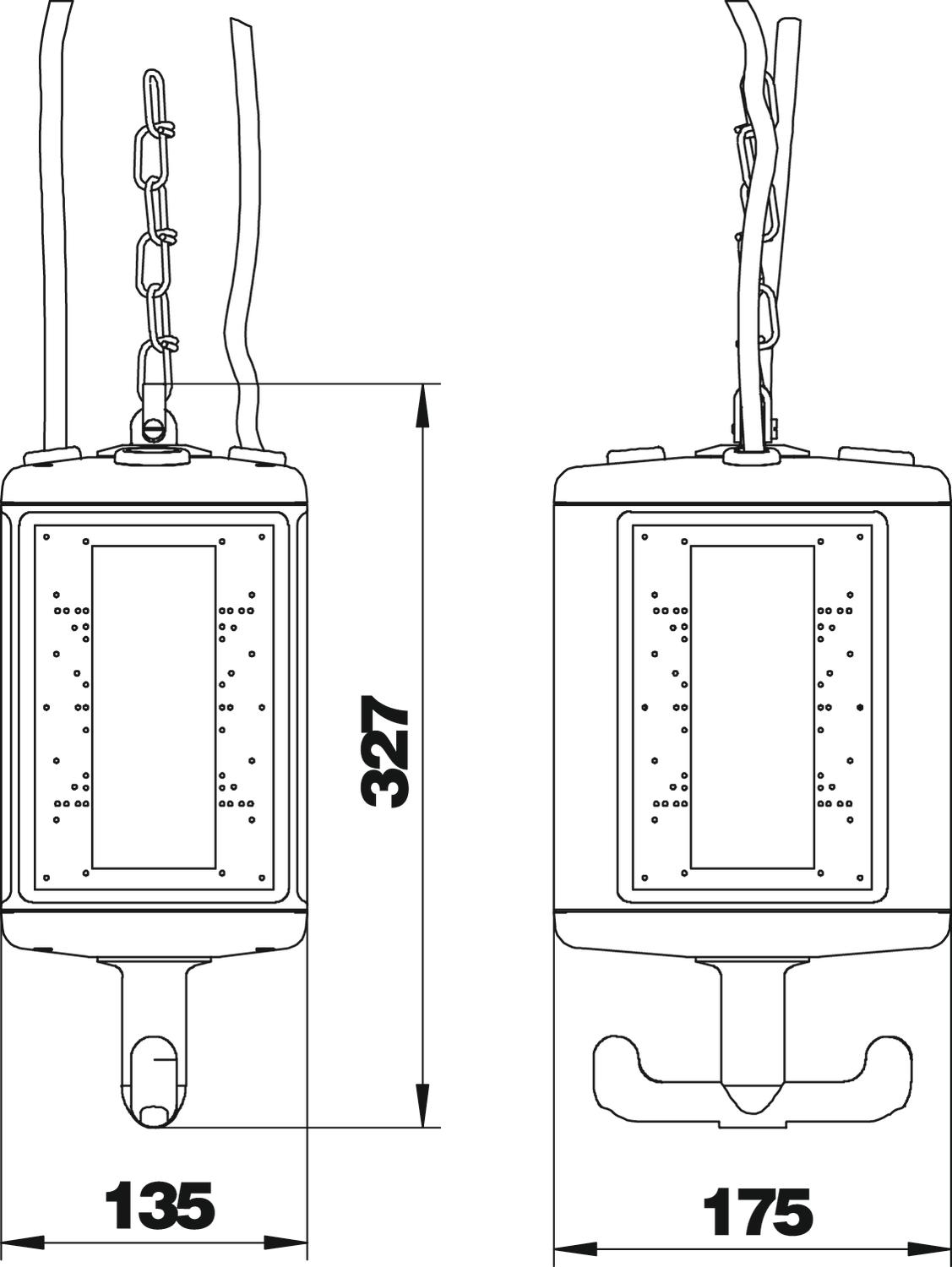

Dimension 175x135x327
FI protection switch Without
Handling abhängbar
Height 327 mm
Material Polyamide
Military version no
Other installations and/or empty slots 8
Protection rating IP44
Supply/connection option Miscellaneous
Width 135 mm
All types

All types

Types FI protection switch Colour Item no. Quantity SSU
VHF-8 LG Without Graphite black; RAL 9011 6109822
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Knotted chain Knotted chain VH-K800 6109870
1 m
Positioner for power supply units VH Positioner for power supply units VH VH-POS 6109887
1 piece
VH/VHF tension spring VH/VHF tension spring VH-F100VA 6109829
40 piece
Downloads

Download

Download

REACH Declaration of conformity VHF-8 LG / 6109822 , 0.13MB , pdf
RoHS Declaration of conformity VHF-8 LG / 6109822 , 0.13MB , pdf

VHF-8 LG / 6109822
Download
