HST M6 hanger screw 80 | 6
morepic-1 morepic-2

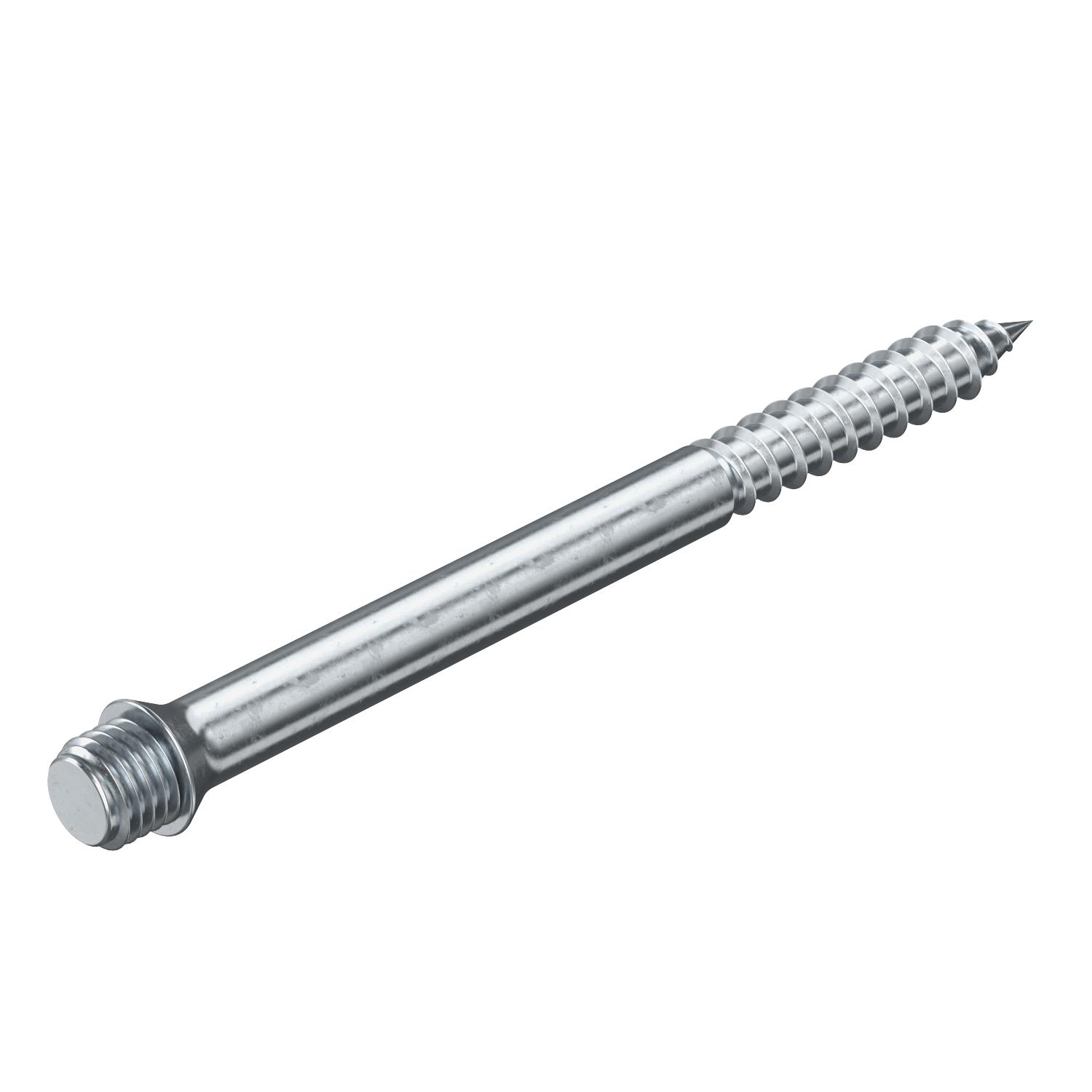

HST M6 hanger screw

Item no. 3498152 | EAN 4012197288068

6 mm
Product description

Product description

Wood screw for fireproof fastening of cable systems for the maintenance of electrical function according to DIN 4102 Part 12 on supporting wooden components. The hanger bolt allows the installation of the ASG 732 clip on wooden components.
Technical data

Technical data

Dimension 145x105x90
Hardened yes
Head diameter 6 mm
Head shape Countersunk head
Material Steel
Screw system Miscellaneous
Shank diameter 6 mm
Surface Electrogalvanized
Thread length 32 mm
Two-compartment no

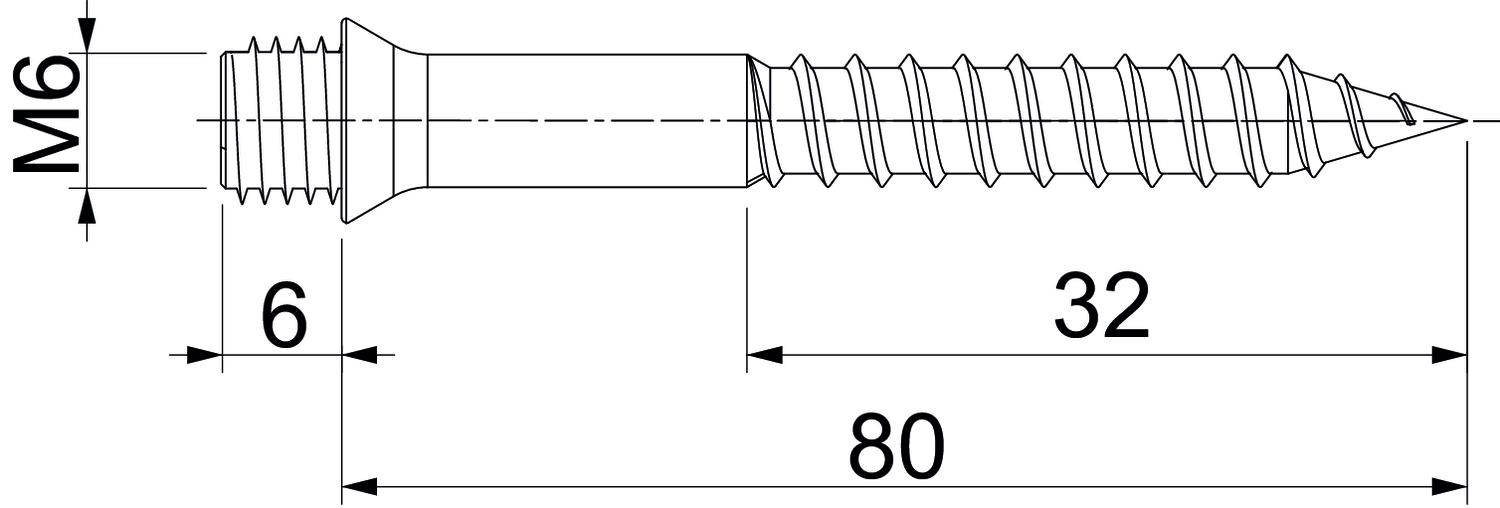

Dimensions

Dimension D 6 mm
Dimension G M6 mm
Dimension L 80 mm
Dimension L1 32 mm
Length 80 mm
All types

All types

Types Length Shank diameter Item no. Quantity SSU
HST 6x50 GA M6 50 mm 6 mm 3498150
100 piece
HST 6x80 GA M6 80 mm 6 mm 3498152
100 piece
