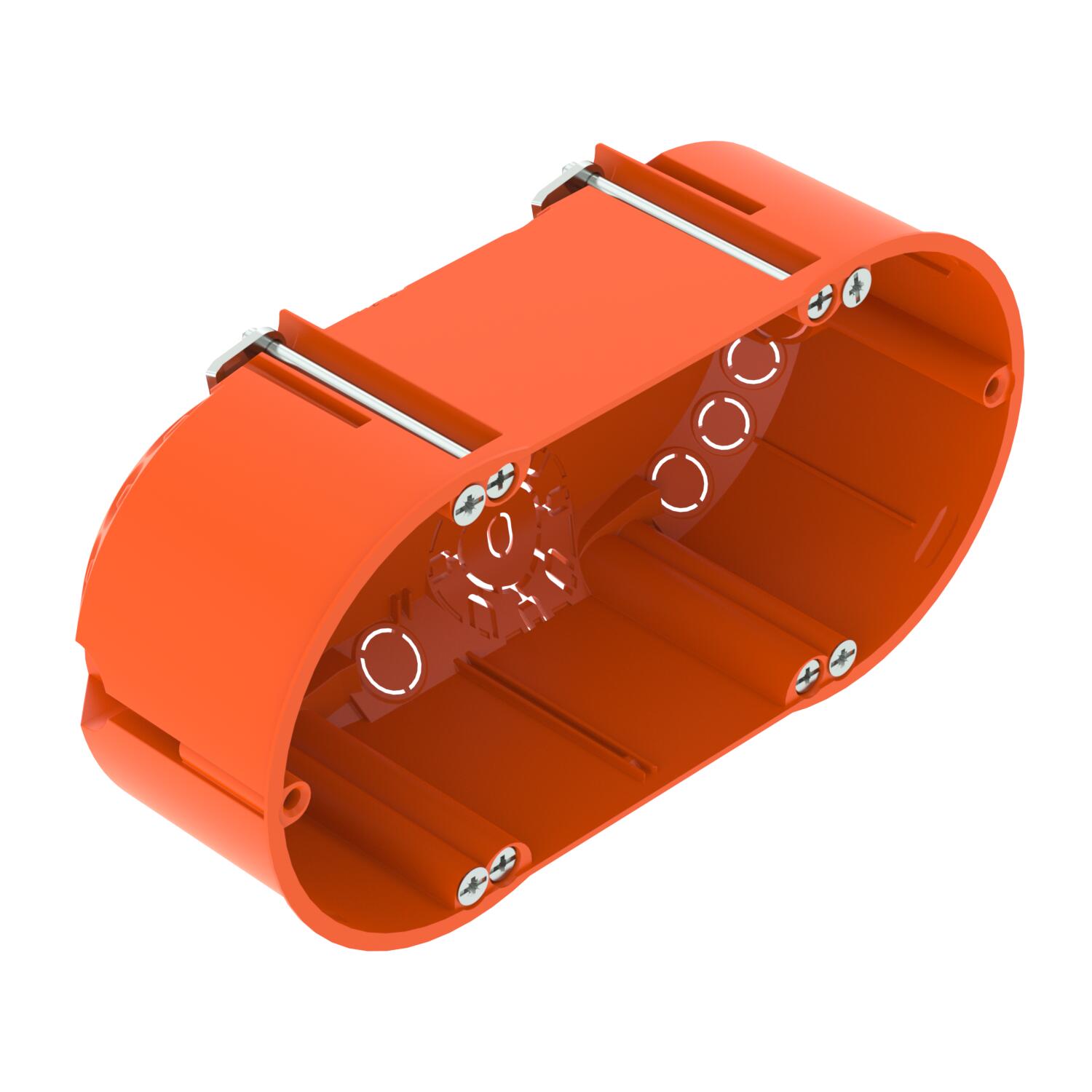

HW Cavity wall device box 47, double
Item no. 2003822 | EAN 4012196863945
- Product description
-
Product descriptionDouble cavity wall device box for use in cavity walls with an installation depth of at least 47 mm and a plate thickness of 5-40 mm.
• 6 screw domes
• Device screws, clamping straps
• 4 combination pipe entries of Ø 20 and 25 mm
• 4 entries for NYM cables 3 x 1.5 mm
• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²
• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²
• Connection with other device boxes via connector, type ZH 11-V
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
-
- Technical data
-
Technical data

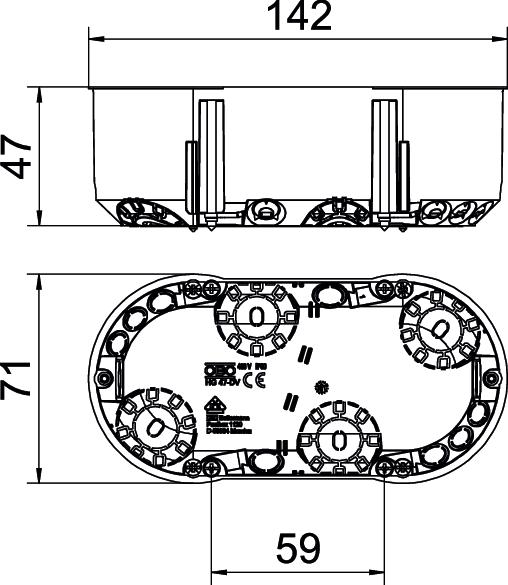

Airtight no Colour Orange Cover Without Cover fastening Screws , CO₂ Footprint (GWP) Cradle-to-Gate 0,227 kg CO₂e / 1 Piece Device fixing Screws , Dimension 142x71 Flame-resistant Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C for pipe diameter 20/25 mm Halogen-free yes Height 47 mm Impact-resistant yes Length 142 mm Material Polypropylene Milling hole diameter 68 mm No. of entries 12 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 1,5 mm² Number of switch boxes 2 Protection rating IP30 Rated voltage 400 V Shape Oval Suitable for plate thickness, max. 40 mm Suitable for plate thickness, min. 5 mm Support Connector Type of housing penetration Break-out opening Type of insertion… NYM cables, data cables and pipes Width 71 mm With bolts yes - All types
