HW Cavity wall outlet box, double, airtight
Item no. 2003834 | EAN 4012197244842
- Product description
-

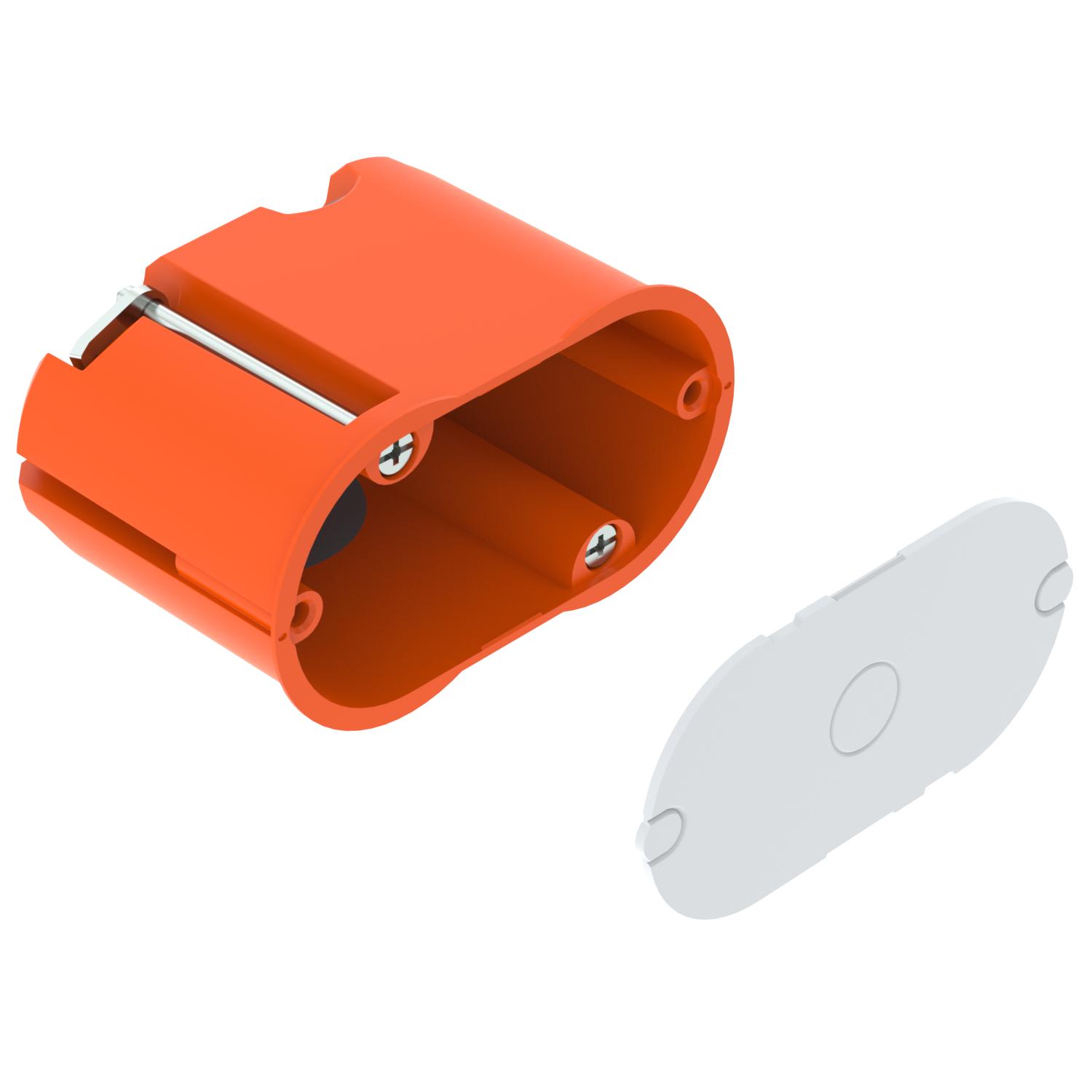

Product descriptionAirtight, double outlet box for cavity walls, for the mounting of wall luminaires or loudspeakers. With cover.
• 1 entry for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²
• 2 entries for NYM cables 3 x 1.5 mm²
• 1 combination pipe entry for Ø 20 and 25 mm
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
-
- Technical data
-
Technical data

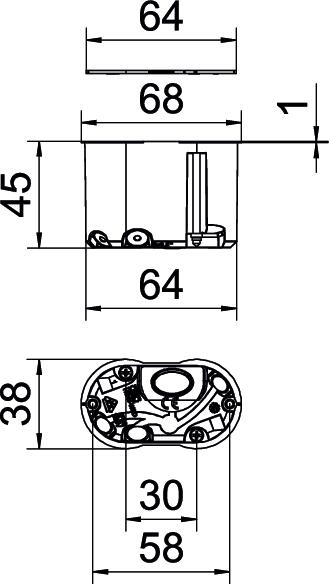

Airtight yes Cable entries 3 x 1.5 mm² 2 Cable entries 3 x 2.5 mm² / 5 x 1.5 mm² 1 Colour orange / grey Combination entries Ø 20 / 25 mm 1 Cover White Cover fastening Locking CO₂ Footprint (GWP) Cradle-to-Gate 0,08 kg CO₂e / 1 Piece Device fixing Screws , Dimension 68x38x45 Flame-resistant Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C for pipe diameter 20/25 mm Halogen-free yes Height 45 mm Impact-resistant yes Length 68 mm Material Polypropylen / Thermoplastisches Elastomer Milling hole diameter 35 mm No. of entries 4 Nominal cross-section, max. 1,5 mm² Nominal cross-section, min. 1,5 mm² Protection rating IP30 Rated voltage 400 V Shape Oval Suitable for plate thickness, max. 40 mm Suitable for plate thickness, min. 5 mm Type of housing penetration Insertion membrane Type of insertion… NYM cables and pipes Width 38 mm With bolts no - All types
- Downloads
-
Data sheet HG 45-WAD-LD / 2003834 , 0.28MB , pdfEU declaration of conformity HG 45-WAD-LD / 2003834 , 0.13MB , pdfLabel approval VDE symbol approval HG 45-WA-LD , 0.34MB , pdfMounting instructions Mounting instructions, HW cavity wall boxes , 8.26MB , pdf
