HW Compensation ring 20
morepic-1 morepic-2

HW Compensation ring 20

Item no. 2003844 | EAN 4012196714698

Product description
Product description

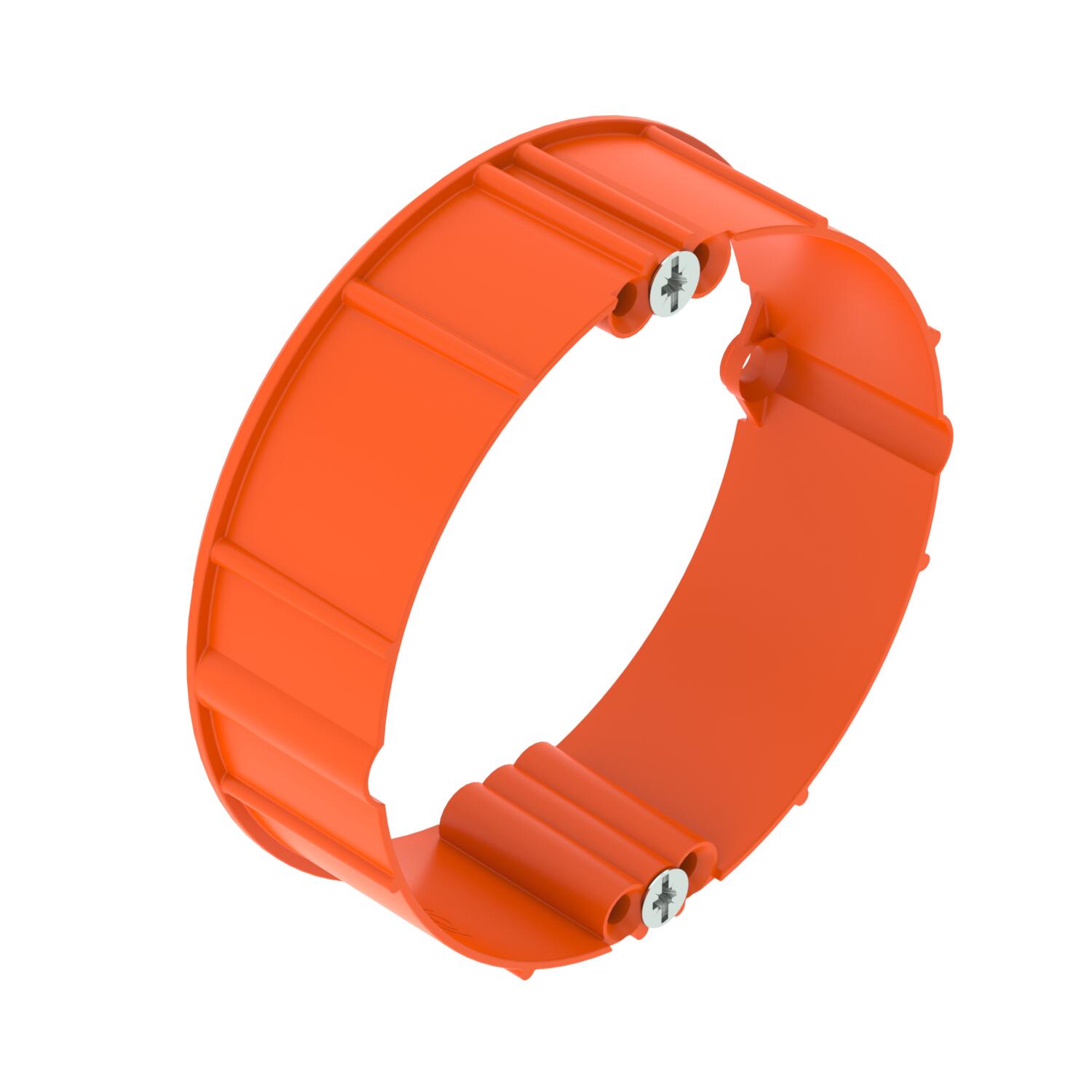

Compensation ring for cavity wall device box Ø 68 mm, to screw on.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 850 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • RoHS-conformant
  • Diameter 68 mm
Technical data

Technical data

Accessory screw clearance 60 mm
Colour Orange
Diameter 68 mm

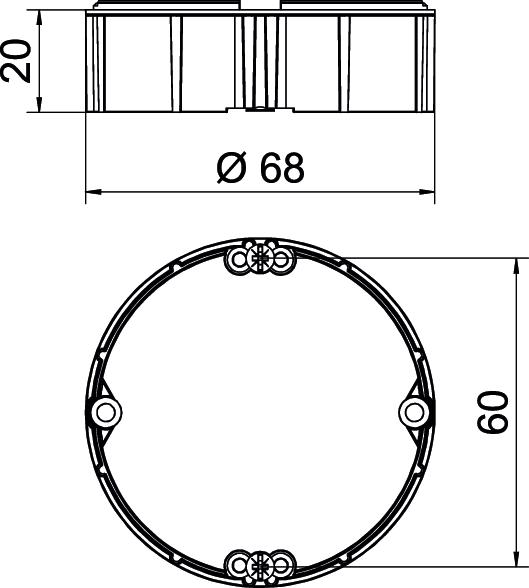

Dimension Ø68mm, H20mm
Flame-resistant Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C
Halogen-free yes
Height 20 mm
Impact-resistant yes
Material Polypropylene
With bolts yes
All types

All types

Types Mounting type Item no. Quantity SSU
ZH 20-AR 2003844
600 piece
