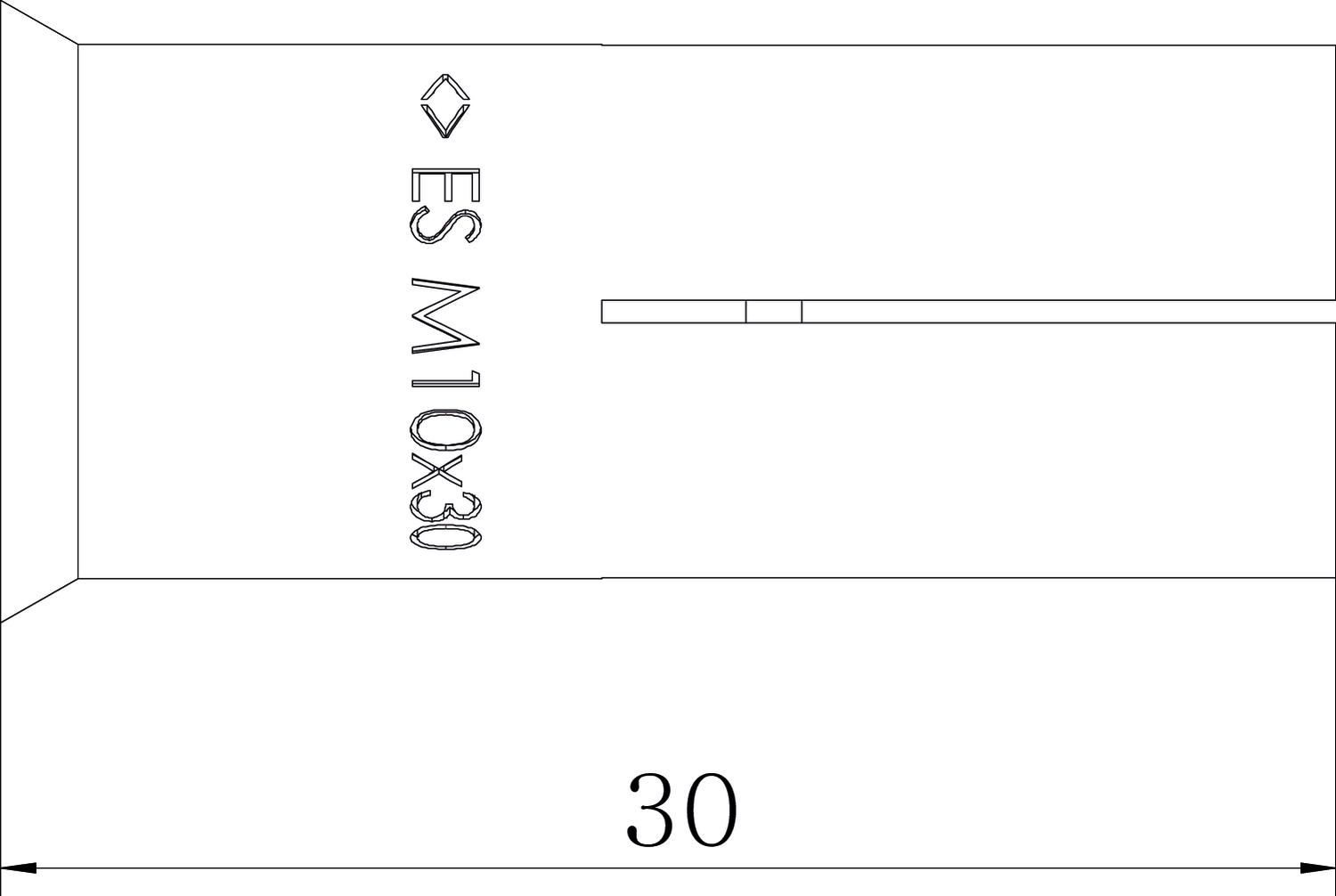

Impact tie, version with collar 30 | M10 | 2

Impact tie, version with collar

Item no. 3492032 | EAN 4012196179091

Item no. / Types

Length

Thread

Permitted load range, tension zone

Product description

Product description

Impact tie for single fastening of non-load-bearing systems in non-cracked concrete as well as for multiple fastening in cracked and non-cracked concrete.

Tested to fire protection standards, fire resistance class R 120 according to European Technical Approval ETA-02/0020 (option 7) and European Technical Approval ETA-05/0116.

Mounting with marking and setting tool.

Technical data

Technical data

Approvals available	yes
Colour	zinc
Dimension	10x30
Dimension L	30 mm
Drill hole depth	30 mm
Drill hole diameter, min.	12 mm
Fastening unit	Miscellaneous
Length	30 mm
Material	Steel
Mounting type, anchor, tie	Pre-mounting

Permitted load range, tension zone	2
Screw-in depth, max.	12 mm
Screw-in depth, min.	10 mm
Self-drilling	no
Suitable for material	Concrete
Surface	Electrogalvanized
Thread	M10
Thread metric	10
Version for	Lightning strike

All types

All types

Types	Length	Thread	Permitted load range, tension zone	Item no.	Quantity	SSU
ES M 6x25	25 mm	M6	1.7	3492018	piece	100 piece
ES M 8x25	25 mm	M8	1.9	3492020	piece	100 piece
ES M 10x25	25 mm	M10	2.1	3492022	piece	50 piece
ES M 8x30	30 mm	M8	1.7	3492023	piece	100 piece
ES M 10x40	40 mm	M10	2	3492024	piece	50 piece
ES M 12x25	25 mm	M12	2.1	3492025	piece	50 piece
ES M 12x50	50 mm	M12	2.4	3492026	piece	50 piece
ES M 10x30	30 mm	M10	2	3492032	piece	50 piece
