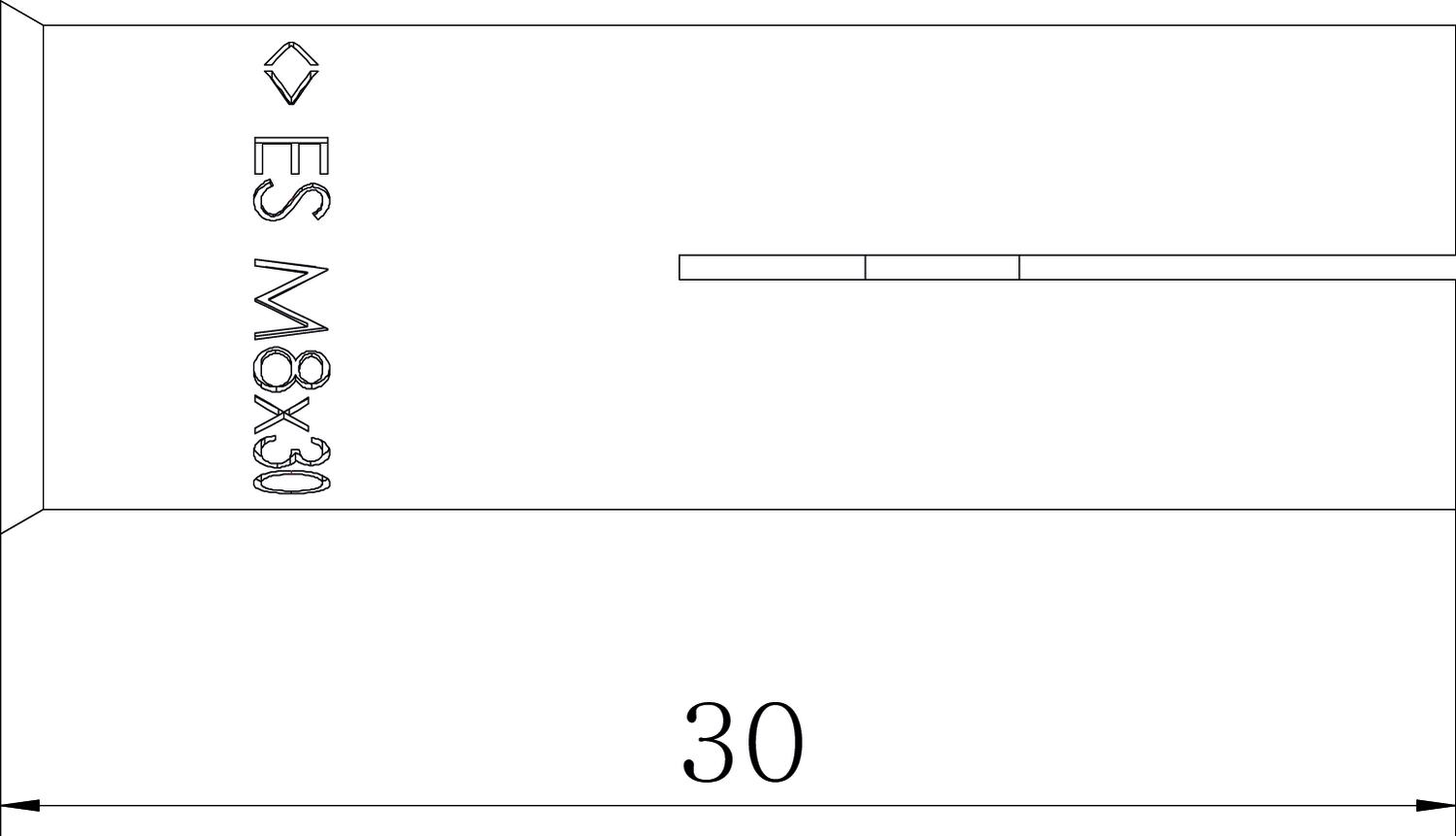

Impact tie, version with collar 30 | M8 | 1.7

Impact tie, version with collar

Item no. 3492023 | EAN 4012196395934

Item no. / Types

Length

Thread

Permitted load range, tension zone

Product description

Product description

Impact tie for single fastening of non-load-bearing systems in non-cracked concrete as well as for multiple fastening in cracked and non-cracked concrete.

Tested to fire protection standards, fire resistance class R 120 according to European Technical Approval ETA-02/0020 (option 7) and European Technical Approval ETA-05/0116.

Mounting with marking and setting tool.

Technical data

Technical data

Approvals available	yes
Colour	zinc
Dimension	8x30
Dimension L	30 mm
Drill hole depth	30 mm
Drill hole diameter, min.	10 mm
Fastening unit	Miscellaneous
Length	30 mm
Material	Steel
Mounting type, anchor, tie	Pre-mounting

Permitted load range, tension zone	1,7
Screw-in depth, max.	13 mm
Screw-in depth, min.	9 mm
Self-drilling	no
Suitable for material	Concrete
Surface	Electrogalvanized
Thread	M8
Thread metric	8
Version for	Lightning strike

All types

All types

Types	Length	Thread	Permitted load range, tension zone	Item no.	Quantity	SSU
ES M 6x25	25 mm	M6	1.7	3492018	piece	100 piece
ES M 8x25	25 mm	M8	1.9	3492020	piece	100 piece
ES M 10x25	25 mm	M10	2.1	3492022	piece	50 piece
ES M 8x30	30 mm	M8	1.7	3492023	piece	100 piece
ES M 10x40	40 mm	M10	2	3492024	piece	50 piece
ES M 12x25	25 mm	M12	2.1	3492025	piece	50 piece
ES M 12x50	50 mm	M12	2.4	3492026	piece	50 piece
ES M 10x30	30 mm	M10	2	3492032	piece	50 piece
