Impu steel nail

Item no. 3360237 | EAN 4012195293231

Item no. / Types

Length

Shank diameter	2 mm

Product description

Product description

Hardened steel, blue tempered, with vulcanised fibre disc.

Technical data

Technical data

Dimension	2x23mm
Dimension d	2 mm
Dimension L	23 mm
Hardened	yes
Head shape	Rounded head
Length	23 mm
Material	Steel

Screw nail version	no
Shaft form	Smooth
Shank diameter	2 mm
Surface	Bright
Tip shape	Chisel tip
Version for	Impu

All types

All types

Types	Length	Shank diameter	Item no.	Quantity	SSU
500 12	12 mm	2 mm	3360121	piece	1000 piece
500 16	16 mm	2 mm	3360164	piece	1000 piece
500 18	18 mm	2 mm	3360180	piece	1000 piece
500 23	23 mm	2 mm	3360237	piece	1000 piece
500 30	30 mm	2 mm	3360296	piece	1000 piece
500 40	40 mm	2 mm	3360407	piece	1000 piece
500 50	50 mm	2 mm	3360504	piece	1000 piece
500 60	60 mm	2 mm	3360601	piece	1000 piece

Downloads

Data sheet 500 23 / 3360237 , 0.14MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

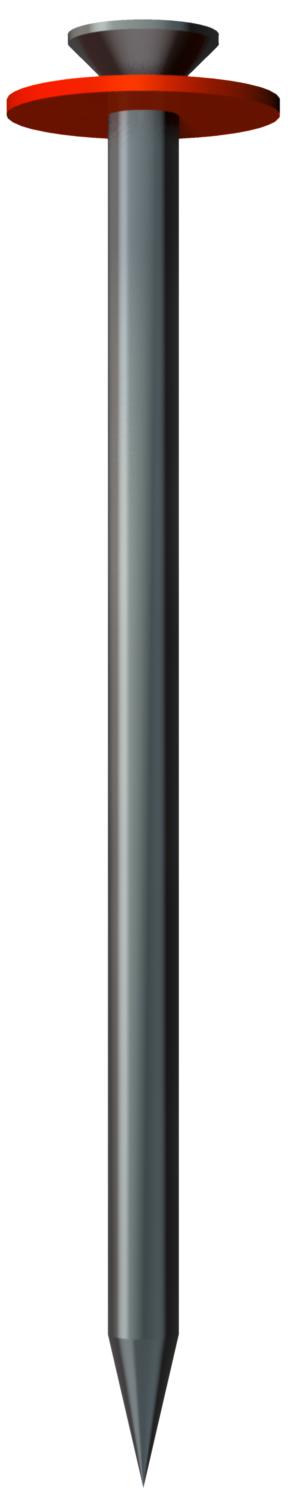

Product graphic 500 23 / 3360237, 18.24 kB, jpg

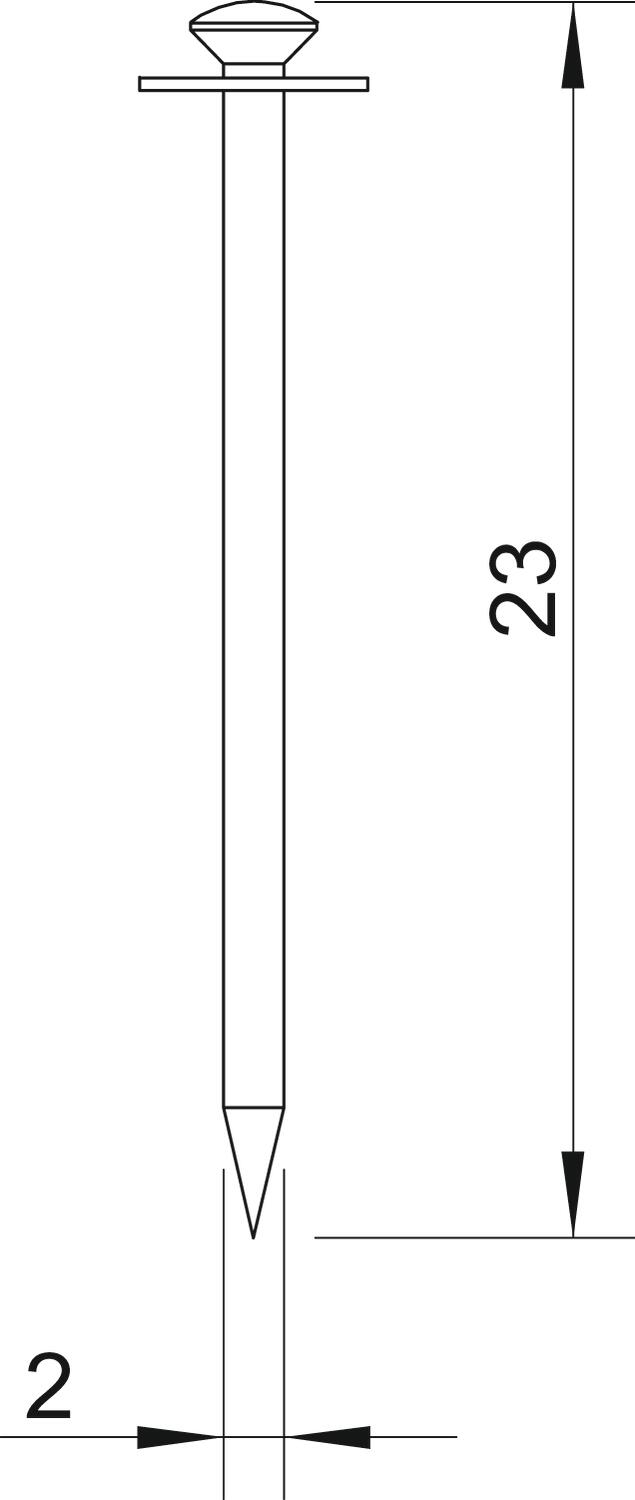

Scale drawing 500 23 / 3360237, 25.26 kB, jpg

500 23 / 3360237
