Impu steel nail 30 | 2

morepic-1

morepic-2

Impu steel nail

Item no. 3360296 | EAN 4012195293293

Item no. / Types

Length

Shank diameter	2 mm

Product description

Product description

Hardened steel, blue tempered, with vulcanised fibre disc.

Technical data

Technical data

Dimension	2x30mm
Dimension d	2 mm
Dimension L	30 mm
Hardened	yes
Head shape	Rounded head
Length	30 mm
Material	Steel

Screw nail version	no
Shaft form	Smooth
Shank diameter	2 mm
Surface	Bright
Tip shape	Chisel tip
Version for	Impu

All types

All types

Types	Length	Shank diameter	Item no.	Quantity	SSU
500 12	12 mm	2 mm	3360121	piece	1000 piece
500 16	16 mm	2 mm	3360164	piece	1000 piece
500 18	18 mm	2 mm	3360180	piece	1000 piece
500 23	23 mm	2 mm	3360237	piece	1000 piece
500 30	30 mm	2 mm	3360296	piece	1000 piece
500 40	40 mm	2 mm	3360407	piece	1000 piece
500 50	50 mm	2 mm	3360504	piece	1000 piece
500 60	60 mm	2 mm	3360601	piece	1000 piece

Downloads

Data sheet 500 30 / 3360296 , 0.14MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

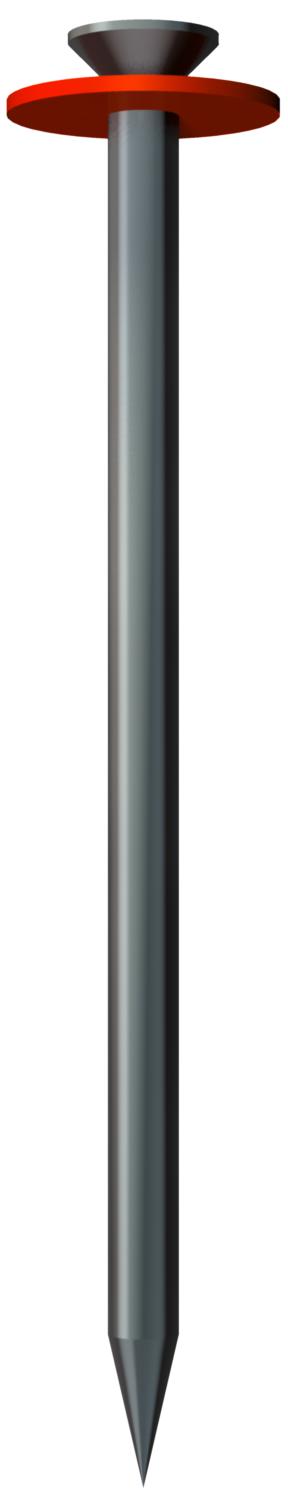

Product graphic 500 30 / 3360296, 18.24 kB, jpg

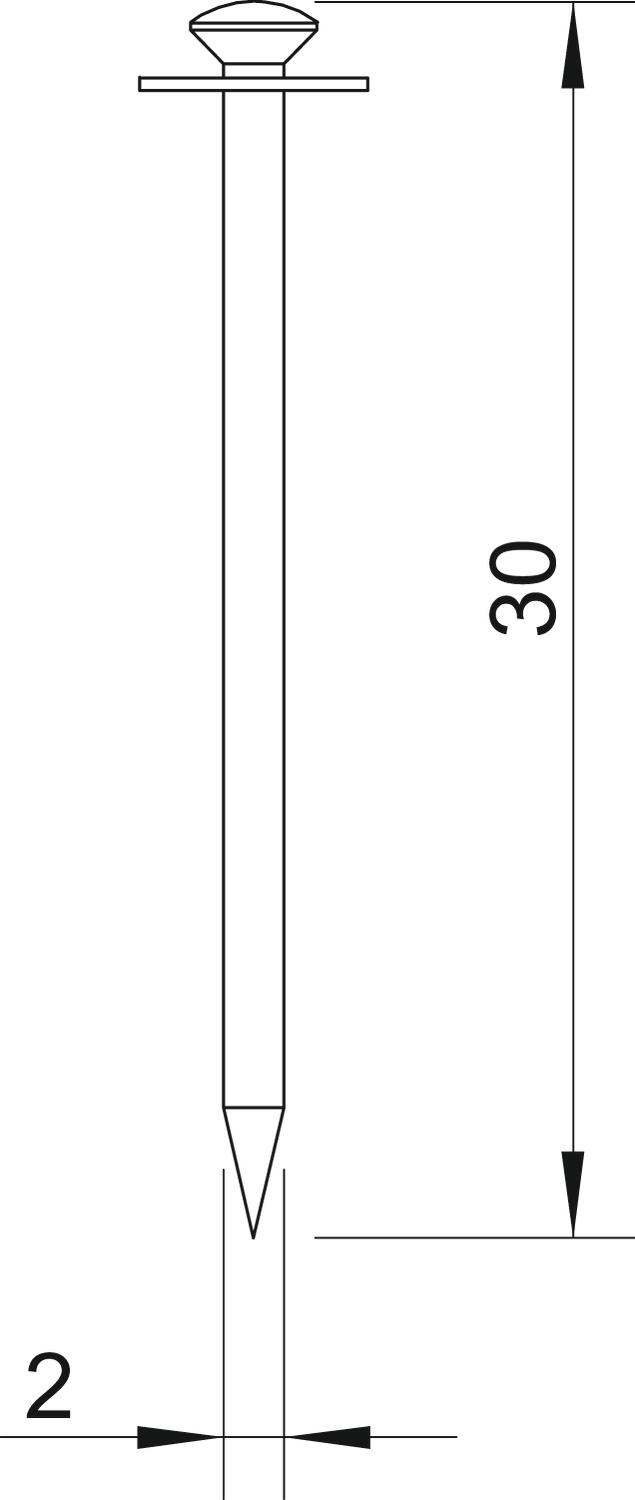

Scale drawing 500 30 / 3360296, 25.23 kB, jpg

500 30 / 3360296
