- Product description
-
Product description

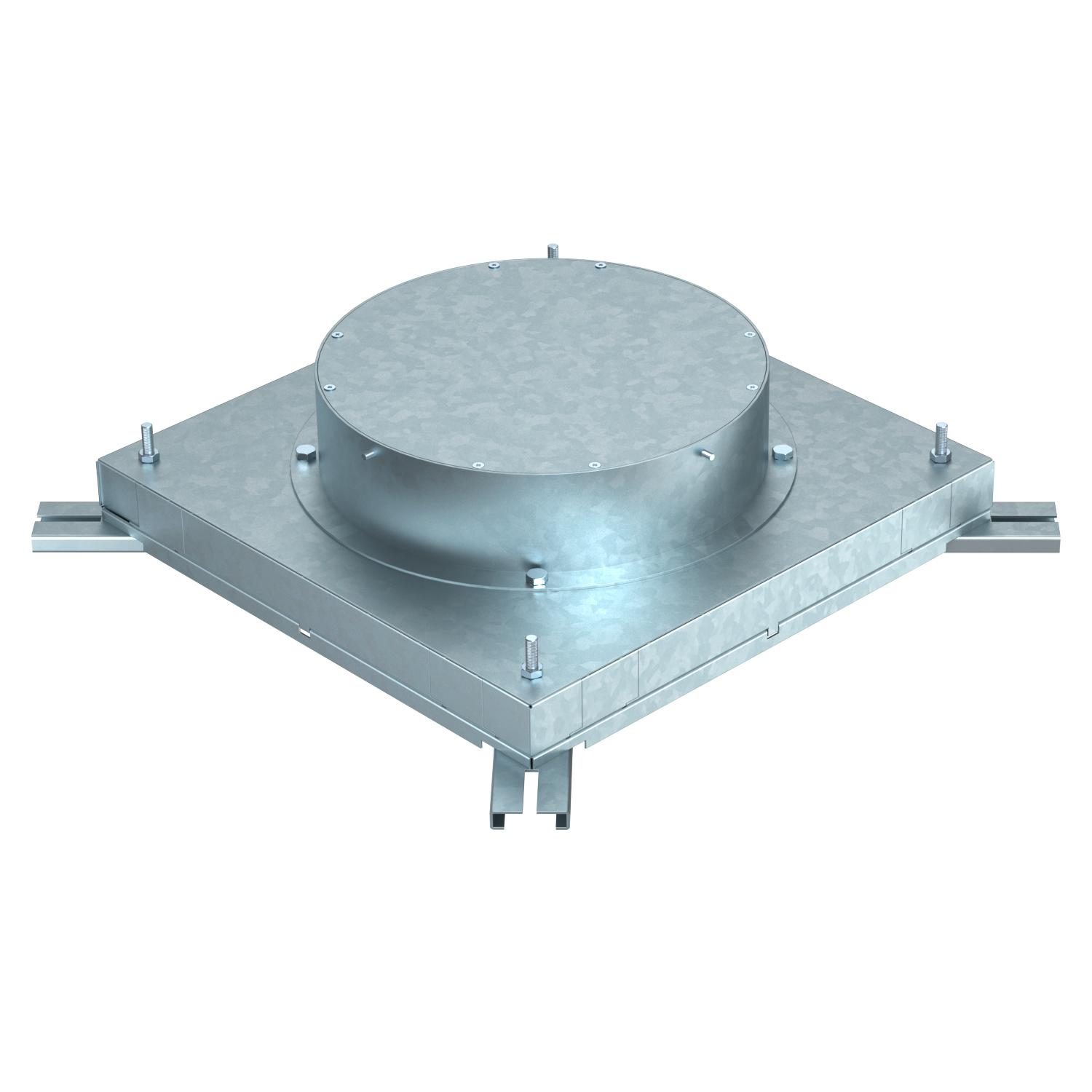

In-concrete box for duct height 48 mm, prepared for duct widths 250 and 350 mm.
With four adjustable placements for height-adjustment units.
The integrated lined body can be adjusted to a maximum of 65 mm for compensating screed work.
-
- Technical data
-
Technical data
Decouplable no Duct height, min. 48 mm Floor plate yes For pipe connection no Installation opening for flush-mount unit Round Installation opening for on-floor tank no Material Steel Nominal size for device installation units R9 Number of installable devices 12 Seal installation option no Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts yes Surface Strip galvanized Trunking width, max. 350 mm Trunking width, min. 250 mm Dimensions

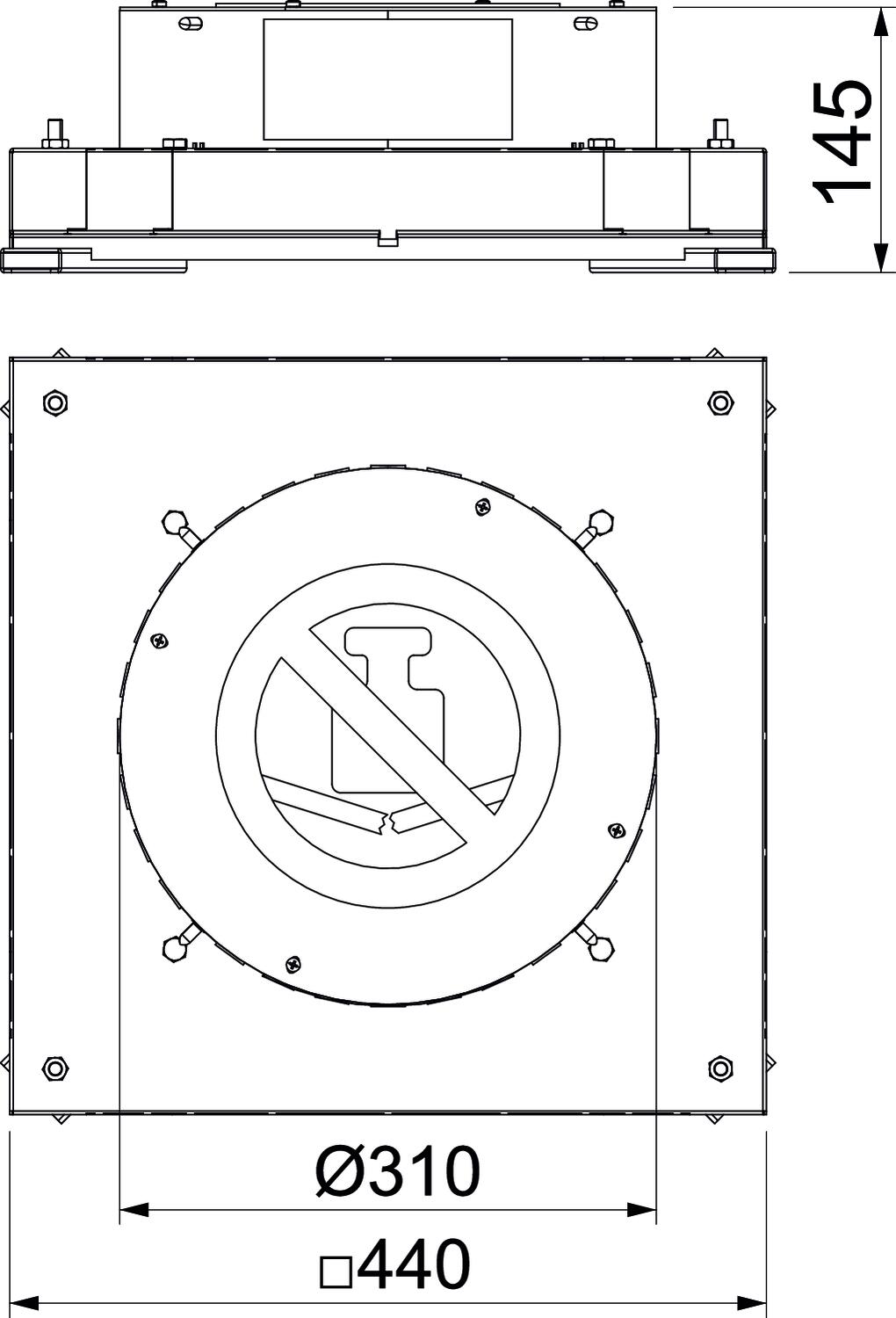

Dimension h 145 mm Height 145 mm - All types
- Downloads
-
Data sheet IBD 35048 R9 / 7399858 , 0.24MB , pdfMounting instructions Im-Beton-Kanalsystem IBK , 3.27MB , pdf
