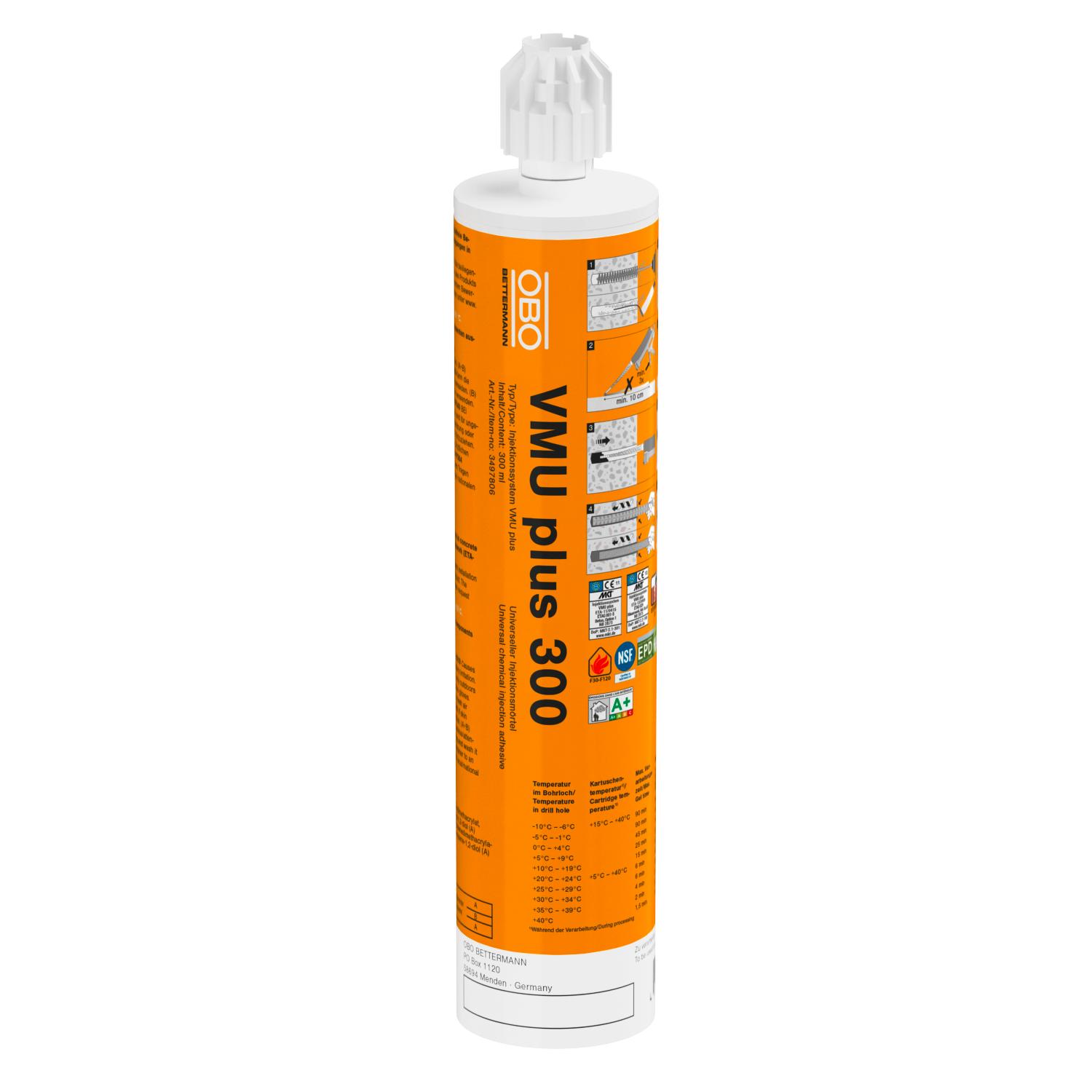

Injection mortar in cartridge, 300 ml

Item no. 3497806 | EAN 4012197334017

Product description

Product description

Styrene-free, vinyl ester composite mortar for spread-free anchoring of high loads with threaded anchor rods. Coaxial cartridge, including 1 mixing tube, to be worked with the standard cartridge gun or VM-P 345 Profi.


European Technical Assessment for cracked and uncracked concrete, as well as for masonry of full and hollow brick. Earthquake-proof in concrete according to Category C1. Fire protection approval for concrete and masonry with fire resistance classes up to 120 minutes.


Substrate temperature during processing -10 °C to +40 °C (concrete), ambient temperature after complete hardening -40 °C to +120 °C (in concrete). Will keep for at least 18 months if stored in a dark, cool and dry place.
The injection mortar has a European Technical Approval (ETA) for cracked and uncracked concrete, as well as for masonry of full or hollow brick. It is earthquake-proof according to performance category C1 and has fire protection approvals for concrete and masonry with a fire resistance class up to 120 minutes.
The injection mortar is worked with a pressing gun, type VM-P 345 Profi, or a standard silicone press.

The substrate temperature during processing must be ‒10 °C to +40 °C (concrete) and the ambient temperature after complete hardening ‒40 °C to +120 °C (in concrete).

If stored in a dark, cool and dry place, the mortar will keep for at least 18 months.
Technical data

Technical data

Adhesive application Construction/mounting
Contents 300 ml
Delivery form Cartridge

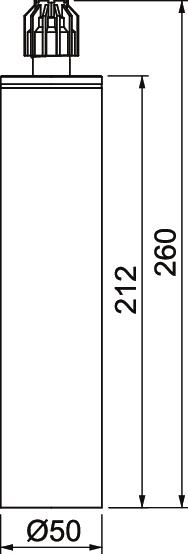

Dimension 260x50x50
Hardening method 2-component
Transparent no
With brush no
All types

All types

Types Item no. Quantity SSU
VMU plus 300 3497806
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU

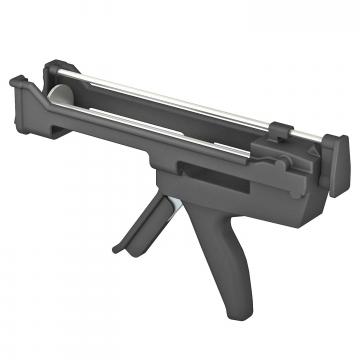

Pressing gun for standard cartridges and side-by-side cartridges Pressing gun for standard cartridges and side-by-side cartridges VM-P 345 Profi 3497906
1 piece

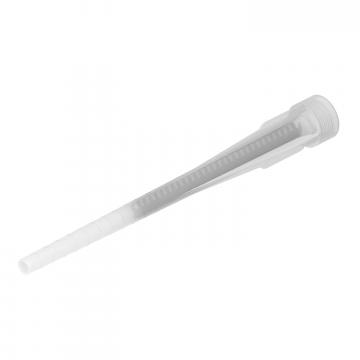

Mixer pipe for mortar cartridge Mixer pipe for mortar cartridge VM-X 3497981
12 piece

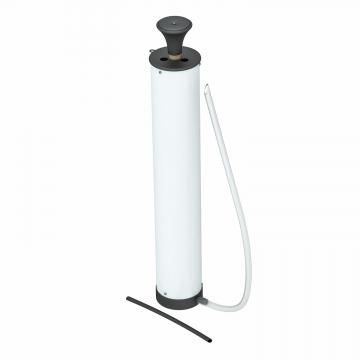

Blow pump for drill holes Blow pump for drill holes VM-AP 360 3497912
1 piece
Extension pipe Extension pipe VM-XE 10/200 3497984
12 piece
Extension pipe Extension pipe VM-XE 10/500 3497987
10 piece
Downloads

Download

No invitation to tender text is available for this product.
