Insert plate FS

Item no. 6103235 | EAN 4012196420735

3000 mm
Product description

Product description

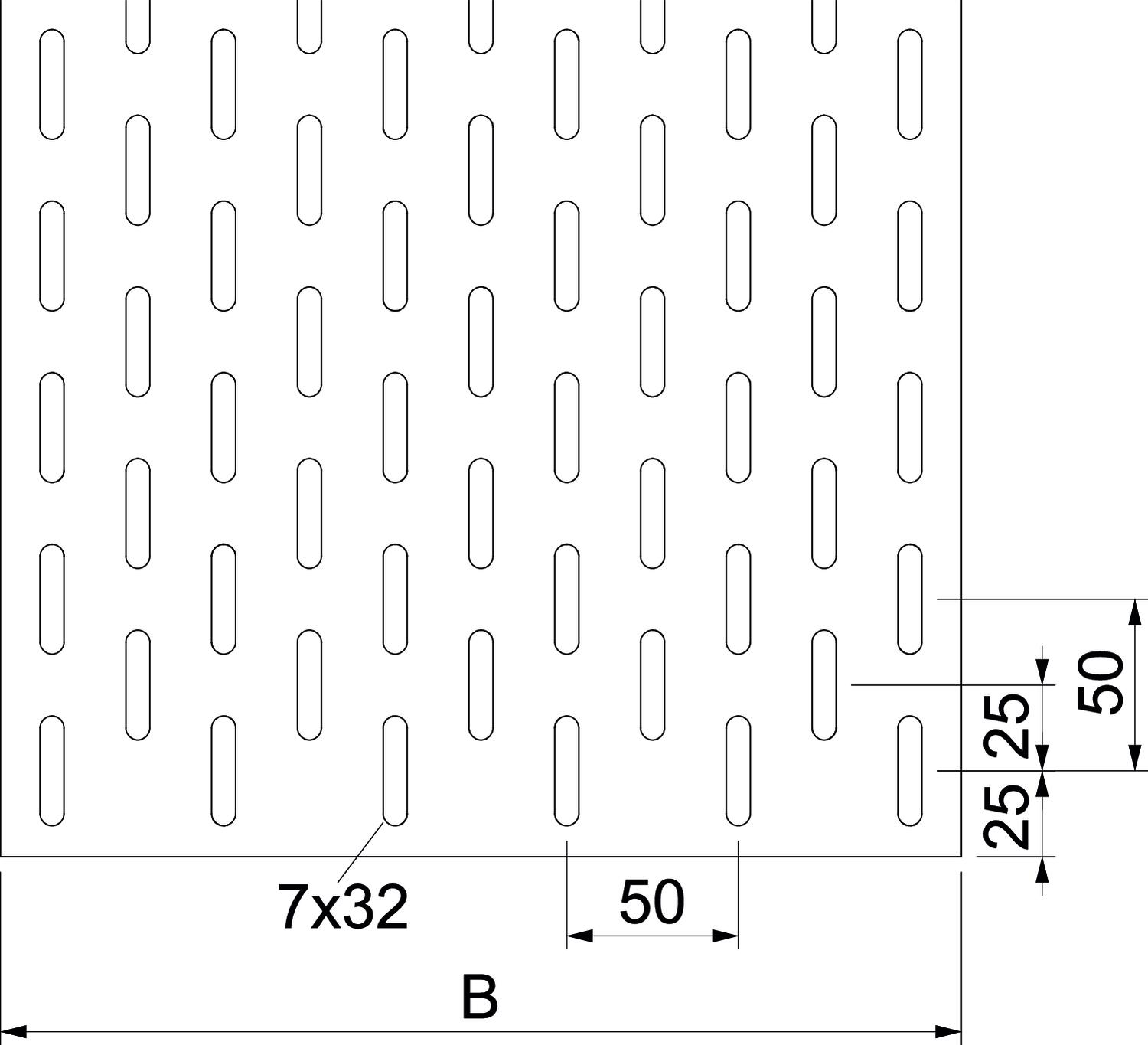

Insert plate for use in cable ladders.
For fastening in wide span cable ladders, use truss-head bolts with combination nut of type FR SB 6x30.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 45 mm
  • Cable ladder, side height 60 mm
  • Cable ladder, side height 110 mm
Technical data

Technical data

Dimension 200x3000
Dimension B 200 mm
Height 45 mm
Length 3000 mm
Material Steel
Material thickness 1 mm
Surface Strip galvanized
Width 200 mm
All types

All types

Types Length Width Item no. Quantity SSU
ELB-L 20 FS 3000 mm 200 mm 6103235
3 m
ELB-L 30 FS 3000 mm 300 mm 6103251
3 m
ELB-L 40 FS 3000 mm 400 mm 6103286
3 m
ELB-L 50 FS 3000 mm 500 mm 6103316
3 m
ELB-L 60 FS 3000 mm 600 mm 6103332
3 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x30 F 6406907
100 piece
