- Product description
-
Product description

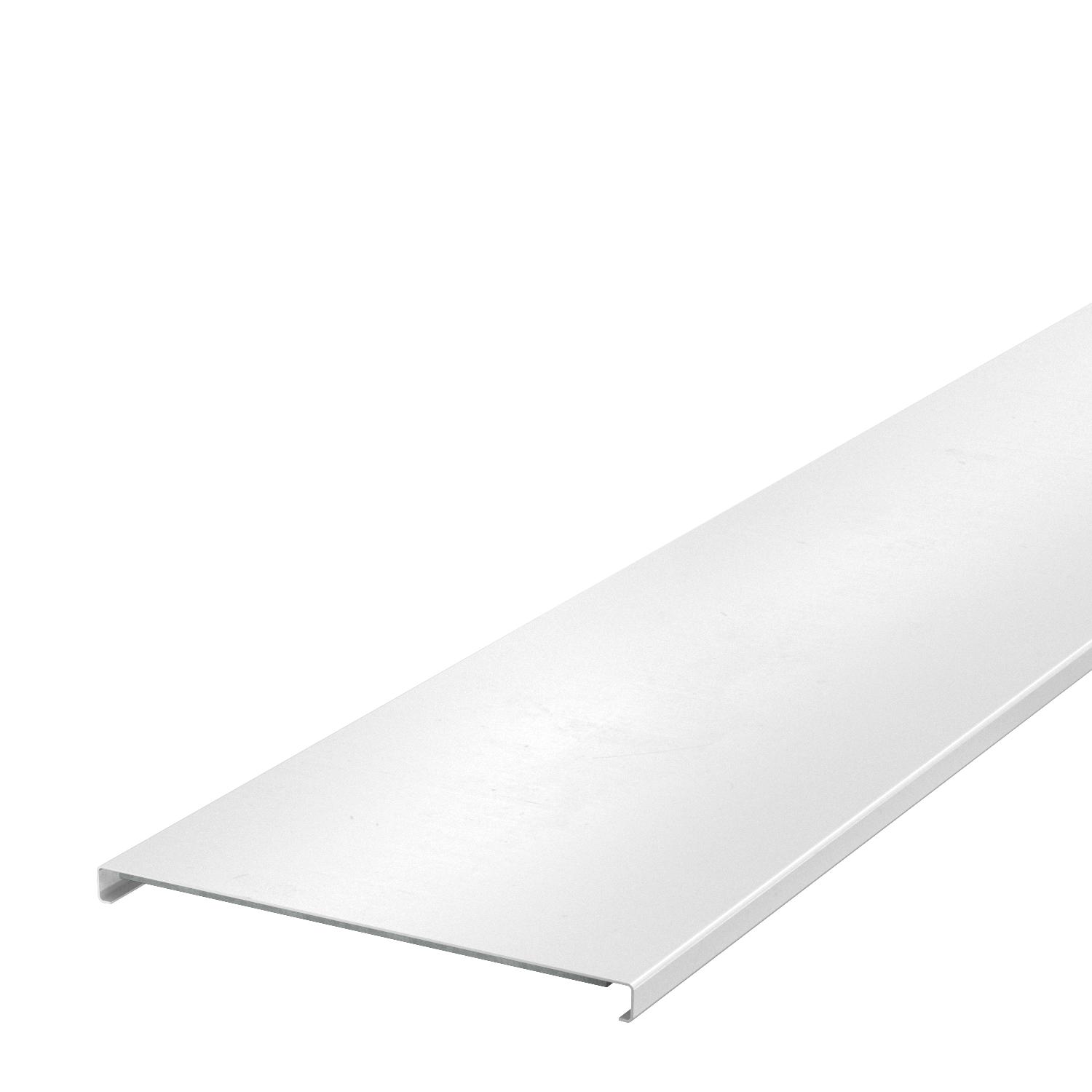

Cover with factory-made beading for toolless mounting and continuous equipotential bonding. Additional locking brackets can be used for shortened covers. Take the details from the mounting instructions into account.
-
- Technical data
-
Technical data
Accessories yes Classification EI − installation duct 90 Colour Pure white; RAL 9010 Dimension 12x177x200 Material Steel Spare part no Surface Powder-coated Type of accessory Miscellaneous Dimensions

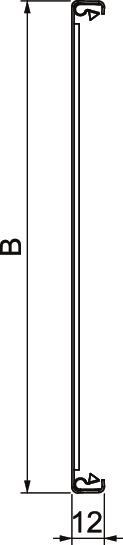

Dimension B 176 mm Length 2000 mm - All types
- Downloads
-
Data sheet PLM LI 200 RW / 7218026 , 0.13MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfSafety data sheet Insulation forming material FSB , 0.05MB , pdf
