Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 120 mm, pure white 2000 | 200 | 120 | Pure white; RAL 9010
morepic-1

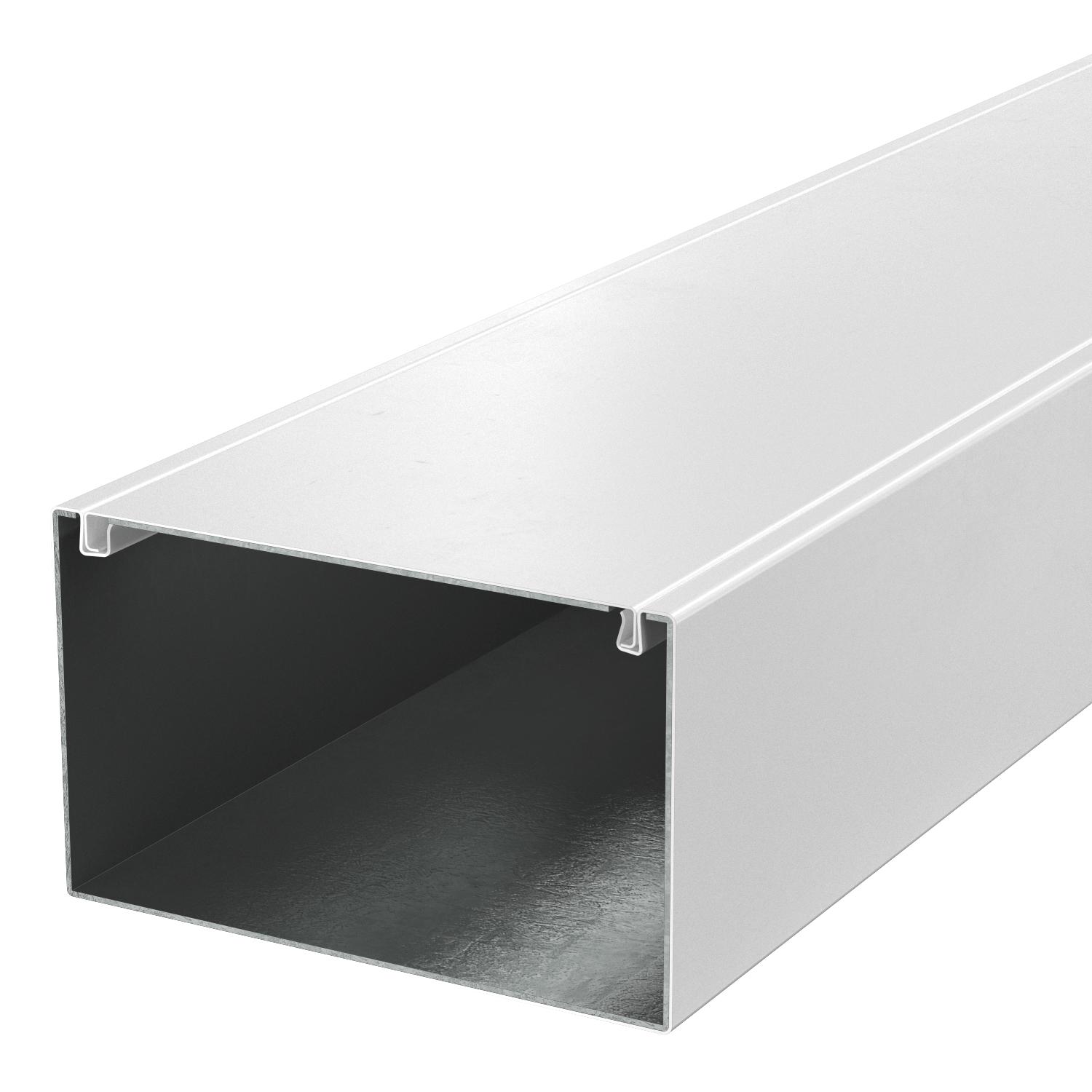

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 120 mm, pure white

Item no. 7218014 | EAN 4012197351311

7218014 / PLM D 1220 RW
2000 mm
200 mm
120 mm
Pure white; RAL 9010
Product description

Product description

Metal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.

Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. Only approved pre-terminated fittings may be used. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.


  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 90
Colour Pure white; RAL 9010
Cover fastening Miscellaneous
Dimension 120x200x2000
Dimension i 162 mm
Jacketing Steel
Material Steel
Number of flammable sides 4
Partitions possible yes
Surface Powder-coated
Usable cross-section 18500 mm²
With perforation yes

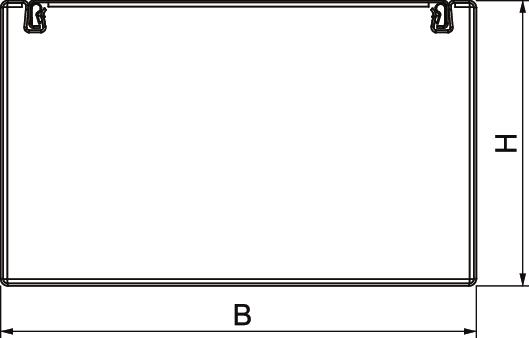

Dimensions

Dimension B 200 mm
Dimension H 120 mm
Height 120 mm
Internal height 114 mm
Internal width 194 mm
Length 2000 mm
Width 200 mm
All types

All types

Types Length Dimension B Dimension H Colour Item no. Quantity SSU
PLM D 1220 RW 2000 mm 200 mm 120 mm Pure white; RAL 9010 7218014
2 m
Accessories

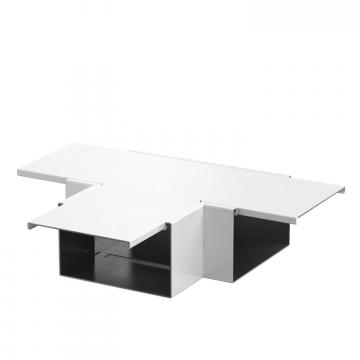

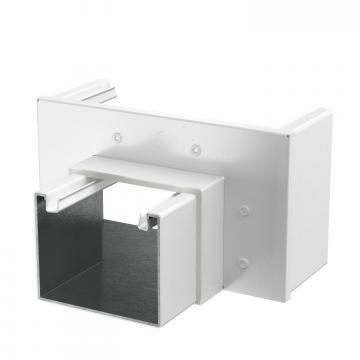

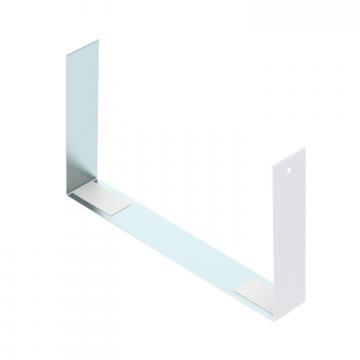

System accessories

Products Types Item no. Quantity SSU

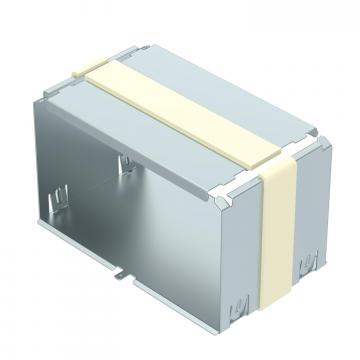

Joint connector set, duct height 120 mm Joint connector set, duct height 120 mm PLM SI 1220 7218032
1 piece

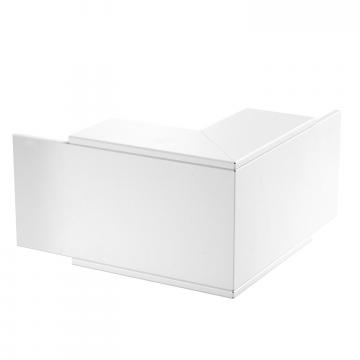

External corner, duct height 120 mm, pure white External corner, duct height 120 mm, pure white PLM EC 1220 RW 7218048
1 piece

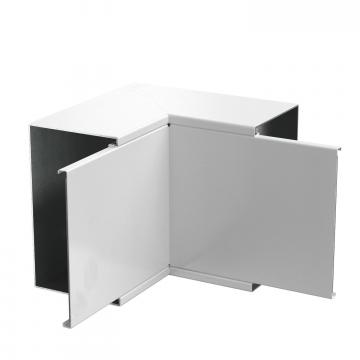

Internal corner, duct height 120 mm, pure white Internal corner, duct height 120 mm, pure white PLM IC 1220 RW 7218060
1 piece

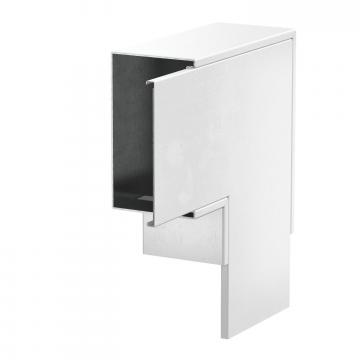

Flat angle, duct height 120 mm, pure white Flat angle, duct height 120 mm, pure white PLM FA 1220 RW 7218072
1 piece

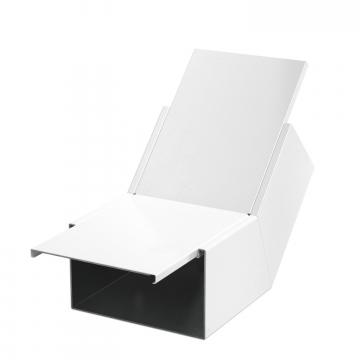

Vertical bend, rising, duct height 120 mm, pure white Vertical bend, rising, duct height 120 mm, pure white PLM BR 1220 RW 7218120
1 piece

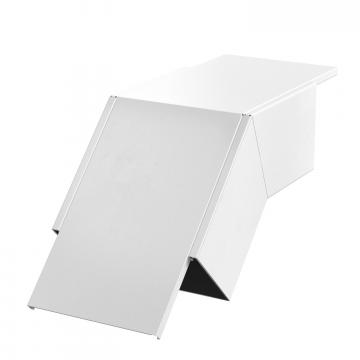

Vertical bend, falling, duct height 120 mm, pure white Vertical bend, falling, duct height 120 mm, pure white PLM BF 1220 RW 7218112
1 piece

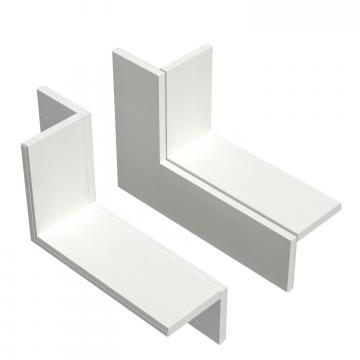

Wall connection set, 2-sided, for corner mounting, duct height 120 mm, pure white Wall connection set, 2-sided, for corner mounting, duct height 120 mm, pure white PLM CC 1220 RW 7218144
1 piece

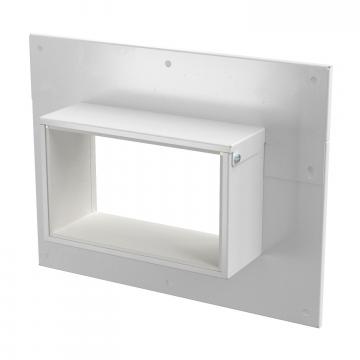

Wall connection collar, 3- and 4-sided, duct height 120 mm, pure white Wall connection collar, 3- and 4-sided, duct height 120 mm, pure white PLM WC 1220 RW 7218132
1 piece

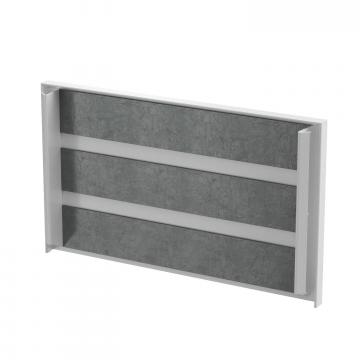

End piece, duct height 120 mm, pure white End piece, duct height 120 mm, pure white PLM EP 1220 RW 7218096
1 piece

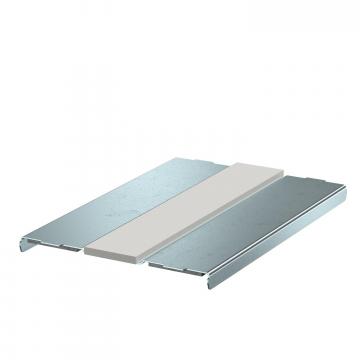

Cover support, duct width 200 mm Cover support, duct width 200 mm PLM LS 200 7218036
1 piece

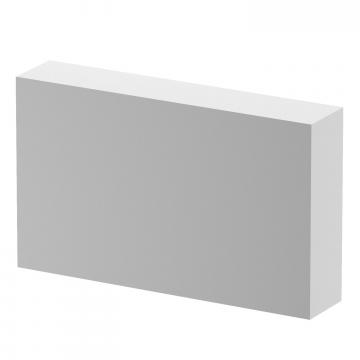

Foam seal, duct height 120 mm Foam seal, duct height 120 mm PLM CO 1220 7218162
1 piece

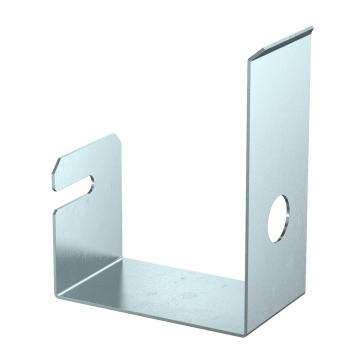

Pressure clip for wall mounting, duct height 120 mm Pressure clip for wall mounting, duct height 120 mm PLM WB 1220 FS 7218156
10 piece

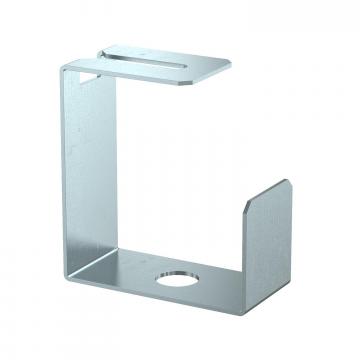

Pressure clip for ceiling mounting, duct height 120 mm Pressure clip for ceiling mounting, duct height 120 mm PLM CB 1220 FS 7218150
10 piece

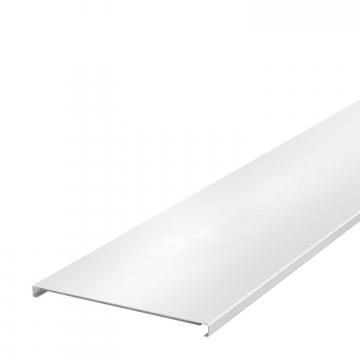

Installation duct cover, duct width 200 mm, pure white Installation duct cover, duct width 200 mm, pure white PLM LI 200 RW 7218026
2 m

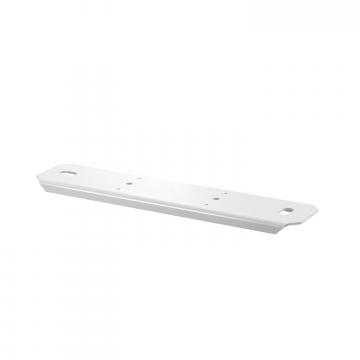

Support, duct width 200 mm, pure white Support, duct width 200 mm, pure white PLM SU 200 RW 7218170
1 piece
Separating retainer 110 FS Separating retainer 110 FS TSG 110 FS 6062122
3 m

Mounting accessories

Products Types Item no. Quantity SSU
Ablation coating PYROCOAT® in a cartridge Ablation coating PYROCOAT® in a cartridge ASX-K 7202310
1 piece
Connector screw Connector screw PLM SF 4x8 3498092
100 piece
Locking bracket RKV3V Locking bracket RKV3V RKV3V 6288700
20 piece
