Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 40 mm, FS 2000 | 100 | 40 | zinc
morepic-1 morepic-2

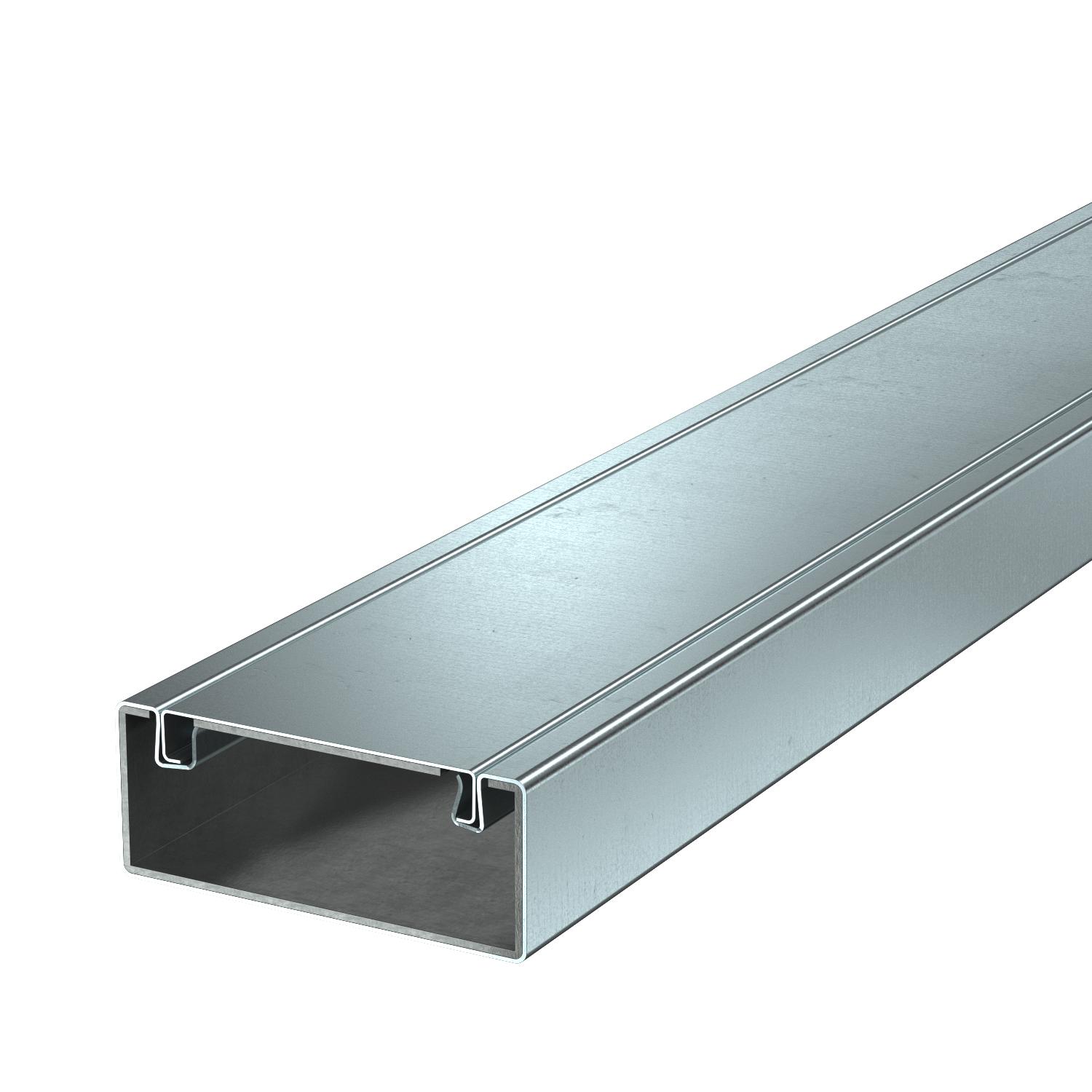

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 40 mm, FS

Item no. 7218004 | EAN 4012197351212

7218004 / PLM D 0410 FS
2000 mm
100 mm
40 mm
zinc
Product description
Product description
Metal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.

Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. Only approved pre-terminated fittings may be used. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.


  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 90
Colour zinc
Cover fastening Miscellaneous

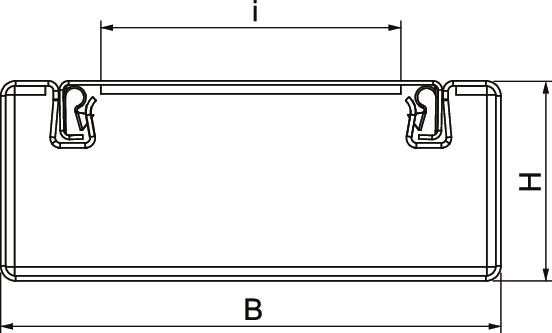

Dimension 40x100x2000
Dimension B 100 mm
Dimension H 40 mm
Dimension i 62 mm
Height 40 mm
Internal height 34 mm
Internal width 94 mm
Jacketing Steel
Length 2000 mm
Material Steel
Number of flammable sides 4
Partitions possible yes
Surface Strip galvanized
Usable cross-section 1780 mm²
Width 100 mm
With perforation yes
All types

All types

Types Length Dimension B Dimension H Colour Item no. Quantity SSU
PLM D 0410 FS 2000 mm 100 mm 40 mm zinc 7218004
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Joint connector set, duct height 40 mm Joint connector set, duct height 40 mm PLM SI 0410 7218028
10 piece

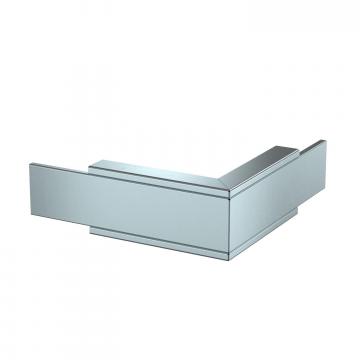

External corner, duct height 40 mm, FS External corner, duct height 40 mm, FS PLM EC 0410 FS 7218038
6 piece

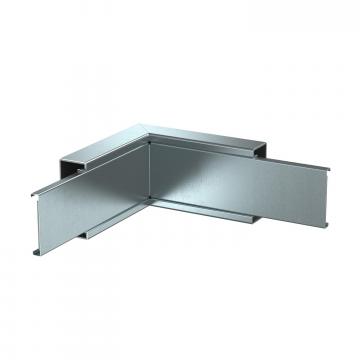

Internal corner, duct height 40 mm, FS Internal corner, duct height 40 mm, FS PLM IC 0410 FS 7218050
6 piece

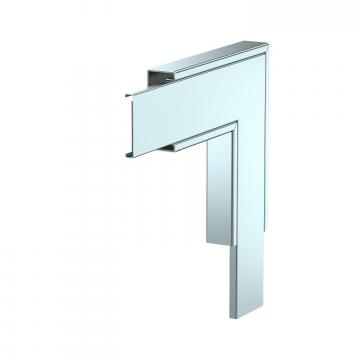

Flat angle, duct height 40 mm, FS Flat angle, duct height 40 mm, FS PLM FA 0410 FS 7218062
1 piece

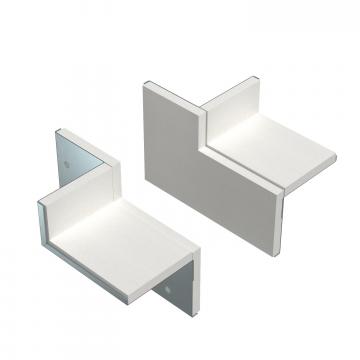

Wall connection set, 2-sided, for corner mounting, duct height 40 mm, FS Wall connection set, 2-sided, for corner mounting, duct height 40 mm, FS PLM CC 0410 FS 7218134
6 piece

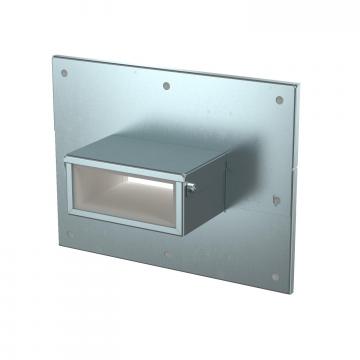

Wall connection collar, 3- and 4-sided, duct height 40 mm, FS Wall connection collar, 3- and 4-sided, duct height 40 mm, FS PLM WC 0410 FS 7218122
4 piece

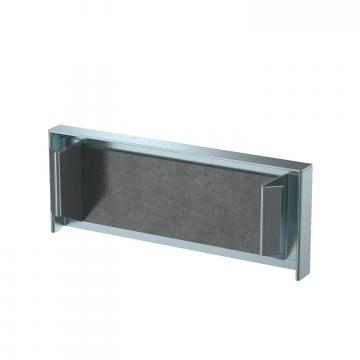

End piece, duct height 40 mm, FS End piece, duct height 40 mm, FS PLM EP 0410 FS 7218086
5 piece
Cover support, duct width 100 mm Cover support, duct width 100 mm PLM LS 100 7218034
10 piece
Foam seal, duct height 40 mm Foam seal, duct height 40 mm PLM CO 0410 7218158
40 piece
Pressure clip for wall mounting, duct height 40 mm Pressure clip for wall mounting, duct height 40 mm PLM WB 0410 FS 7218152
10 piece
Pressure clip for ceiling mounting, duct height 40 mm Pressure clip for ceiling mounting, duct height 40 mm PLM CB 0410 FS 7218146
10 piece
Installation duct cover, duct width 100 mm, FS Installation duct cover, duct width 100 mm, FS PLM LI 100 FS 7218020
2 m
Support, duct width 100 mm, FS Support, duct width 100 mm, FS PLM SU 100 FS 7218164
5 piece
Separating retainer 30 FS Separating retainer 30 FS TSG 30 FS 6062050
3 m

Mounting accessories

Products Types Item no. Quantity SSU
Ablation coating PYROCOAT® in a cartridge Ablation coating PYROCOAT® in a cartridge ASX-K 7202310
1 piece
Connector screw Connector screw PLM SF 4x8 3498092
100 piece
Locking bracket RKV3V Locking bracket RKV3V RKV3V 6288700
20 piece
Downloads

Download

Download

EU declaration of conformity PLM D 0410 FS / 7218004 , 0.11MB , pdf
Download
Declaration of performance PLM D 0410 FS / 7218004 , 0.78MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
