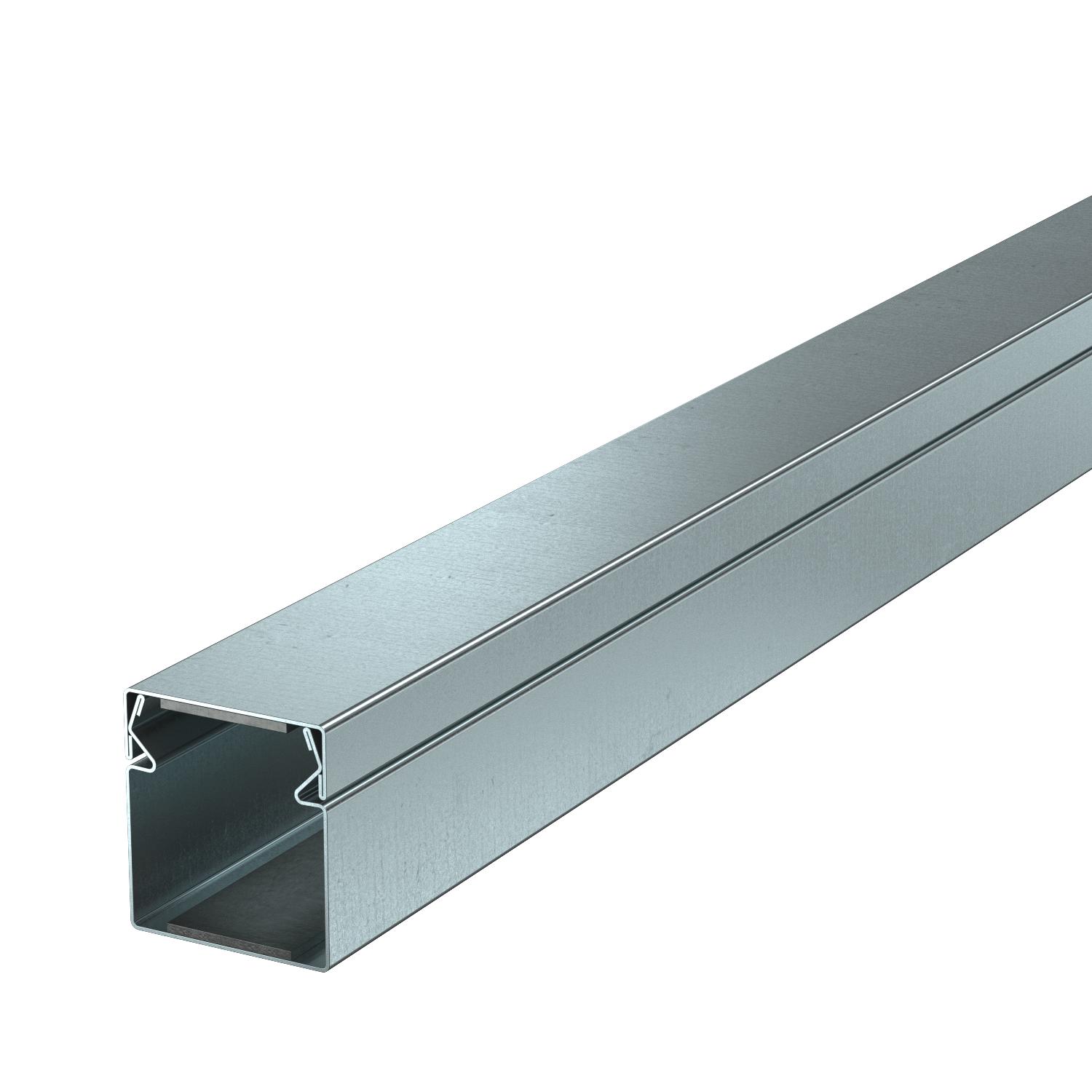

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 44 mm, FS
Item no. 7218000 | EAN 4012197351205
- Product description
-
Product descriptionMetal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.
Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.
-
- Technical data
-
Technical data

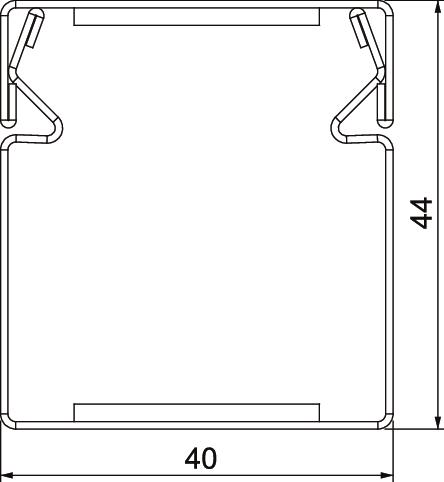

Classification EI − installation duct 90 Colour zinc Cover fastening Miscellaneous Dimension 40x40x2000 Dimension B 40 mm Dimension H 44 mm Height 44 mm Internal height 38 mm Internal width 38 mm Jacketing Steel Length 2000 mm Material Steel Number of flammable sides 4 Partitions possible no Surface Strip galvanized Usable cross-section 1280 mm² Width 40 mm With perforation yes - All types
-
System accessories
Products Types Item no. Quantity SSU

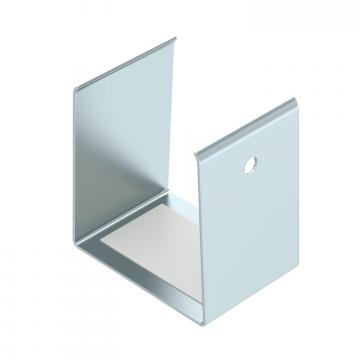

Joint connector, duct height 44 mm
PLM SI 0404 7218027 50 piece
Foam seal, duct height 40 mm
PLM CO 0410 7218158 40 piece - Downloads
-
