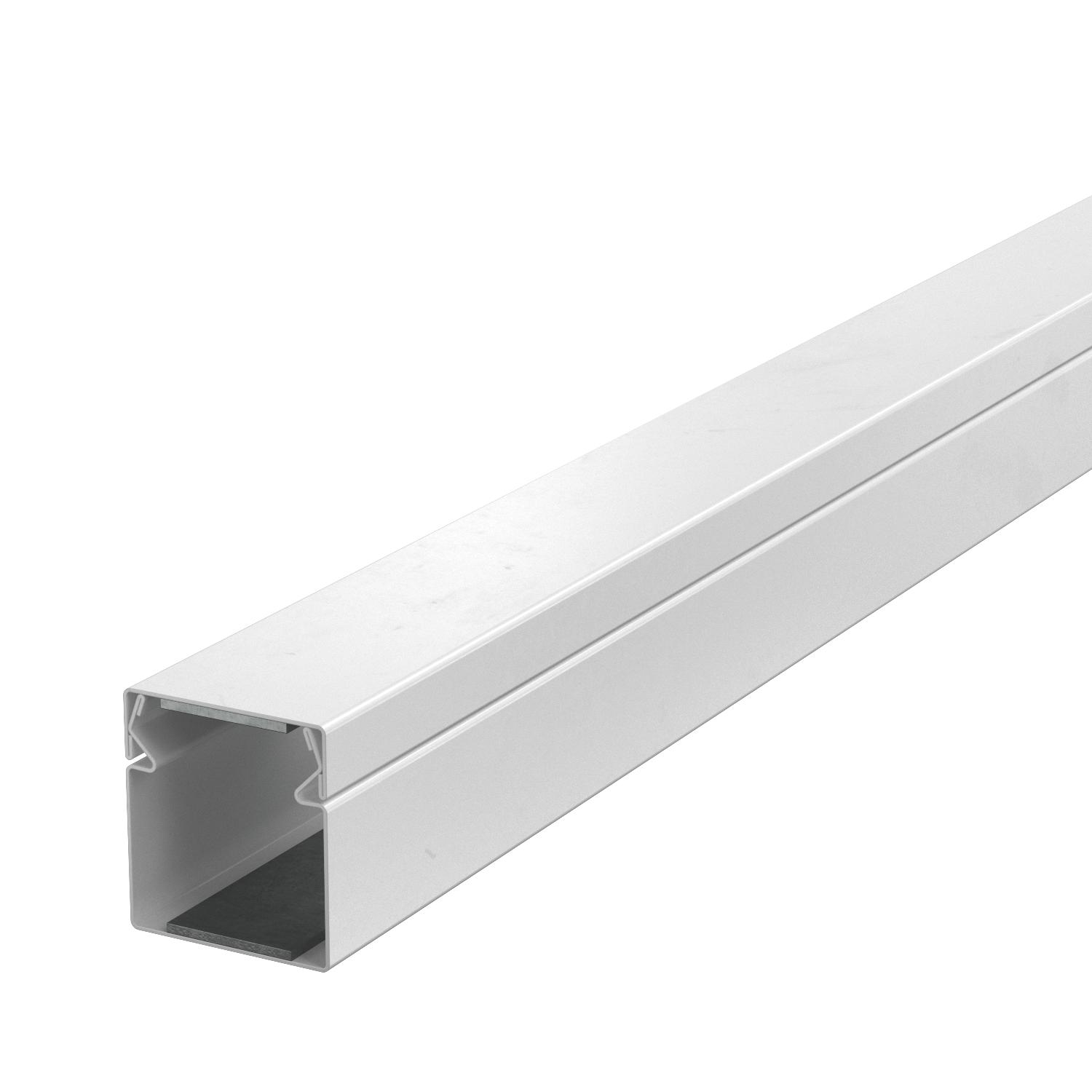

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 44 mm, pure white

Item no. 7218002 | EAN 4012197351281

7218002 / PLM D 0404 RW
2000 mm
40 mm
44 mm
Pure white; RAL 9010
Product description
Product description
Metal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.

Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 90
Colour Pure white; RAL 9010
Cover fastening Miscellaneous

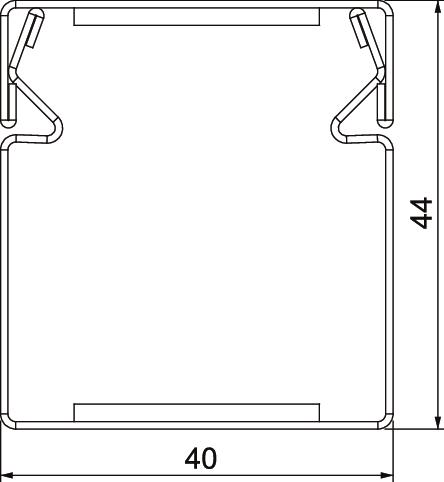

Dimension 40x40x2000
Dimension B 40 mm
Dimension H 44 mm
Height 44 mm
Internal height 38 mm
Internal width 38 mm
Jacketing Steel
Length 2000 mm
Material Steel
Number of flammable sides 4
Partitions possible no
Surface Powder-coated
Usable cross-section 1280 mm²
Width 40 mm
With perforation yes
All types

All types

Types Length Dimension B Dimension H Colour Item no. Quantity SSU
PLM D 0404 RW 2000 mm 40 mm 44 mm Pure white; RAL 9010 7218002
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU

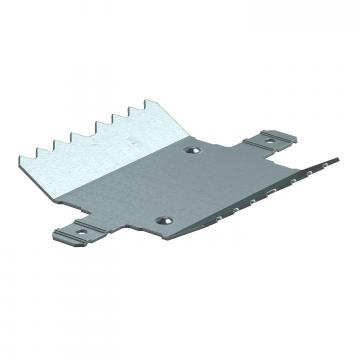

Joint connector, duct height 44 mm Joint connector, duct height 44 mm PLM SI 0404 7218027
50 piece

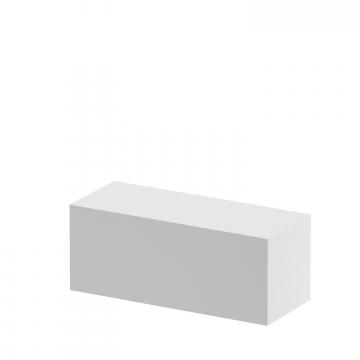

Foam seal, duct height 40 mm Foam seal, duct height 40 mm PLM CO 0410 7218158
40 piece
Downloads

Download

EU declaration of conformity PLM D 0404 RW / 7218002 , 0.11MB , pdf
Download

No invitation to tender text is available for this product.
