Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 80 mm, pure white 2000 | 100 | 80 | Pure white; RAL 9010
morepic-1

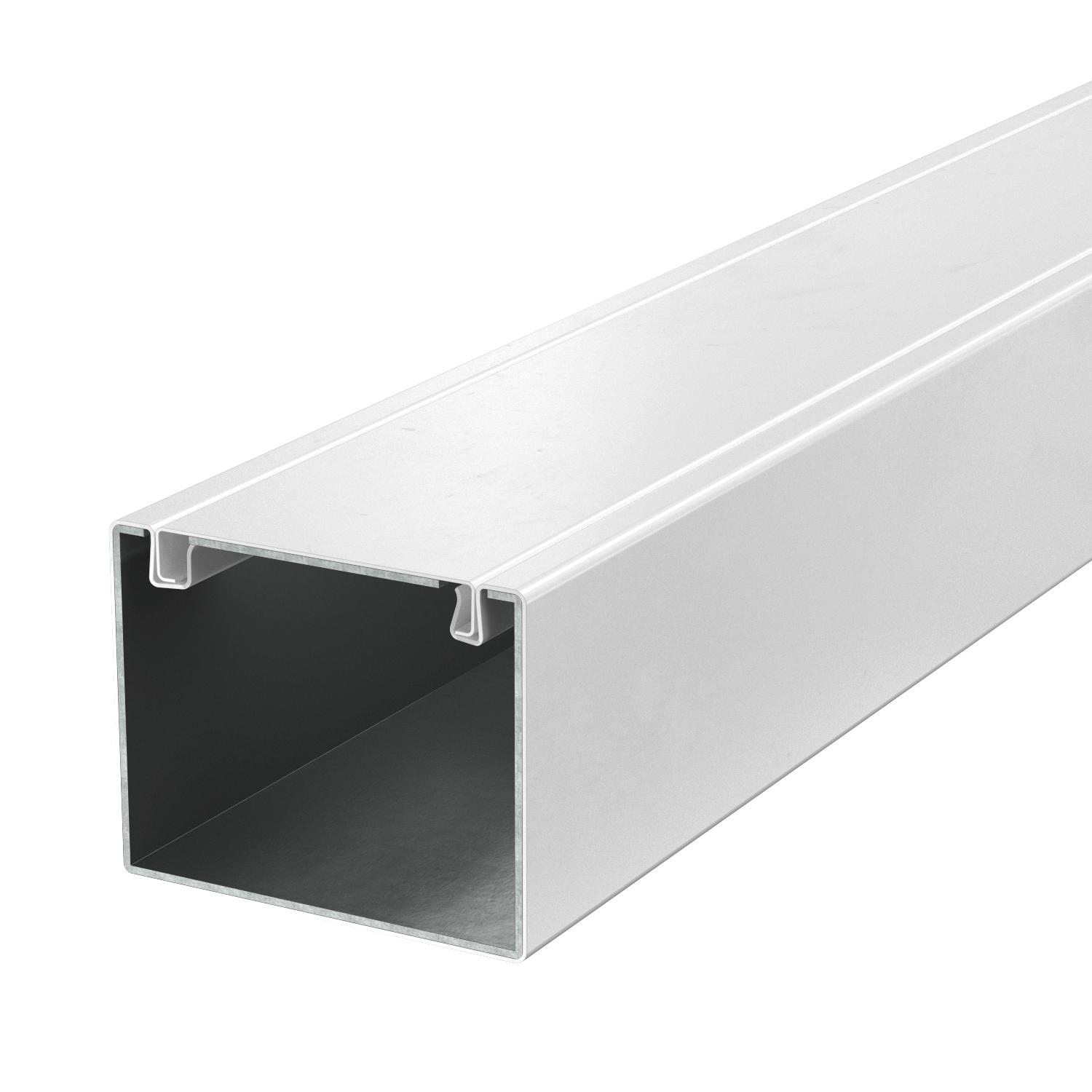

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 80 mm, pure white

Item no. 7218010 | EAN 4012197351304

7218010 / PLM D 0810 RW
2000 mm
100 mm
80 mm
Pure white; RAL 9010
Product description

Product description

Metal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.

Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. Only approved pre-terminated fittings may be used. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.


  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 90
Colour Pure white; RAL 9010
Cover fastening Miscellaneous
Dimension 80x100x2000
Dimension i 62 mm
Jacketing Steel
Material Steel
Number of flammable sides 4
Partitions possible yes
Surface Powder-coated
Usable cross-section 5180 mm²
With perforation yes

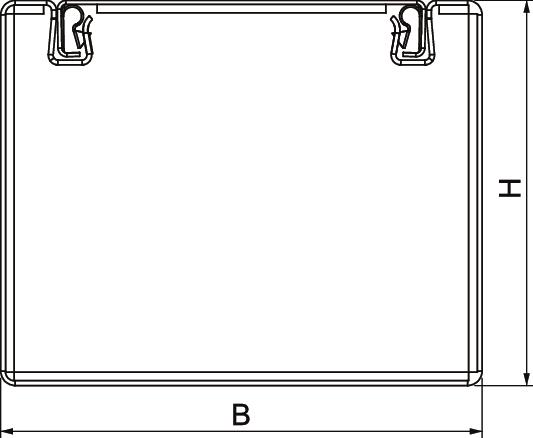

Dimensions

Dimension B 100 mm
Dimension H 80 mm
Height 80 mm
Internal height 74 mm
Internal width 94 mm
Length 2000 mm
Width 100 mm
All types

All types

Types Length Dimension B Dimension H Colour Item no. Quantity SSU
PLM D 0810 RW 2000 mm 100 mm 80 mm Pure white; RAL 9010 7218010
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Joint connector set, duct height 80 mm Joint connector set, duct height 80 mm PLM SI 0810 7218030
1 piece

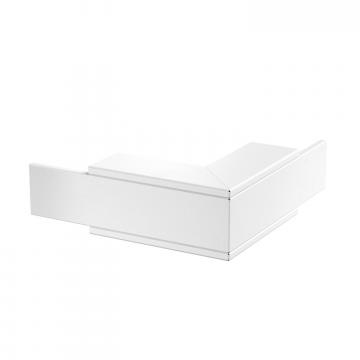

External corner, duct height 80 mm, pure white External corner, duct height 80 mm, pure white PLM EC 0810 RW 7218044
1 piece

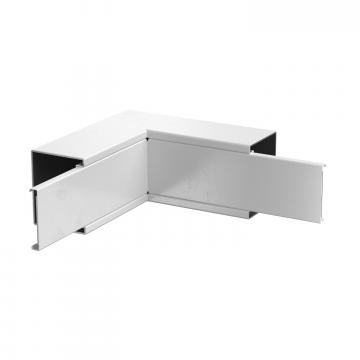

Internal corner, duct height 80 mm, pure white Internal corner, duct height 80 mm, pure white PLM IC 0810 RW 7218056
1 piece

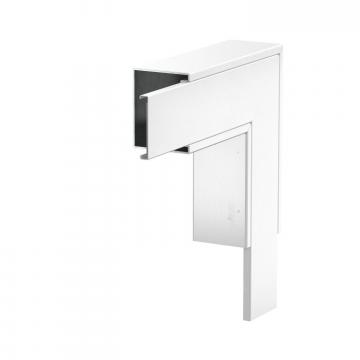

Flat angle, duct height 80 mm, pure white Flat angle, duct height 80 mm, pure white PLM FA 0810 RW 7218068
1 piece
Vertical bend, rising, duct height 80 mm, pure white Vertical bend, rising, duct height 80 mm, pure white PLM BR 0810 RW 7218116
1 piece

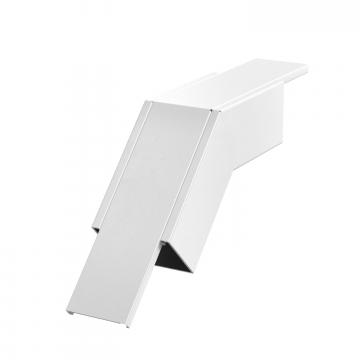

Vertical bend, falling, duct height 80 mm, pure white Vertical bend, falling, duct height 80 mm, pure white PLM BF 0810 RW 7218108
1 piece

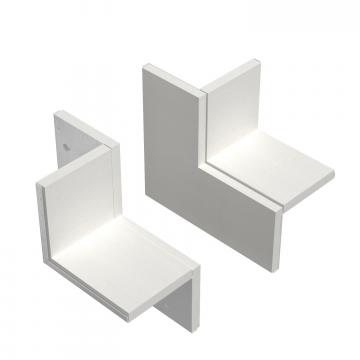

Wall connection set, double-sided, for corner mounting, duct height 80 mm, pure white Wall connection set, double-sided, for corner mounting, duct height 80 mm, pure white PLM CC 0810 RW 7218140
1 piece

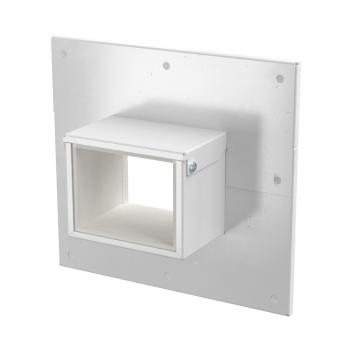

Wall connection collar, 3- and 4-sided, duct height 80 mm, pure white Wall connection collar, 3- and 4-sided, duct height 80 mm, pure white PLM WC 0810 RW 7218128
1 piece

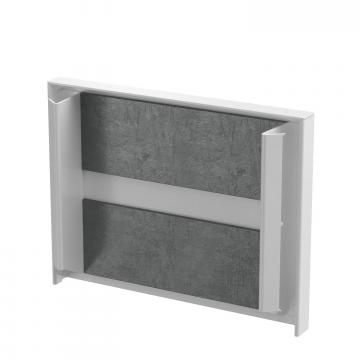

End piece, duct height 80 mm, pure white End piece, duct height 80 mm, pure white PLM EP 0810 RW 7218092
1 piece
Cover support, duct width 100 mm Cover support, duct width 100 mm PLM LS 100 7218034
1 piece
Foam seal, duct height 80 mm Foam seal, duct height 80 mm PLM CO 0810 7218160
1 piece
Pressure clip for wall mounting, duct height 80 mm Pressure clip for wall mounting, duct height 80 mm PLM WB 0810 FS 7218154
10 piece
Pressure clip for ceiling mounting, duct height 80 mm Pressure clip for ceiling mounting, duct height 80 mm PLM CB 0810 FS 7218148
10 piece

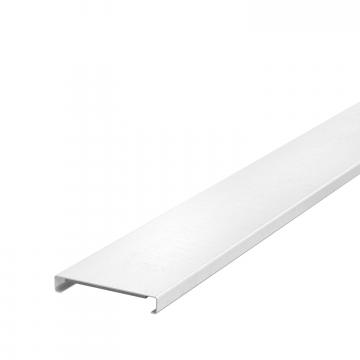

Installation duct cover, duct width 100 mm, pure white Installation duct cover, duct width 100 mm, pure white PLM LI 100 RW 7218022
2 m

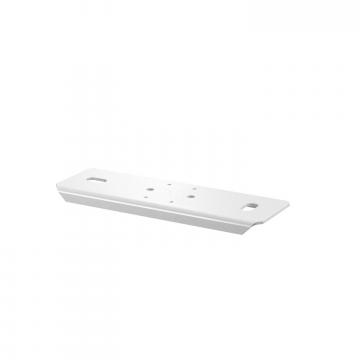

Support, duct width 100 mm, pure white Support, duct width 100 mm, pure white PLM SU 100 RW 7218166
1 piece
Separating retainer 60 FS Separating retainer 60 FS TSG 60 FS 6062068
3 m

Mounting accessories

Products Types Item no. Quantity SSU
Ablation coating PYROCOAT® in a cartridge Ablation coating PYROCOAT® in a cartridge ASX-K 7202310
1 piece
Connector screw Connector screw PLM SF 4x8 3498092
100 piece
Locking bracket RKV3V Locking bracket RKV3V RKV3V 6288700
20 piece
Downloads

Download

Download

Download

Download
Download

No invitation to tender text is available for this product.
