Installation unit for series-mounted devices, 70 x 170 mm 500 | Pure white; RAL 9010

Installation unit for series-mounted devices, 70 x 170 mm

Item no. 6288328 | EAN 4012196691531

Item no. / Types

Length	500 mm

Colour	Pure white; RAL 9010

Product description

Product description

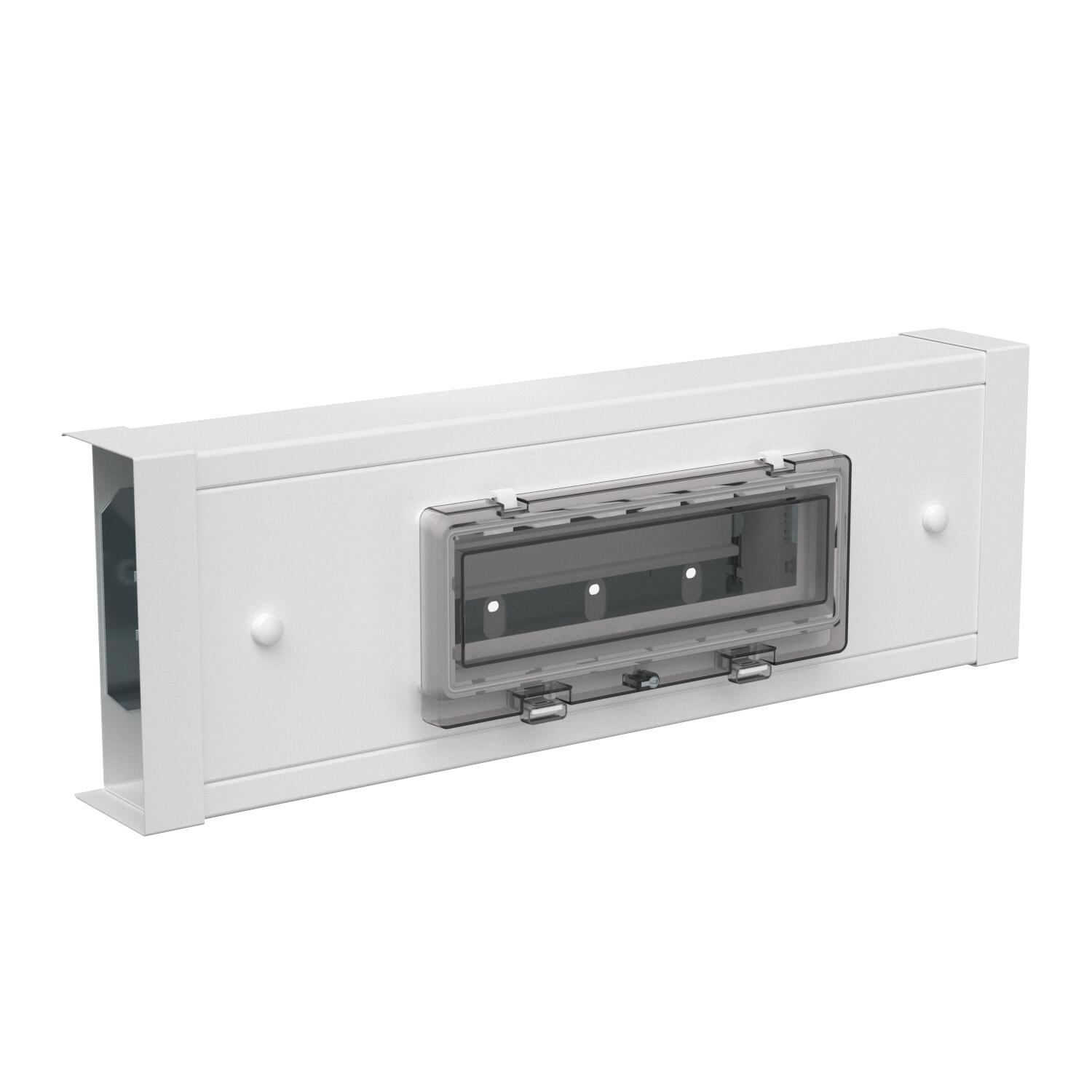

Installation unit made of sheet steel for installation in the trunking section of device installation trunking of the corresponding system size.

Acceptance of series-mounted devices with a total width of 12 PUs on hat rails. Incl. N and PE rails with screwless terminals. The foldable transparent hood can be locked.

Technical data

Technical data

Cable entry	yes
Colour	Pure white; RAL 9010

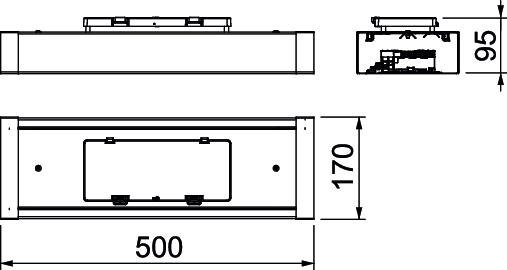

Dimension	95x170x500
DIN rail	yes
Extension option	no
Halogen-free	yes
Height	95 mm
Length	500 mm
Material	Steel

Number of rows	1
Number of units	12
Suitable for duct depth	70
Surface	Powder-coated
Transparent lid	yes
Type of cover	Transparent
Width	170 mm
With mounting plate	no

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
IKR12RW70170	500 mm	Pure white; RAL 9010	6288328	piece	1 piece
IKR12RW90170	500 mm	Pure white; RAL 9010	6288330	piece	1 piece
IKR12RW70210	500 mm	Pure white; RAL 9010	6288334	piece	1 piece
IKR12RW90210	500 mm	Pure white; RAL 9010	6288336	piece	1 piece
