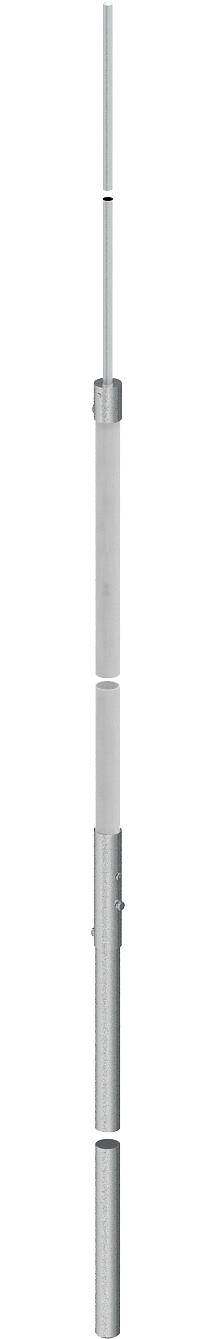

Insulated air-termination rod

Item no. 5408942 | EAN 4012195670056

Product description

Product description

• For isolated creation of air-termination systems
• Suitable for isFang air-termination rod stand, type isFang 3B-100/150
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• For installation on the building structure with isFang support
• Fastening of the OBO isCon® conductor possible using accessories
• Suitable for externally routed isCon® conductors
• Stainless steel standpipe (V2A)
• Centre section made of fibre-glass reinforced plastic (GRP)
• Aluminium air-termination tip
  • Lightning current-tested
Technical data

Technical data

Colour Light grey
Connection Round conductor
Dimension 4000mm
Dimension A 1240 mm
Dimension B 1000 mm
Dimension d min. 40 mm
Dimension H 1500 mm
High voltage-resistant, insulated version yes
Length 4000 mm
Material Fibre-glass-reinforced plastic
Version for Air-termination rod
All types

All types

Types Length Item no. Quantity SSU
isFang 4000 4000 mm 5408942
1 piece
isFang 4000 AL 4000 mm 5408943
1 piece
isFang 6000 6000 mm 5408946
1 piece
isFang 6000 AL 6000 mm 5408947
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Concrete base for FangFix system, min. 16 kg Concrete base for FangFix system, min. 16 kg F-FIX-S16 5403227
1 piece
Base for FangFix system 16 kg for mounting the isFang tripod Base for FangFix system 16 kg for mounting the isFang tripod F-FIX-B16 3B 5403238
10 piece
isFang tripod isFang tripod isFang 3B-100 AL 5408966
1 piece
isFang-3B threaded rod isFang-3B threaded rod isFang 3B-G2 5408972
3 piece
