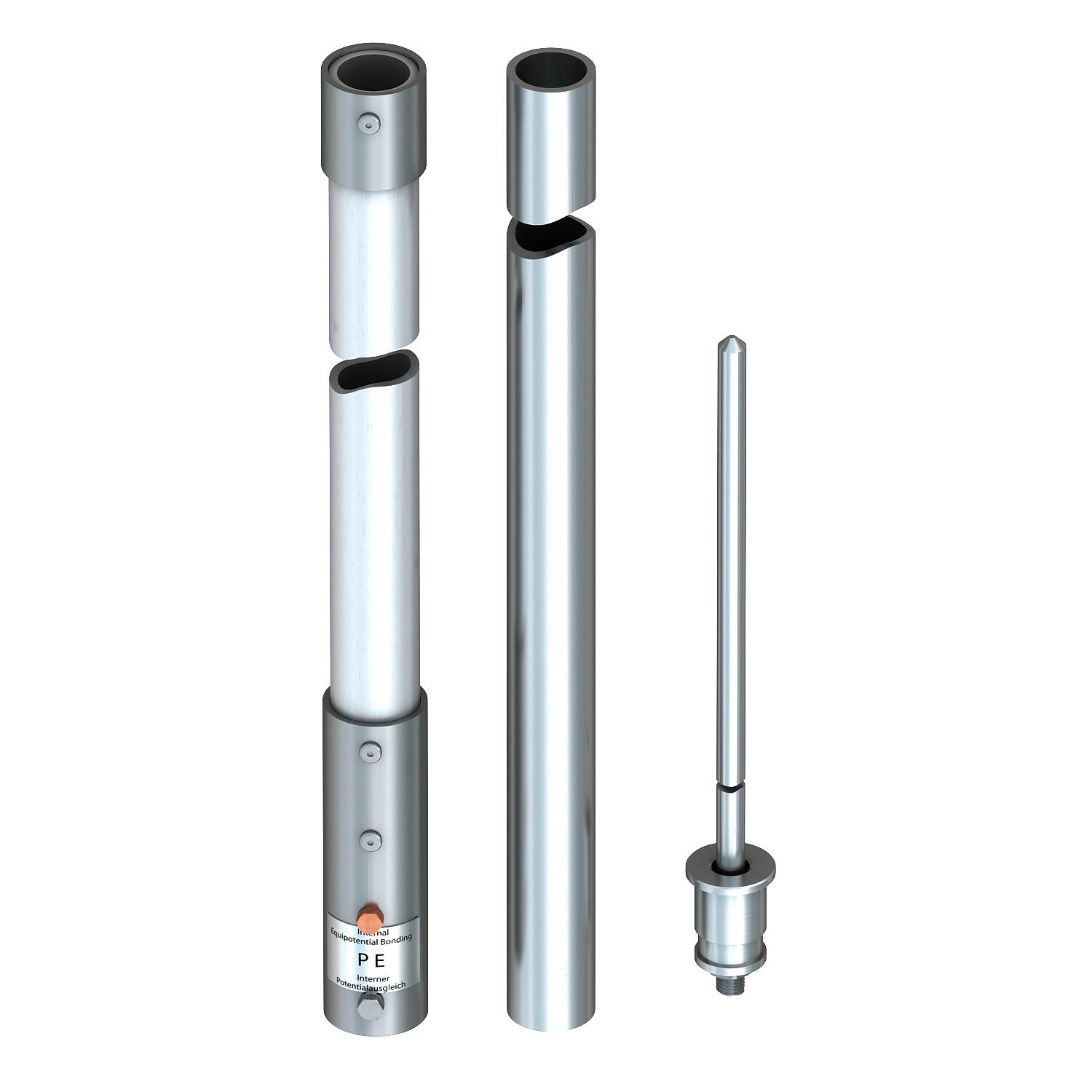

Insulated air-termination rod for inner-routed isCon® conductor

Item no. 5408854 | EAN 4012196647842

Product description

Product description

• For routing OBO isCon® conductors in pipes
• For installation on the building structure with isFang support
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Tested according to VDE V 0185-561-8 (IEC TS 62561-8)
• Aluminium standpipe and air-termination tip
• Centre section made of fibre-glass reinforced plastic (GRP)
  • Lightning current-tested
Technical data

Technical data

Connection Round conductor

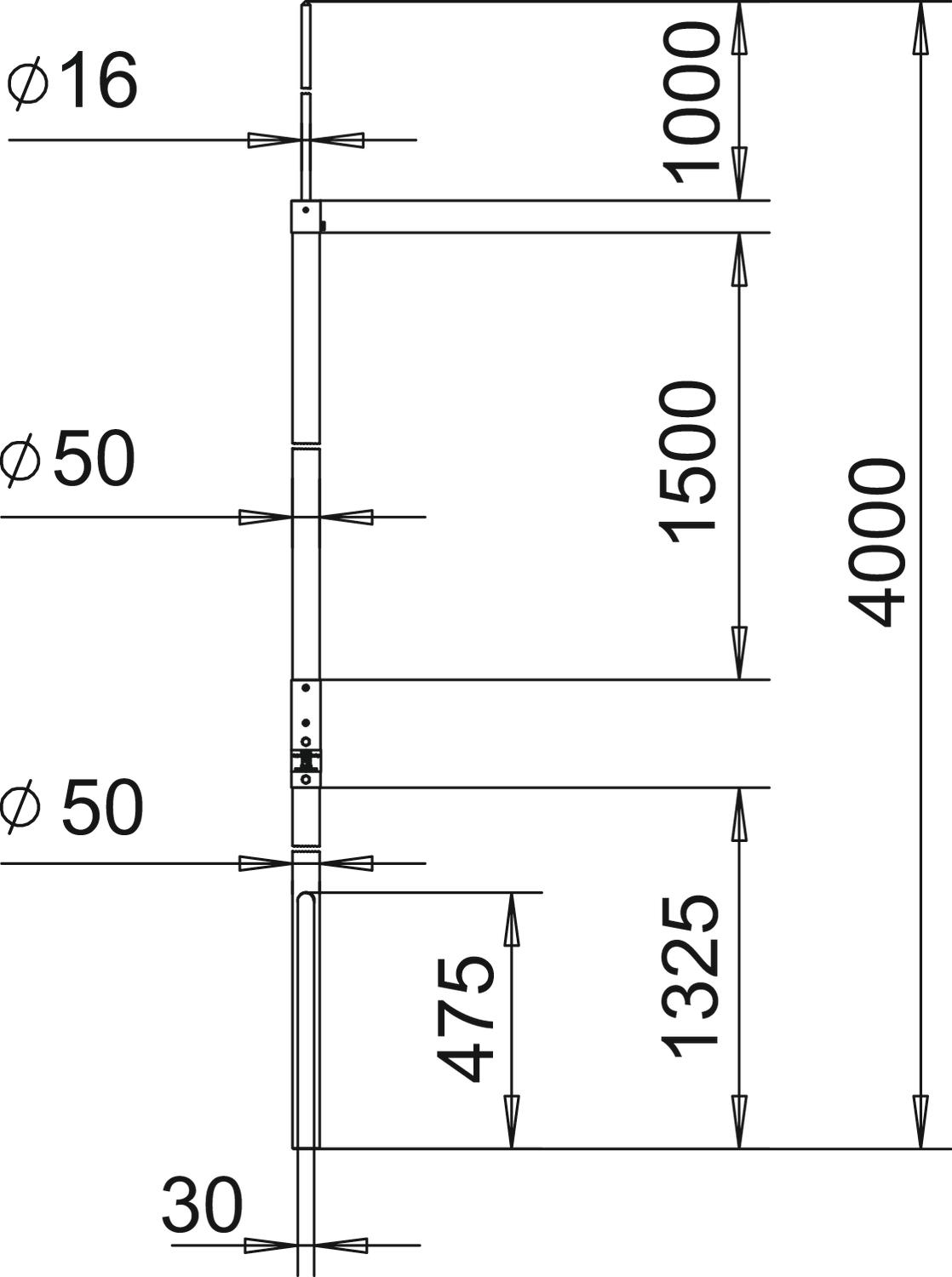

Dimension 4000mm
Dimension A 1325 mm
Dimension B 1000 mm
Dimension d min. 50 mm
Dimension H 1500 mm
Dimension L 4000 mm
High voltage-resistant, insulated version yes
Length 4000 mm
Material Fibre-glass-reinforced plastic
Version for Air-termination rod
All types

All types

Types Length Item no. Quantity SSU
isFang IN L4 4000 mm 5408854
1 piece
isFang IN L6 6000 mm 5408856
1 piece
isFang IN L8 8000 mm 5408858
1 piece
isFang IN L10 10000 mm 5408860
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Concrete base for FangFix system, min. 16 kg Concrete base for FangFix system, min. 16 kg F-FIX-S16 5403227
1 piece
Base for FangFix system 16 kg for mounting the isFang tripod Base for FangFix system 16 kg for mounting the isFang tripod F-FIX-B16 3B 5403238
10 piece
isCon® conductor, Professional black isCon® conductor, Professional black isCon Pro 75 SW 5408008
100 m
isCon® connection element isCon® connection element isCon connect 5408022
2 piece
Connection element for installation in the insulated interception rod isFang IN Connection element for installation in the insulated interception rod isFang IN isCon IN connect 5408024
15 piece
Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod isCon IN PAE 5408031
15 piece
isFang tripod isFang tripod isFang 3B-100 5408968
1 piece
