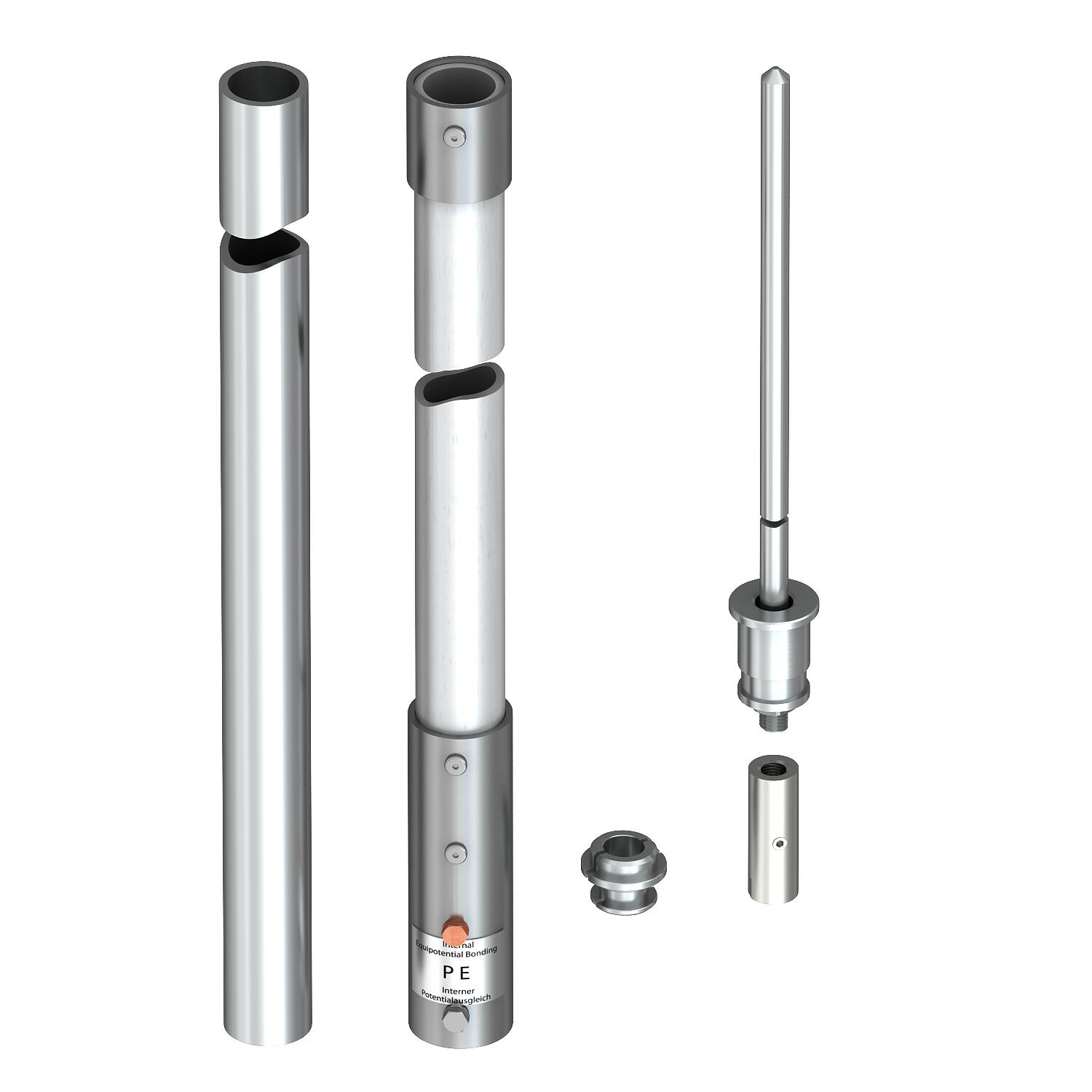

Insulated air-termination rod for inner-routed isCon conductor

Item no. 5408868 | EAN 4012196219391

Product description

Product description

• For installation of the OBO isCon® Pro+ conductor in the pipe

• For mounting on the building structure with isFang support

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4

• Inclusive connection element (type isCon IN connect)

• Inclusive potential connection (type isCon In PAE)

• Aluminium standpipe and air-termination tip

• Centre section made of fibre-glass reinforced plastic (GRP)
  • Lightning current-tested
Technical data

Technical data

Connection Round conductor

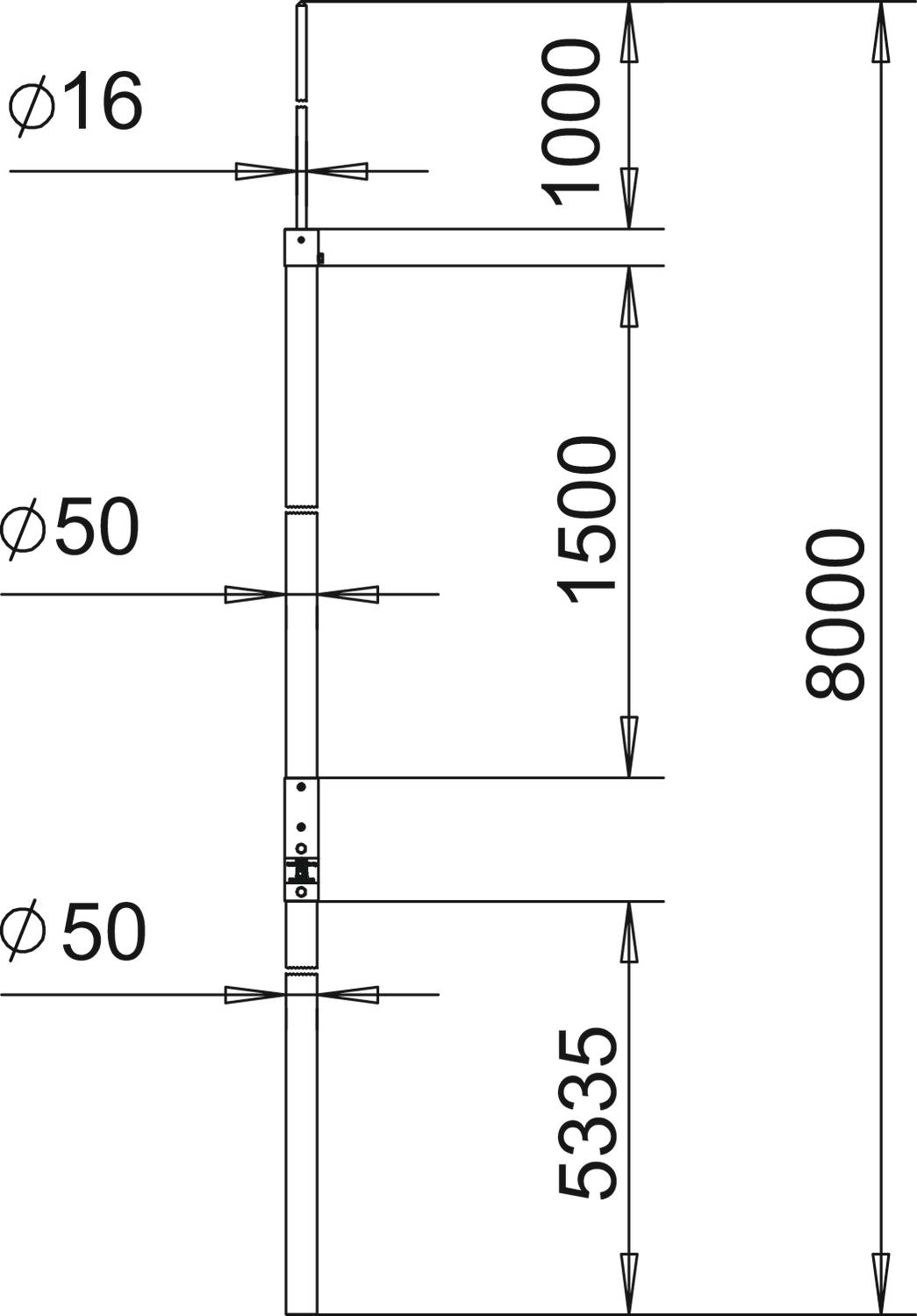

Dimension 8000mm
Dimension A 5335 mm
Dimension B 1000 mm
Dimension d min. 50 mm
Dimension H 1500 mm
Dimension L 8000 mm
High voltage-resistant, insulated version yes
Length 8000 mm
Material Fibre-glass-reinforced plastic
Version for Air-termination rod
All types

All types

Types Length Item no. Quantity SSU
isFang IN 8000 8000 mm 5408868
1 piece
isFang IN 10000 10000 mm 5408870
1 piece
isFang IN 4000 4000 mm 5408934
1 piece
isFang IN 6000 6000 mm 5408936
1 piece
