Insulated air-termination rod for inner-routed isCon conductor with side exit

Item no. 5408888 | EAN 4012196219414

Product description

Product description

• For installation of the OBO isCon® Pro+ conductor in the pipe

• With side conductor outlet matching isFang air-termination rod stand with side outlet, type isFang 3B-A

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4

• Inclusive connection element (type isCon IN connect)

• Inclusive potential connection (type isCon In PAE)

• Aluminium standpipe and air-termination tip

• Centre section made of fibre-glass reinforced plastic (GRP)
  • Lightning current-tested
Technical data

Technical data

Connection Round conductor

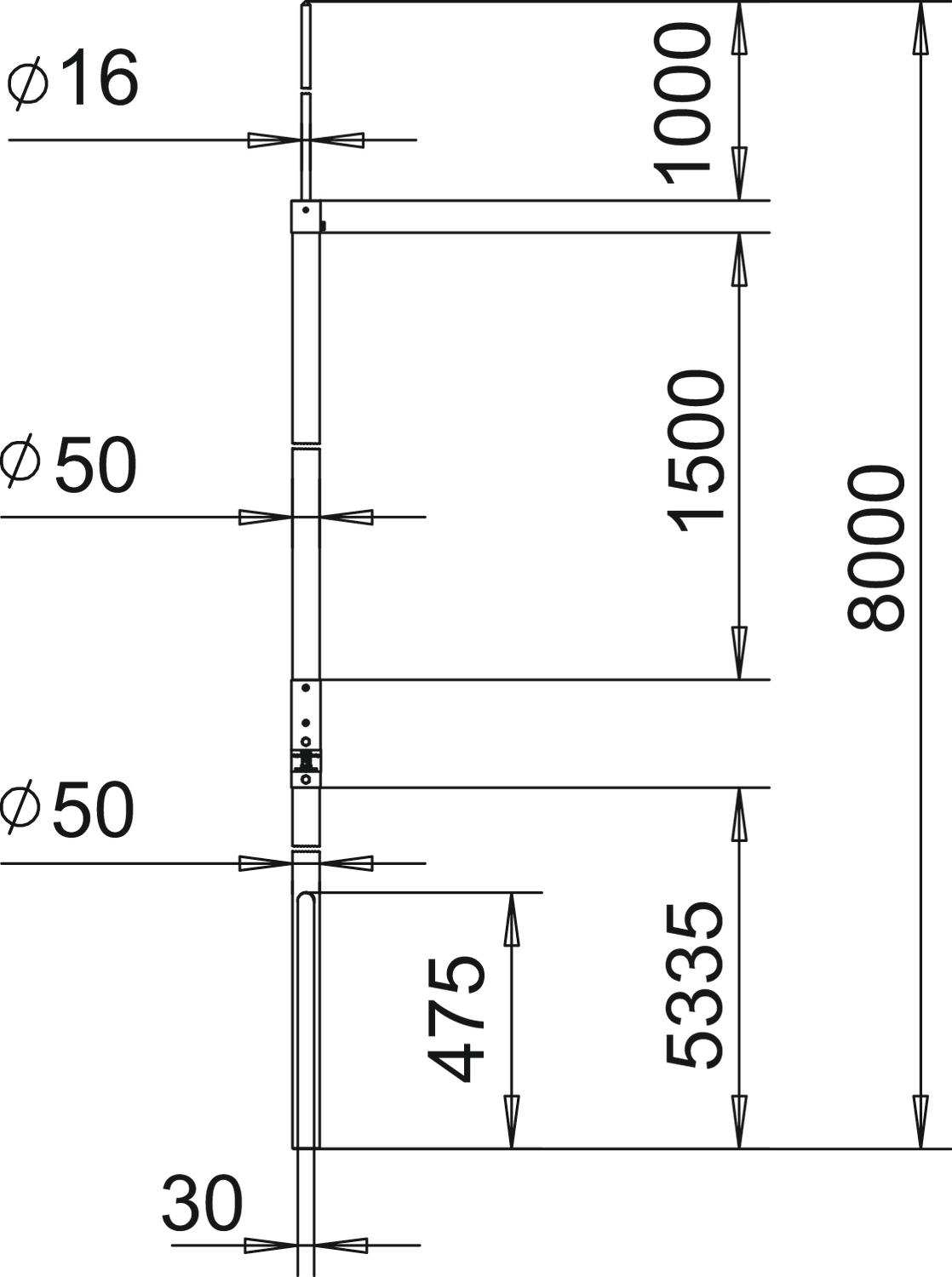

Dimension 8000mm
Dimension A 5335 mm
Dimension B 1000 mm
Dimension d min. 50 mm
Dimension H 1500 mm
Dimension L 8000 mm
High voltage-resistant, insulated version yes
Length 8000 mm
Material Fibre-glass-reinforced plastic
Version for Air-termination rod
All types

All types

Types Length Item no. Quantity SSU
isFang IN-A 8000 8000 mm 5408888
1 piece
isFang IN-A10000 10000 mm 5408890
1 piece
isFang IN-A 4000 4000 mm 5408938
1 piece
isFang IN-A 6000 6000 mm 5408940
1 piece
