- Product description
-

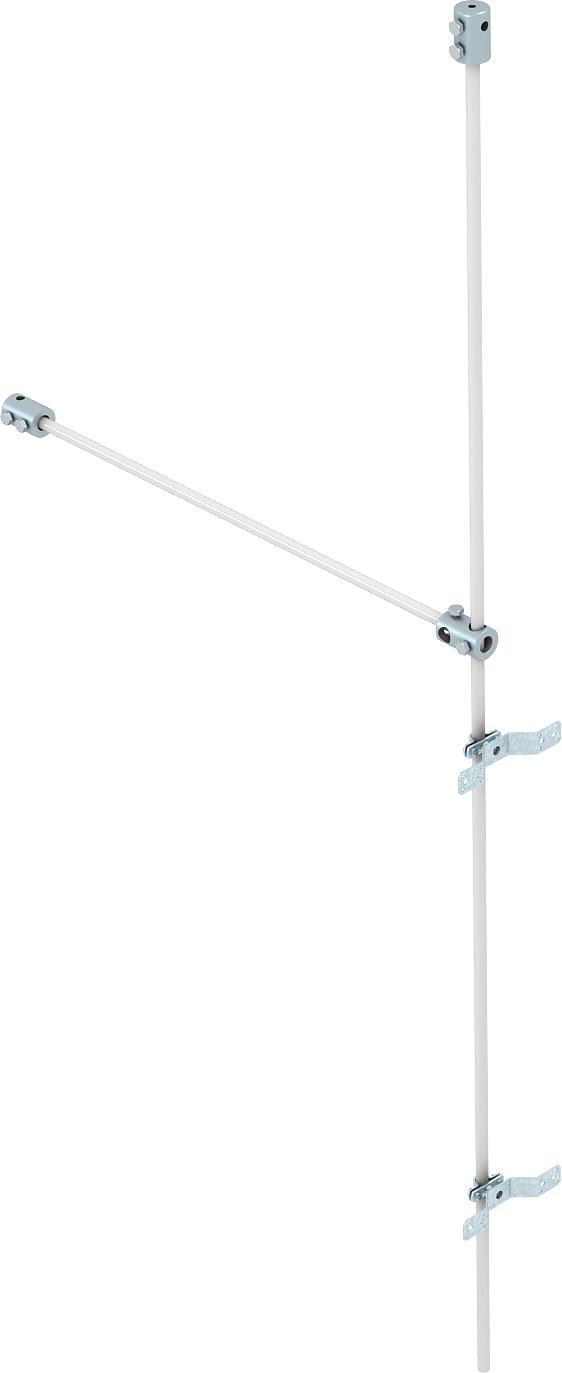

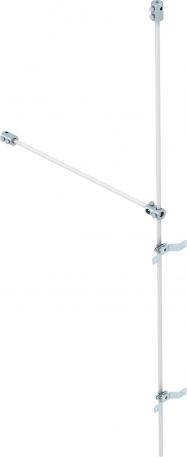

Product description3-corner fastening for an insulated air-termination unit at the separating distance s.
• Mounting on walls and roof structures with two fastening plates
• For maintenance of the separation distance to electrically conductive parts
according to VDE 0185-305-3 (IEC 62305-3)
• Acceptance of air-termination rods and round conductors with 8, 16 and 20 mm diameter
• UV-resistant and weatherproof
• Continuous temperature range -50 °C to +100°C
• Material factor km = 0.7
- Technical data
-
Technical data

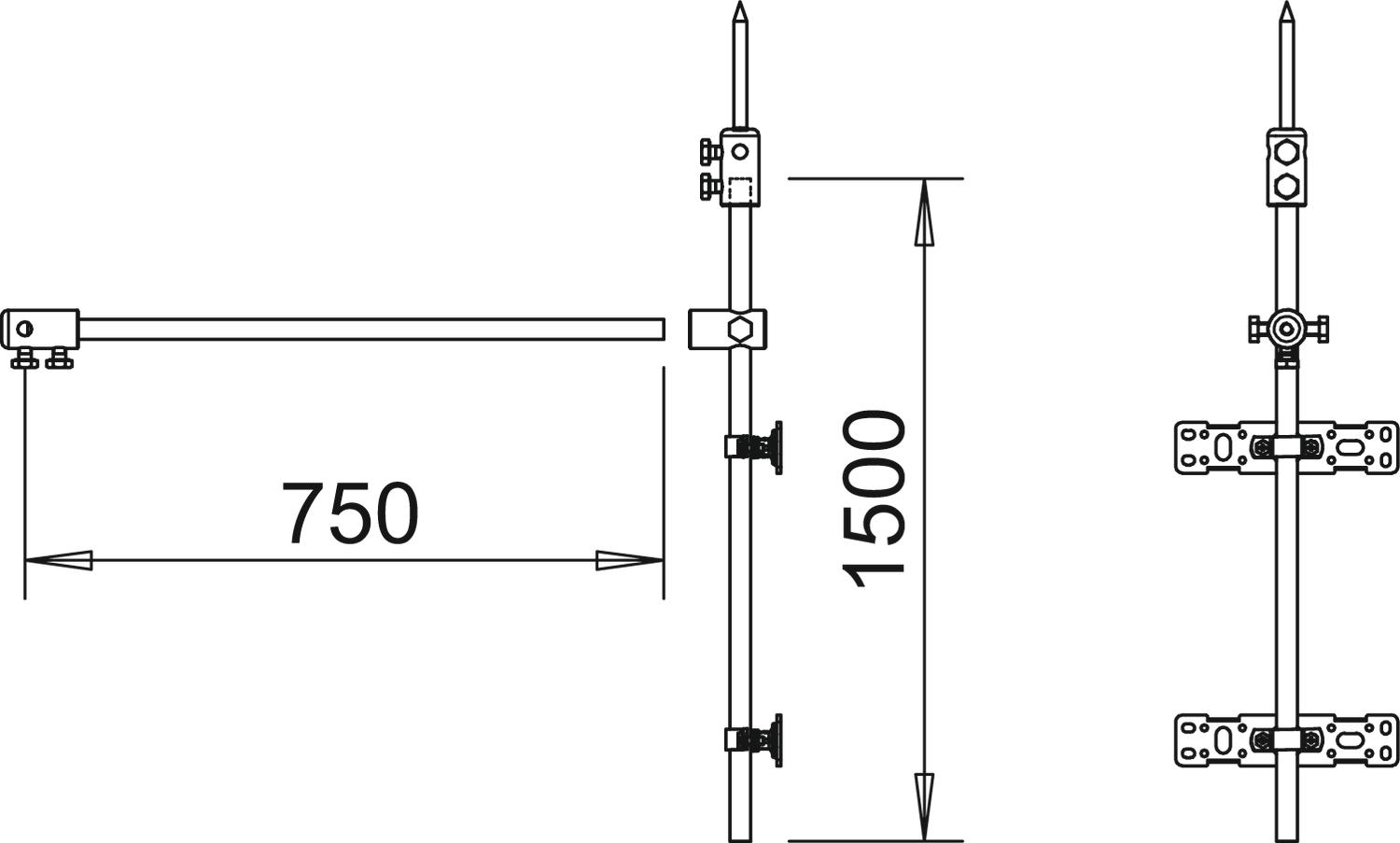

Dimension 1500x750x175 Dimension d min. 16 mm Dimension H 1500 mm Dimension L 750 mm - All types
- Downloads
-
Data sheet 101 3-ES-16 / 5408976 , 0.13MB , pdfEU declaration of conformity 101 3-ES-16 / 5408976 , 0.06MB , pdfREACH Declaration of conformity 101 3-ES-16 / 5408976 , 0.27MB , pdfRoHS Declaration of conformity 101 3-ES-16 / 5408976 , 0.12MB , pdf
