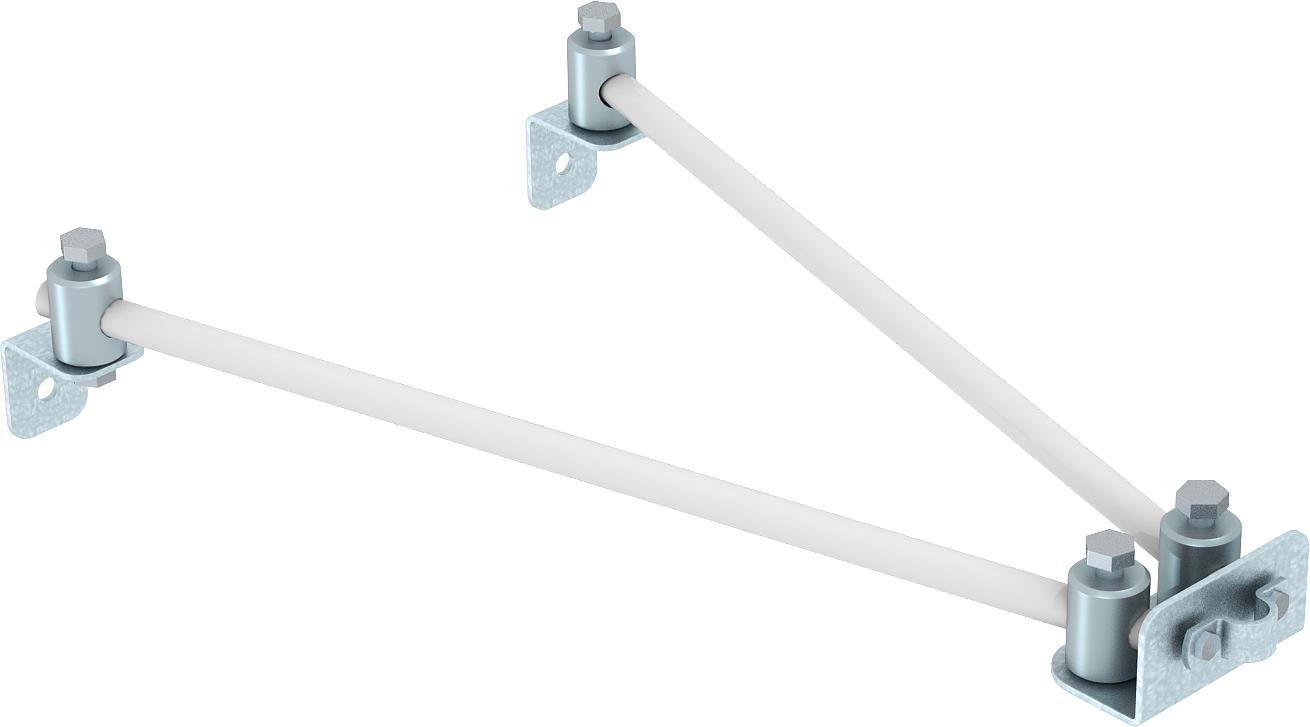

Insulated lightning protection set, V fastening

Item no. 5408978 | EAN 4012195613336

5408978 / 101 VS-16
16 mm
750 mm
Product description

Product description

V fastening for an insulated air-termination unit at the separating distance s.


• Mounting on walls and roof structures with two wall connection brackets

• For maintenance of the separation distance to electrically conductive parts

according to VDE 0185-305-3 (IEC 62305-3)

• Acceptance of air-termination rods and round conductors with 8, 16 and 20 mm diameter

• UV-resistant and weatherproof

• Continuous temperature range -50 °C to +100°C

• Material factor km = 0.7
Technical data

Technical data

Dimension 810x175x83
Dimension d min. 16 mm
Dimension L 750 mm
All types

All types

Types Dimension d min. Dimension L Item no. Quantity SSU
101 VS-16 16 mm 750 mm 5408978
1 piece
