Insulated lightning protection set, VRS fastening
Item no. 5408982 | EAN 4012195613350
- Product description
-

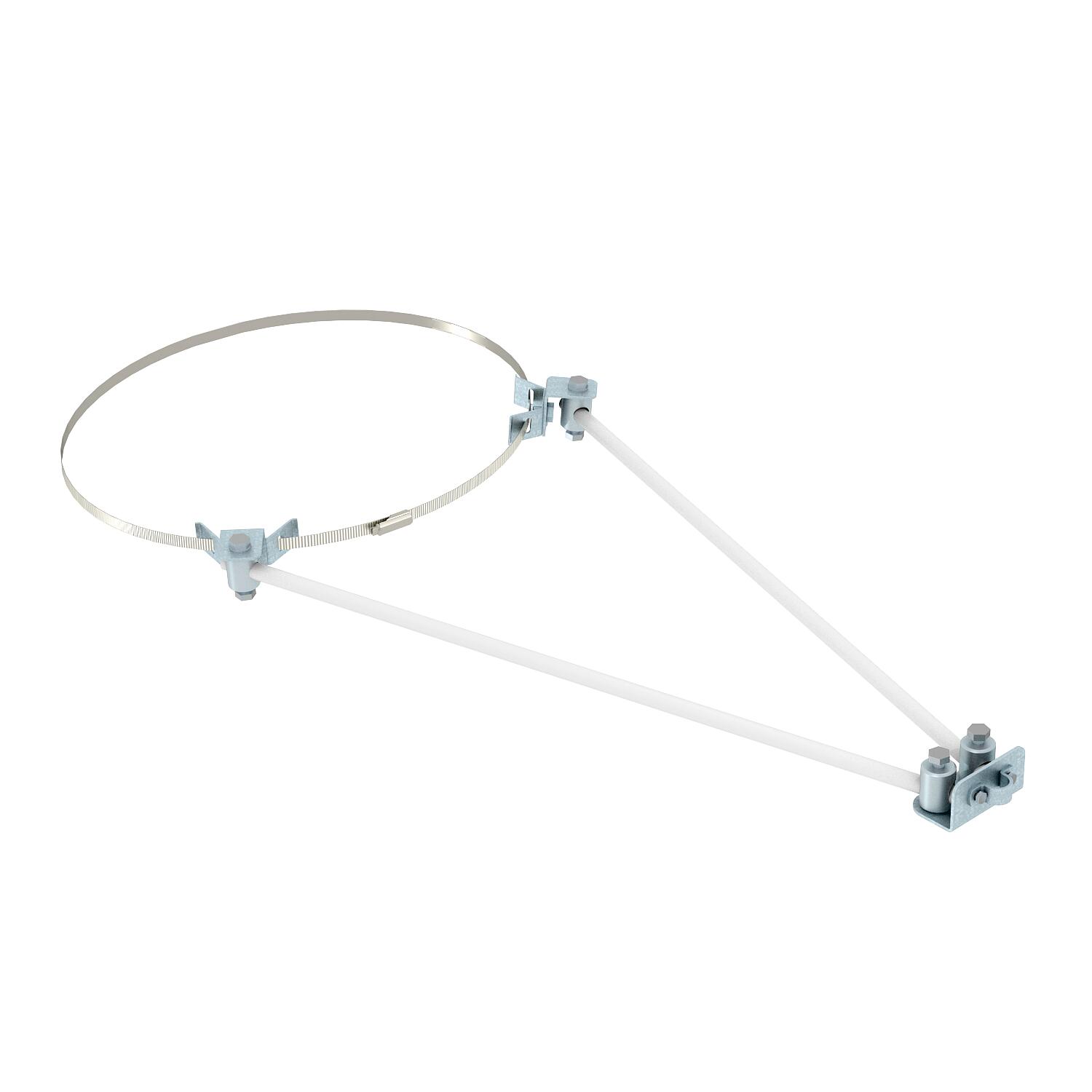

Product descriptionIso-Combi set, comprising multiple components to maintain the separation distance to electrically conductive parts according to VDE 0185-305-3 (IEC 62305-3) for insulated air-termination devices. To accept interception rods and round cables of 8, 16 and 20 mm diameter. Pipe V fastening, for mounting with tightening strap on pipes with Ø ≤ 600 mm. Including tension jack. UV-stabilised, weatherproof, continuous temperature range -50°C to + 100°C. Material factor km= 0.7.
- Technical data
-
Technical data

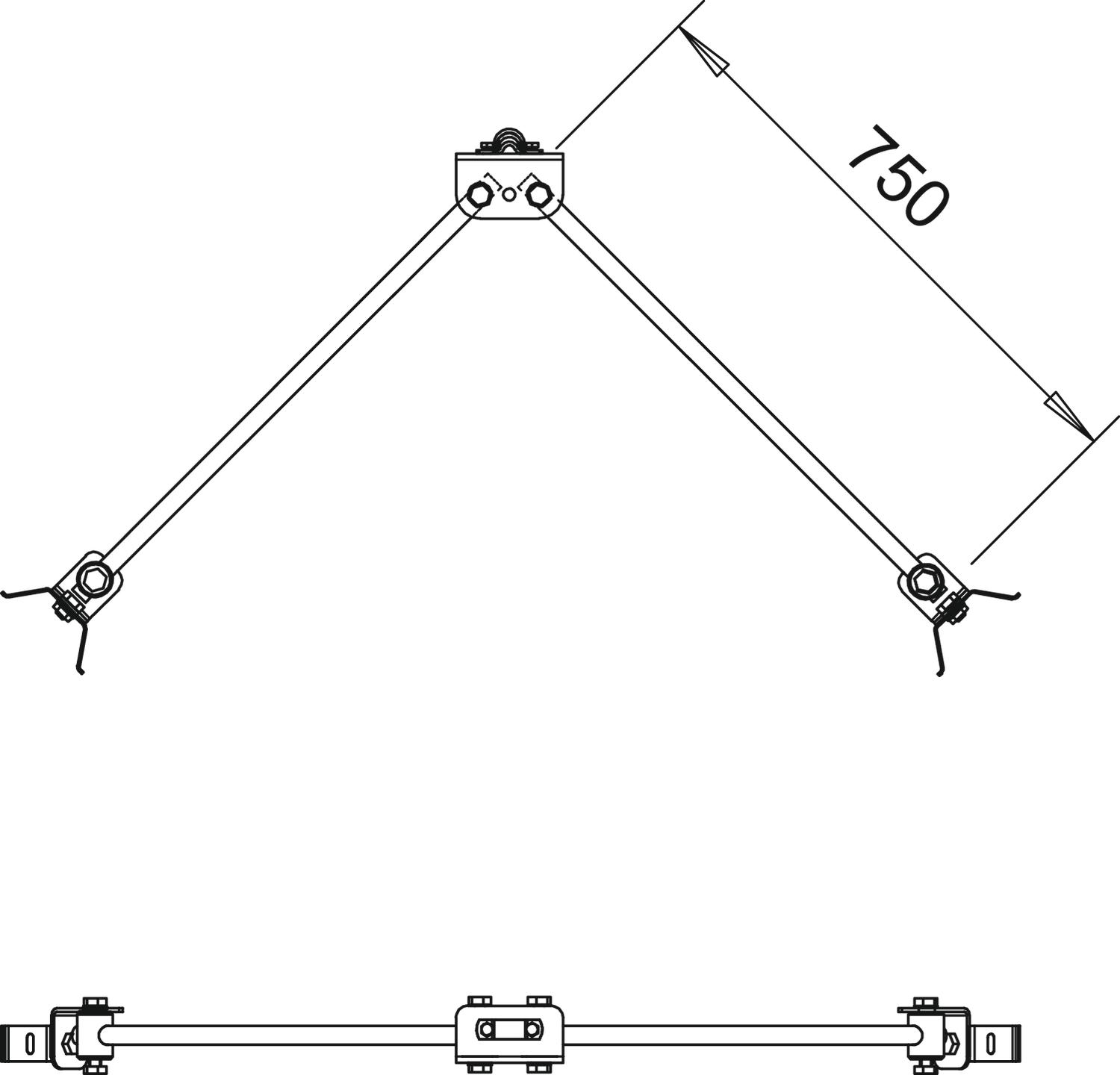

Dimension 900x220x70 Dimension d min. 16 mm Dimension L 750 mm - All types
- Downloads
-
Data sheet 101 VRS-16 / 5408982 , 0.15MB , pdfEU declaration of conformity 101 VRS-16 / 5408982 , 0.06MB , pdf
