Insulated spacer

Item no. 5408814 | EAN 4012195542834

Item no. / Types

Length

Fit

Product description

Product description

• Aluminium mounting foot with 10 connection holes Ø 6.5 mm and 4 connection holes Ø 8.5 mm

• Type ...150 8 with holder suitable for round conductor RD 8

• Application for shelters, e.g. golf, barbecue or mountain huts

Technical data

Technical data

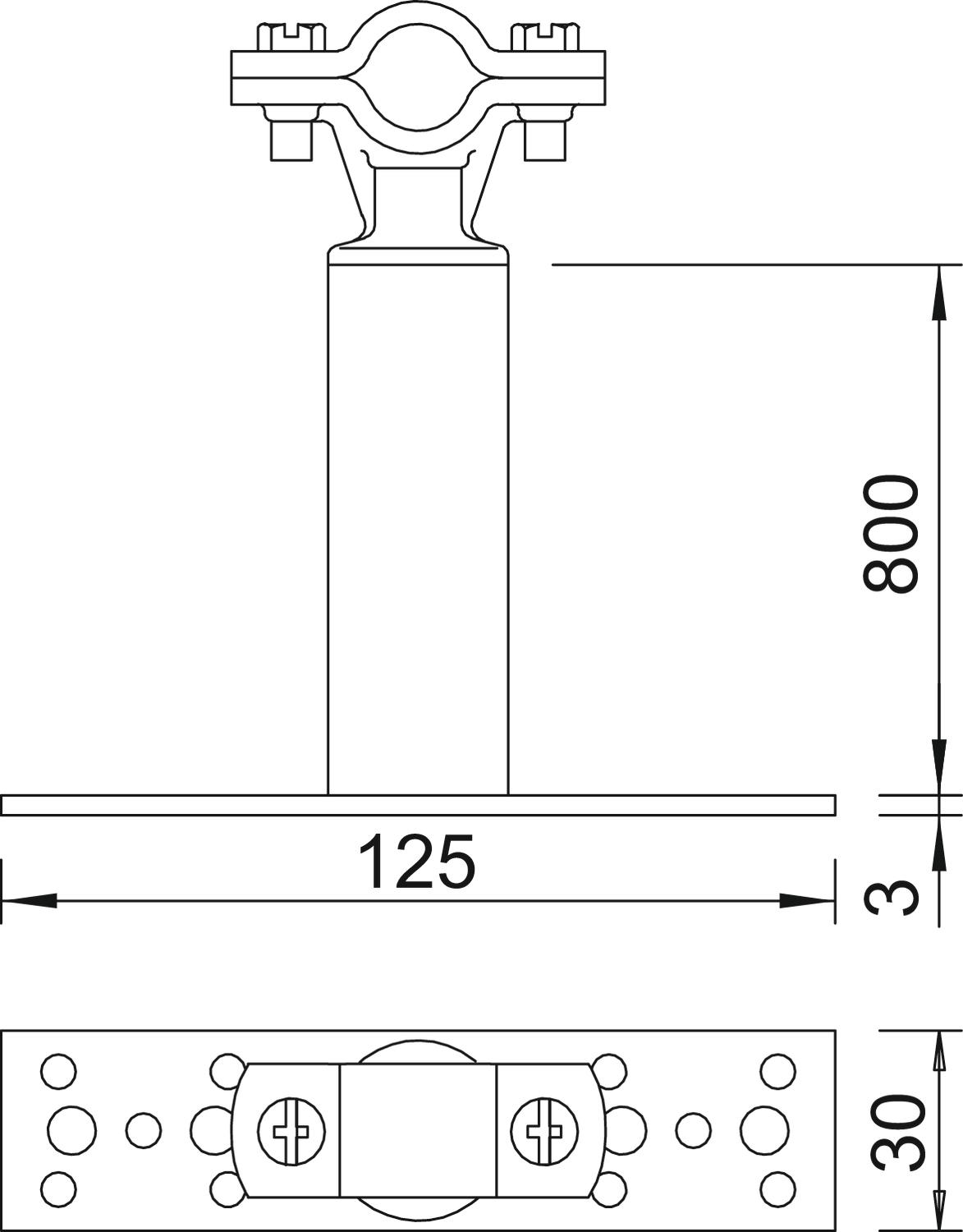

Dimension	800mm
Dimension L	800 mm
Fit	Rd 16 mm

Length	800 mm
Material	Polyamide

All types

All types

Types	Length	Fit	Item no.	Quantity	SSU
ISO-A-150 8	150 mm	Rd 8 mm	5408800	piece	15 piece
ISO-A-500	500 mm	Rd 16 mm	5408806	piece	15 piece
ISO-A-800	800 mm	Rd 16 mm	5408814	piece	15 piece
ISO-A-1030	1030 mm	Rd 16 mm	5408820	piece	15 piece
