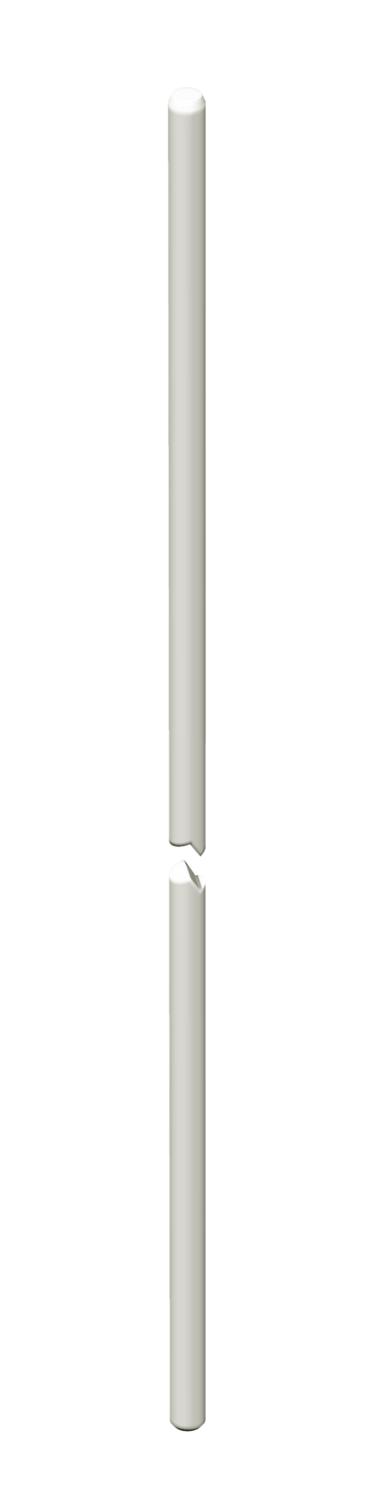

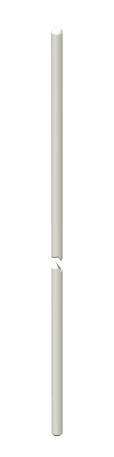

Insulating rod

Item no. 5408109 | EAN 4012195613220

Product description
Product description
• For the erection of insulated air-termination systems to VDE 0185-305 (IEC 62305)

• UV-resistant and weatherproof

• Continuous temperature range -50 °C to +100°C

• Material factor km = 0.7


Technical data

Technical data

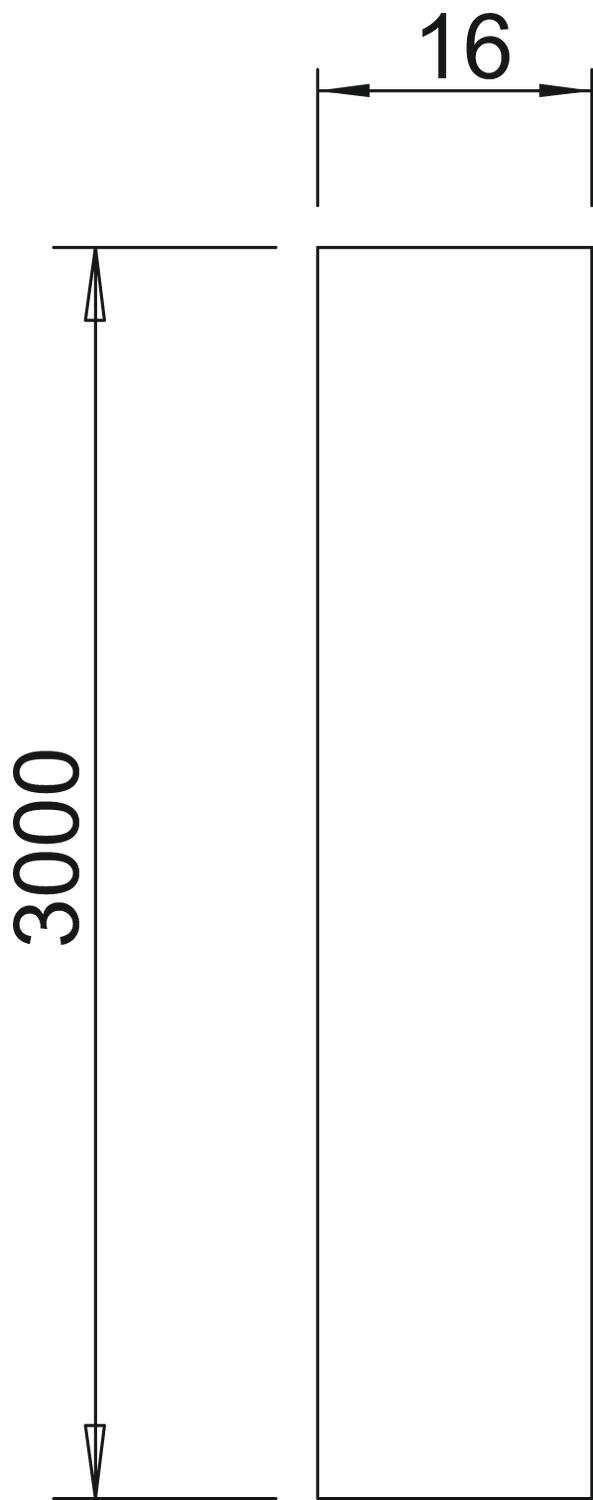

Dimension 3000mm
Dimension D 16 mm
Dimension L 3000 mm
Length 3000 mm
Material Fibre-glass-reinforced plastic
Nominal size Ø 16 mm
Version for Air-termination rod
All types

All types

Types Length Nominal size Ø Item no. Quantity SSU

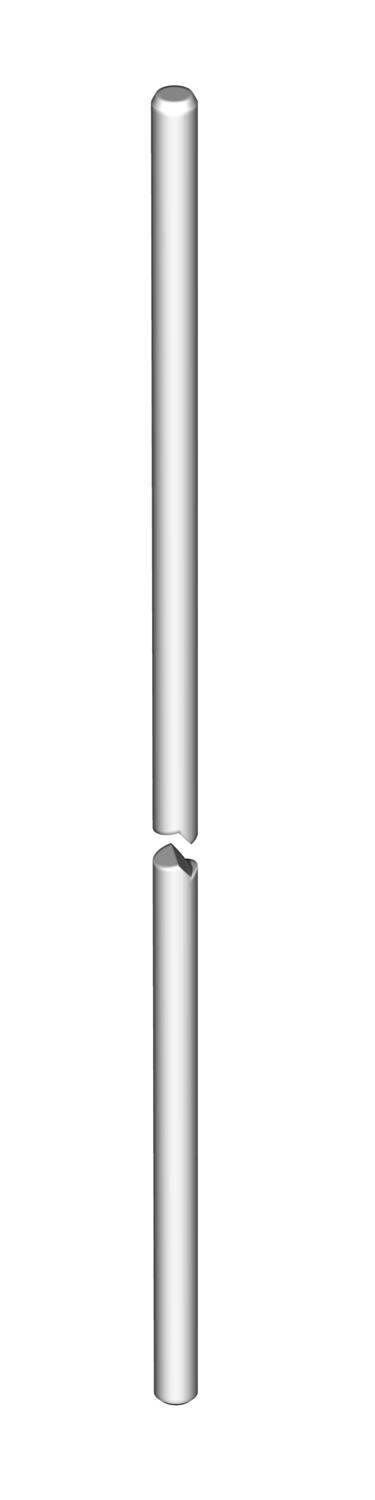

101 20-3000 3000 mm 20 mm 5408105
5 piece
101 16-750 750 mm 16 mm 5408107
5 piece
101 16-1500 1500 mm 16 mm 5408108
5 piece
101 16-3000 3000 mm 16 mm 5408109
5 piece
101 20-6000 6000 mm 20 mm 5408148
5 piece
