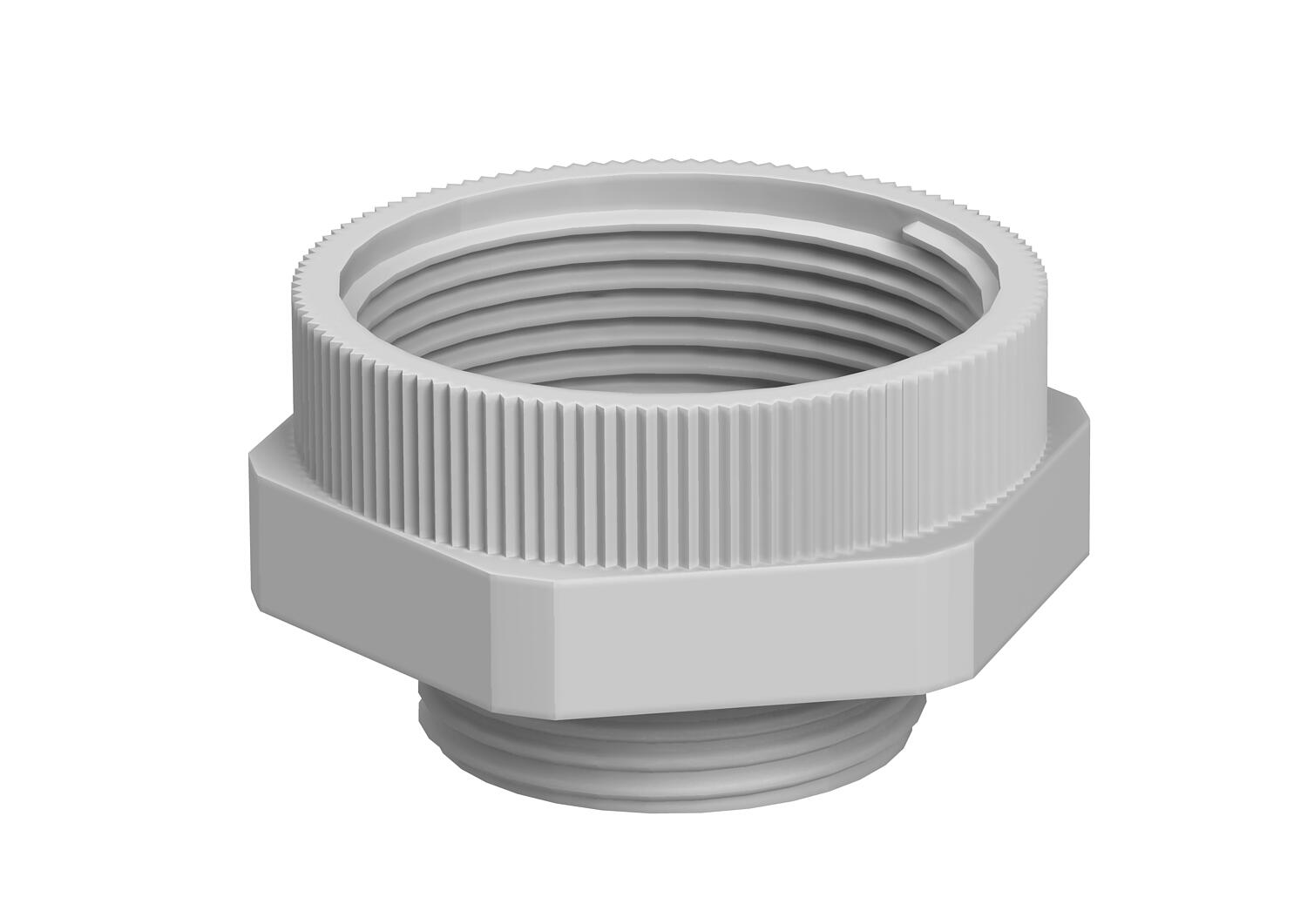

Intermediate expansion connector, metric thread

Item no. 2031450 | EAN 4012195371878

Product description

Product description

Extension with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.
  • Halogen-free; without chlorine, fluorine and bromine
  • Thread metric
Technical data

Technical data

Colour Light grey; RAL 7035

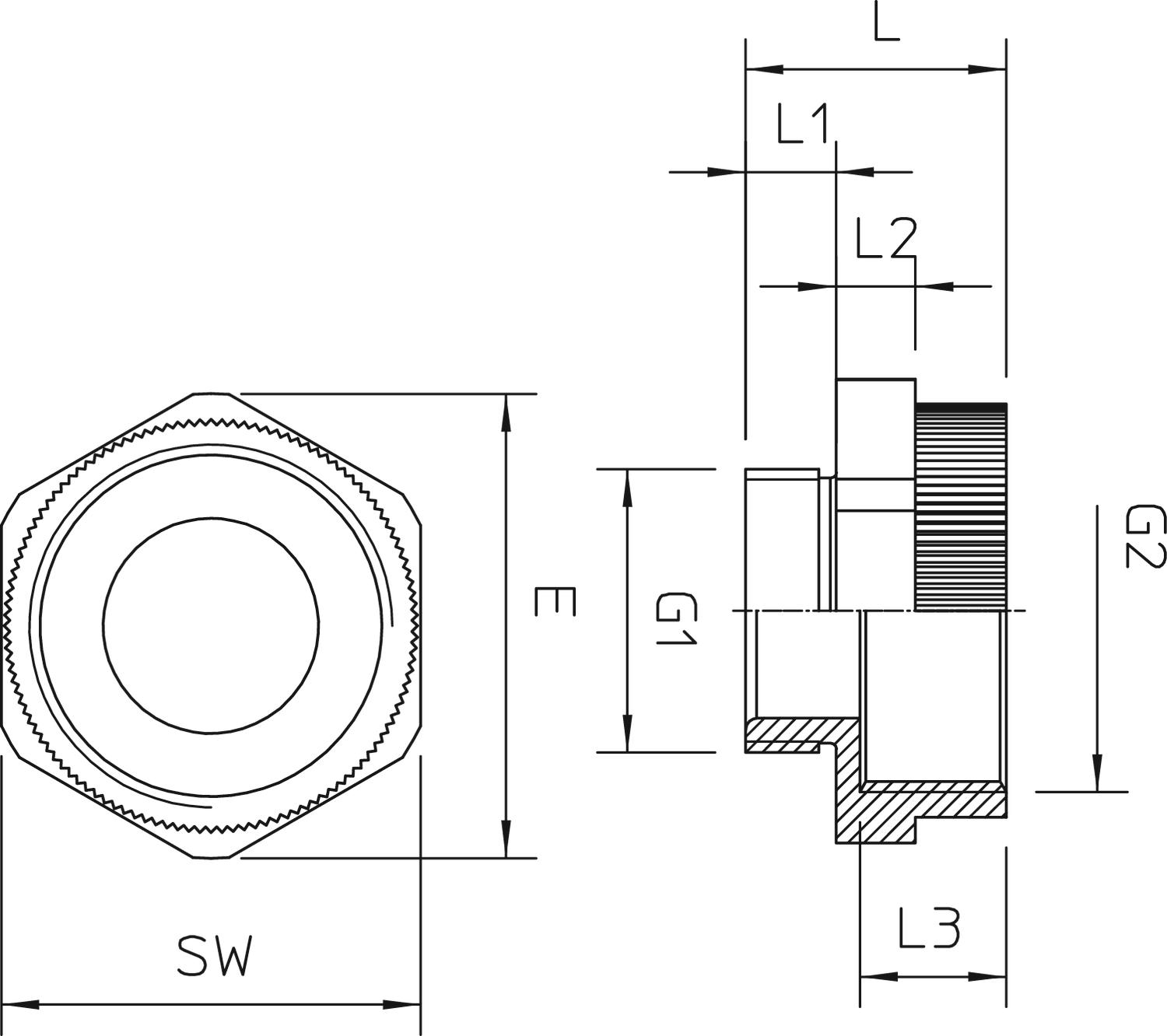

Dimension M12-M16
Dimension D 7 mm
Dimension E 22 mm
Dimension L 20,5 mm
Dimension L1 8 mm
Dimension L2 5 mm
Dimension L3 10,5 mm
explosion-proof no
Material Polyamide
Nickel-plated no
Thread dimension, metric, external 12
Thread dimension, metric, internal 16
Thread type: External thread Metric
Thread type: Internal thread Metric
WAF 20
All types

All types

Types Thread dimension, metric, external Thread dimension, metric, internal Item no. Quantity SSU
107 E M 12-16 PA 12 16 2031450
50 piece
107 E M 16-20 PA 16 20 2031451
50 piece
107 E M 20-25 PA 20 25 2031452
50 piece
107 E M 25-32 PA 25 25 2031453
50 piece
107 E M 32-40 PA 32 40 2031454
25 piece
