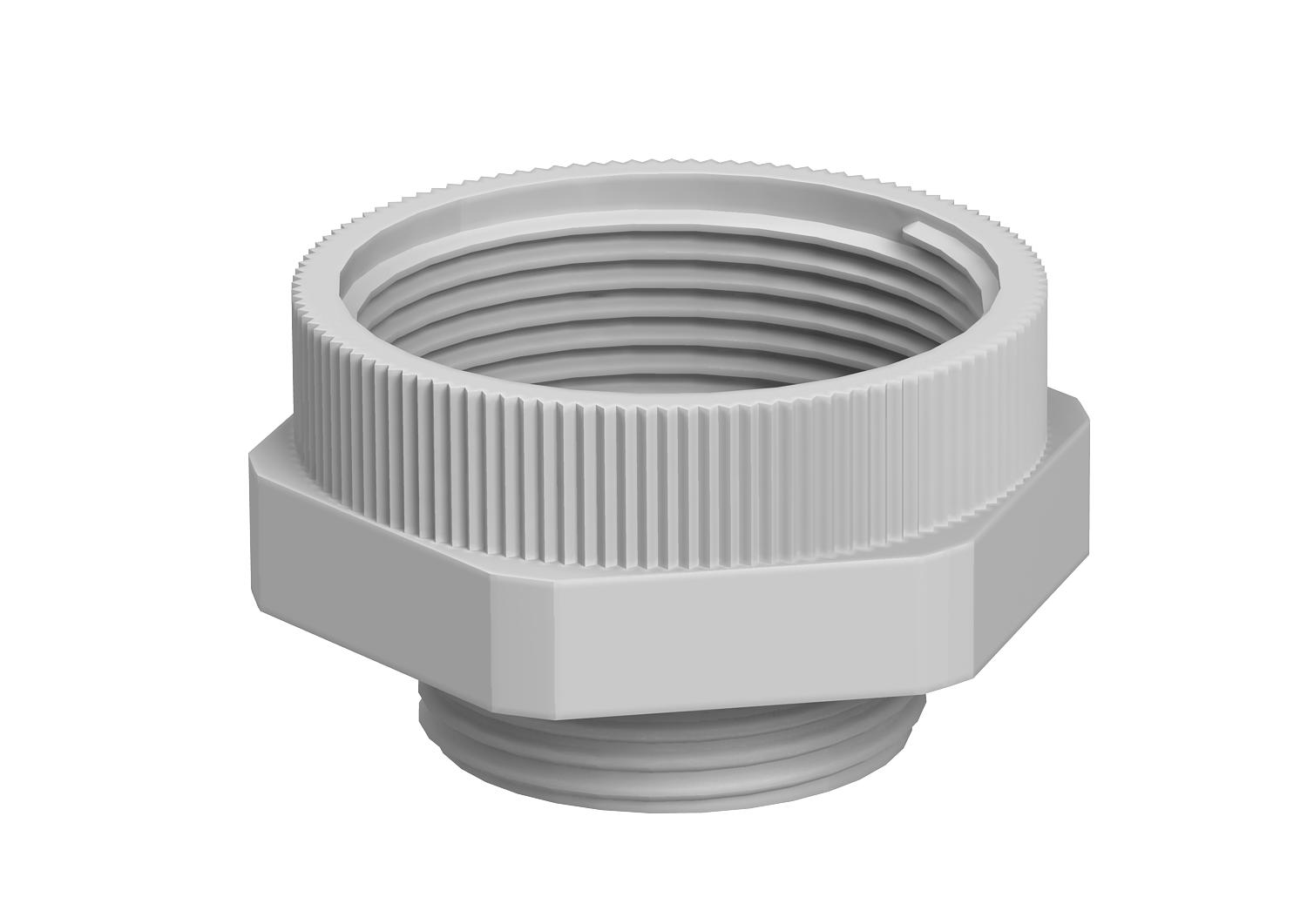

Intermediate expansion connector, metric thread 20 | 25

Intermediate expansion connector, metric thread

Item no. 2031452 | EAN 4012195371915

Item no. / Types

Thread dimension, metric, external

Thread dimension, metric, internal

Product description

Product description

Extension with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	M20-M25
explosion-proof	no
Material	Polyamide
Nickel-plated	no

Thread dimension, metric, external	20
Thread dimension, metric, internal	25
Thread type: External thread	Metric
Thread type: Internal thread	Metric
WAF	30

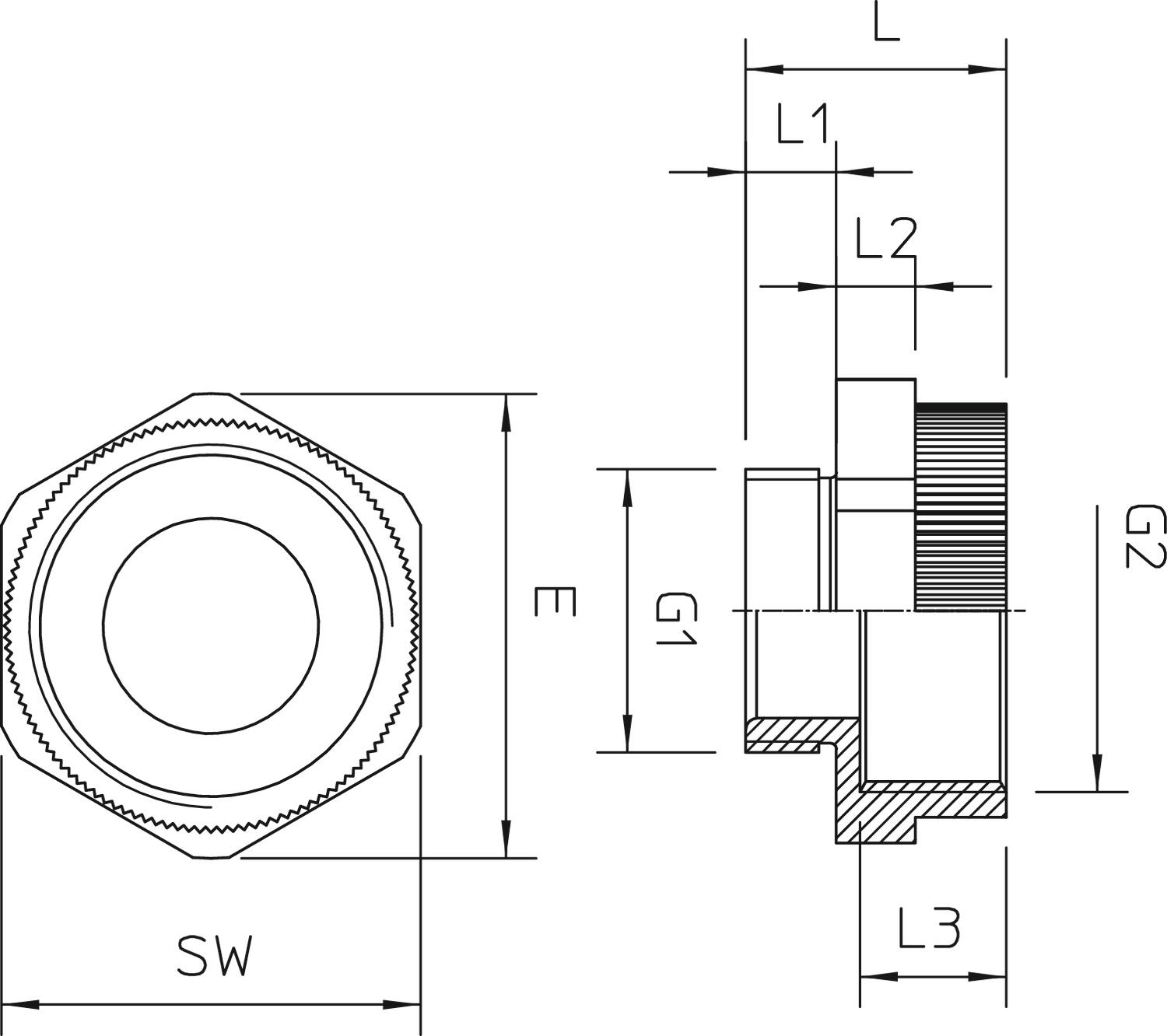

Dimensions

Dimension D	15 mm
Dimension E	33 mm
Dimension L	21 mm

Dimension L1	8 mm
Dimension L2	6 mm
Dimension L3	10,5 mm

All types

All types

Types	Thread dimension, metric, external	Thread dimension, metric, internal	Item no.	Quantity	SSU
107 E M 12-16 PA	12	16	2031450	piece	50 piece
107 E M 16-20 PA	16	20	2031451	piece	50 piece
107 E M 20-25 PA	20	25	2031452	piece	50 piece
107 E M 25-32 PA	25	25	2031453	piece	50 piece
107 E M 32-40 PA	32	40	2031454	piece	25 piece
