Internal corner cover, Soft 218
morepic-1 morepic-2

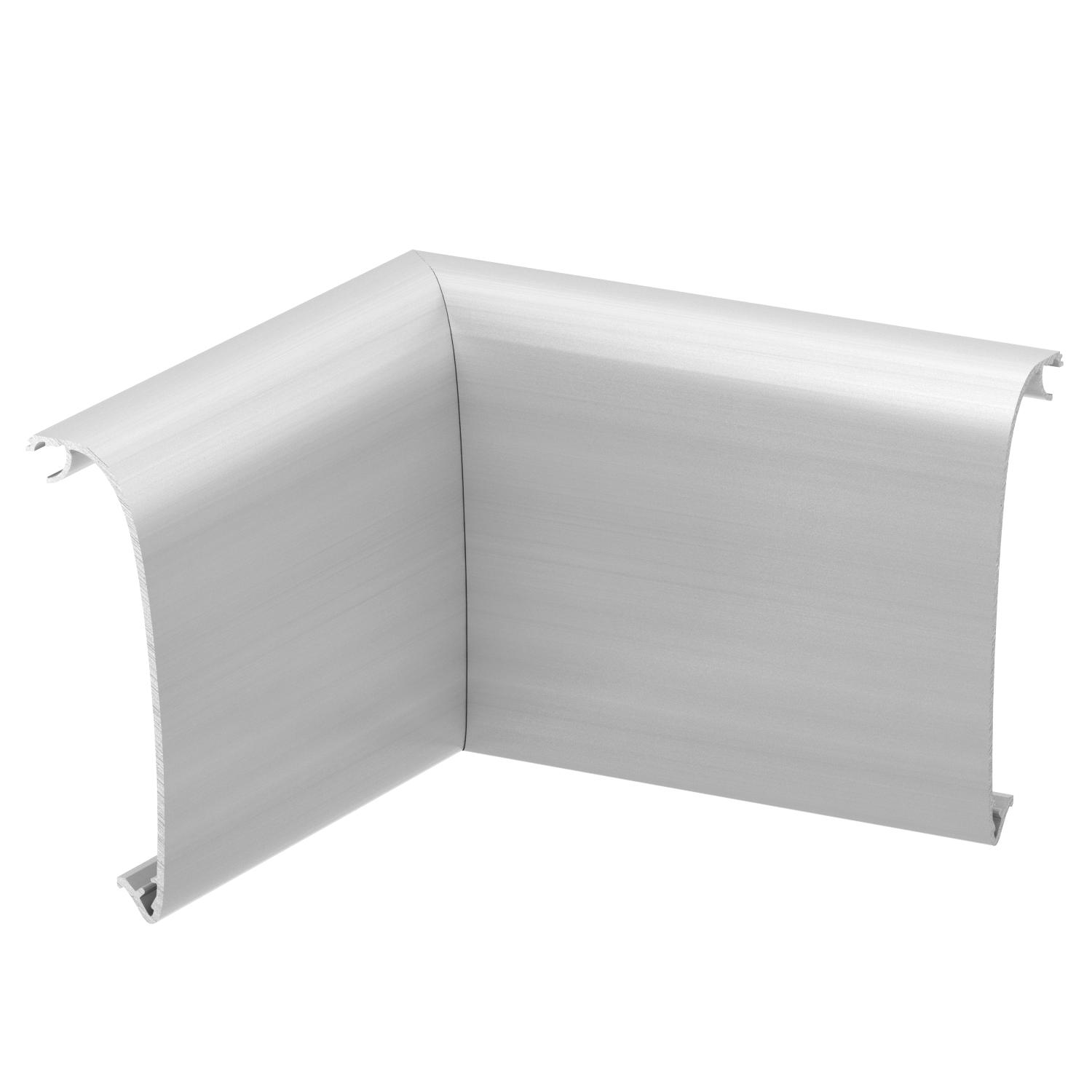

Internal corner cover, Soft

Item no. 6115885 | EAN 4012195914334

6115885 / OT I Soft EL
218 mm
Product description
Product description
Trunking cover for the internal corner of the design device installation trunking of the GAD series. "Soft" design version for complete coverage of the system opening and the switching and plug-in devices.
Standard version in anodised aluminium, different decoration on request.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Cable retaining clip no
Colour aluminium
Cover mounting type Cross-over

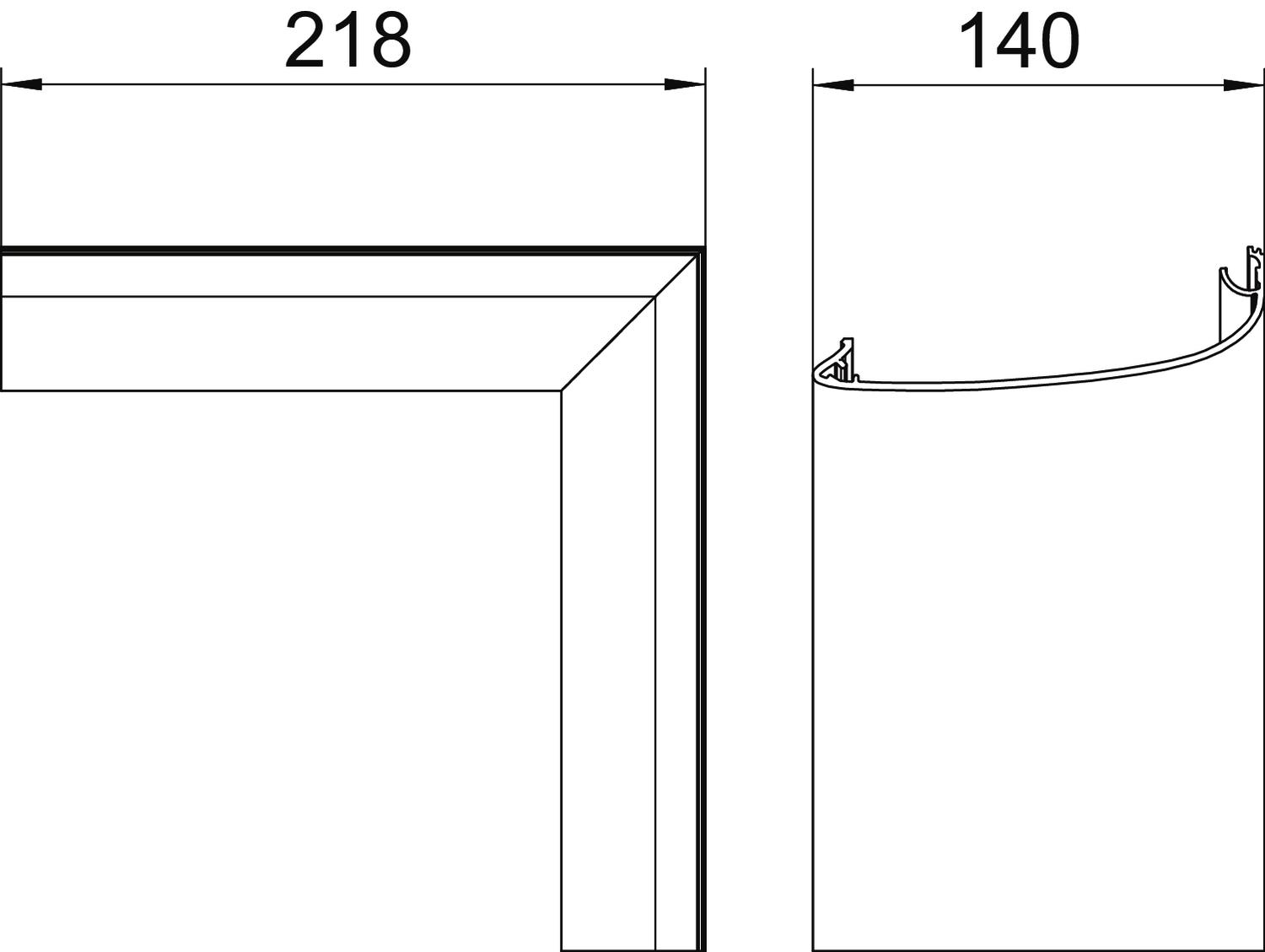

Dimension 45x140x218
Duct connector no
Halogen-free yes
Height 45 mm
Length 218 mm
Material Aluminium
Mounting perforation in base no
Protective film yes
Shape Asymmetrical
Surface Anodised
Version for Miscellaneous
Width 140 mm
All types

All types

Types Length Item no. Quantity SSU
OT I Soft EL 218 mm 6115885
1 piece
Downloads

Download

Download
Download

EU declaration of conformity OT I Soft EL / 6115885 , 0.13MB , pdf
Download
UK Declaration of Conformity OT I Soft EL / 6115885 , 0.14MB , pdf
Download

Download

No invitation to tender text is available for this product.
