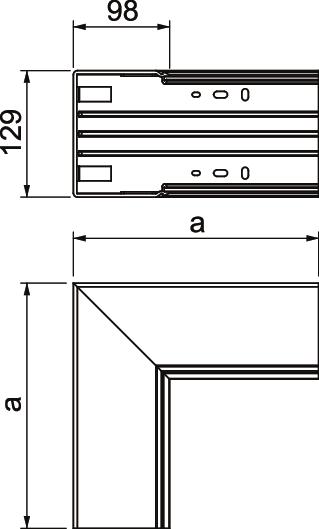

Internal corner cover, trunking type WDK 100130

Item no. / Types

Length	250 mm

Width	129 mm

Height	100 mm

Dimension a	250 mm

Colour

Product description

Product description

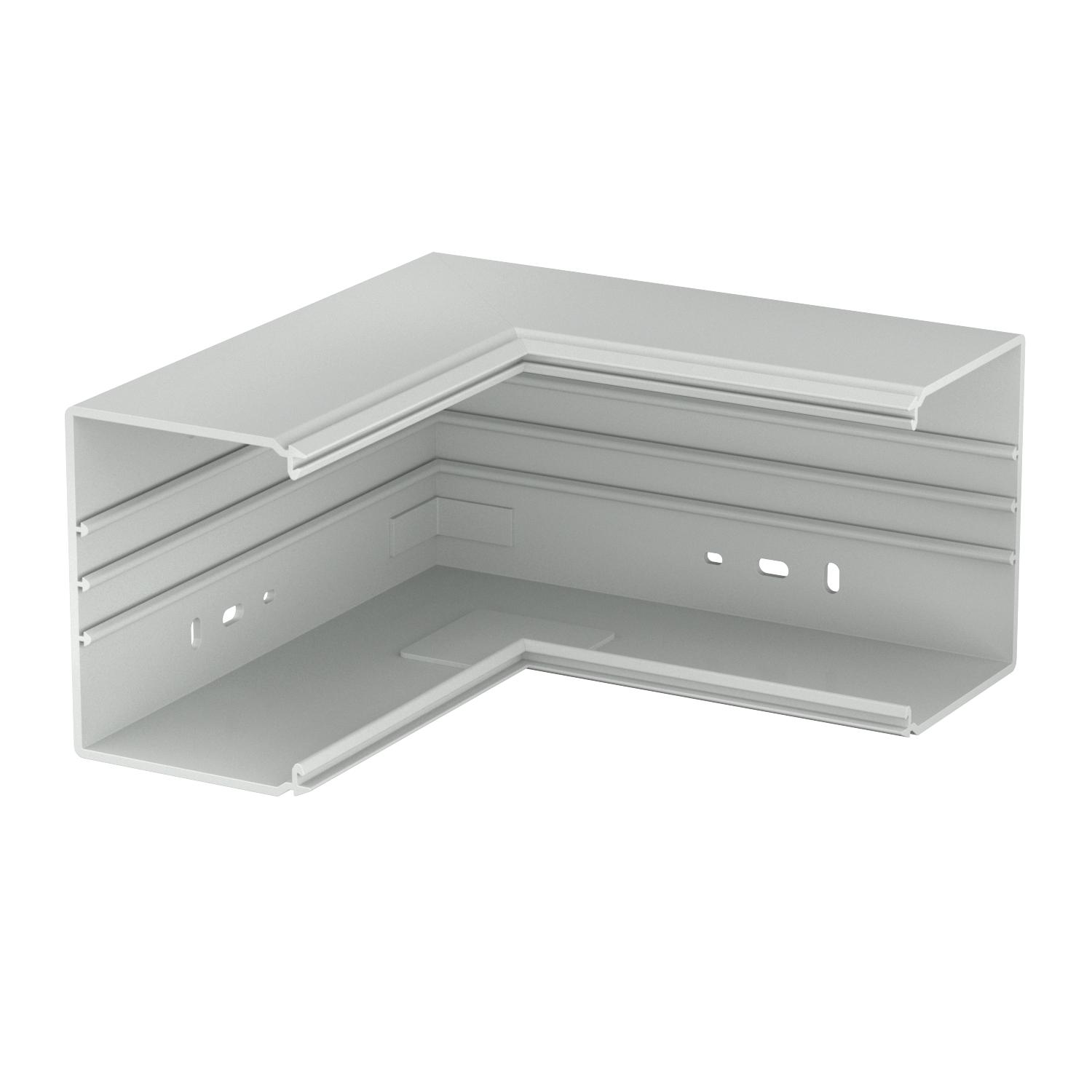

Internal corner cover for changing the direction of the WDK trunking.

Technical data

Angle range, max.	90 mm
Angle range, min.	90 mm
Antibacterial treatment	no
Colour	Light grey; RAL 7035
Dimension	250x130x100
Fastening type	Base perforation
Halogen-free	no
Maintain electrical functions	no

Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Version for	Base

Dimension a	250 mm
Height	100 mm

Length	250 mm
Width	129 mm

All types

Types	Length	Width	Height	Dimension a	Colour	Item no.	Quantity	SSU
WDK I100130CW	250 mm	129 mm	100 mm	250 mm	Cream; RAL 9001	6192417	piece	2 piece
WDK I100130GR	250 mm	129 mm	100 mm	250 mm	Stone grey; RAL 7030	6192421	piece	2 piece
WDK I100130LGR	250 mm	129 mm	100 mm	250 mm	Light grey; RAL 7035	6192425	piece	2 piece
WDK I100130RW	250 mm	129 mm	100 mm	250 mm	Pure white; RAL 9010	6192429	piece	2 piece
