- Product description
-
Product description

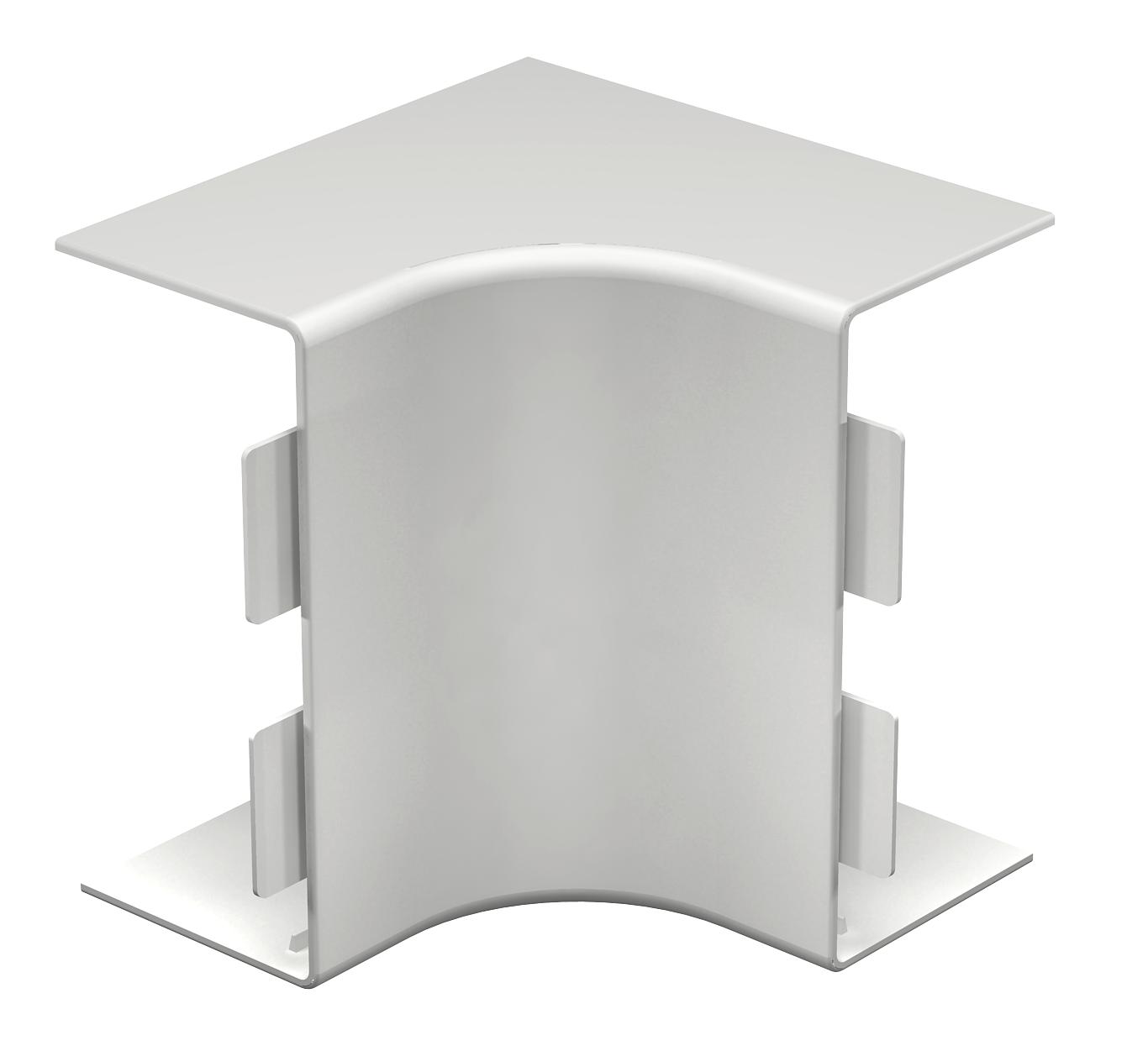

Internal corner cover for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Light grey; RAL 7035 Dimension 60x130mm Fastening type Lockable Halogen-free no Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Version for Hood fitting Dimensions

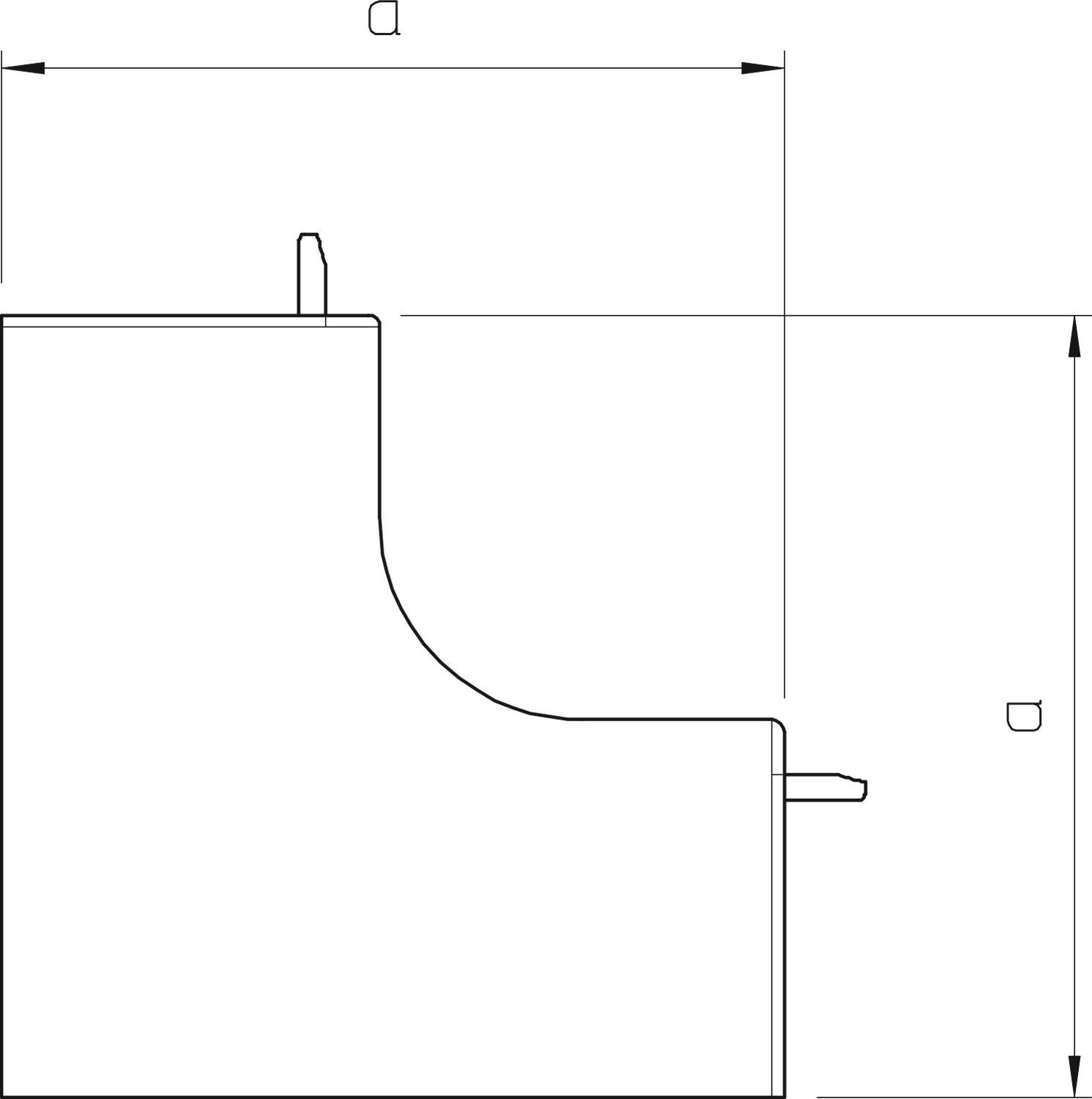

Dimension a 130 mm Height 60 mm Length 130 mm Width 130 mm - All types
-
All types
- Downloads
-
Data sheet WDK HI60130LGR / 6182224 , 0.23MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDK HI60130LGR / 6182224 , 0.13MB , pdfUK Declaration of Conformity WDK HI60130LGR / 6182224 , 0.14MB , pdfREACH Declaration of conformity WDK HI60130LGR / 6182224 , 0.12MB , pdfRoHS Declaration of conformity WDK HI60130LGR / 6182224 , 0.12MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdf
