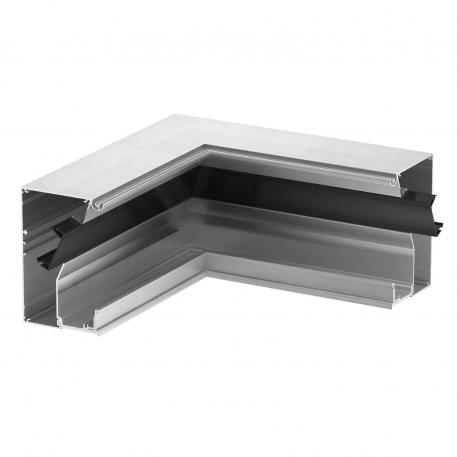

Internal corner, design trunking
Item no. 6115795 | EAN 4012195914297
- Product description
-
Product descriptionInternal corner base to create a design device installation trunking of the GAD series. 45 mm system opening for acceptance of Modul 45 switch and connection devices and appropriate PVC and aluminium covers of the Rapid 45 series. The fitting can be completed with fitting covers in the "Swing", "Soft" or "Style" design. The GAD OTA cover adapters are essential. A GAD OTD spacer must be placed between the trunking covers.
Standard version in anodised aluminium, different decoration on request.
-
- Technical data
-
Technical data

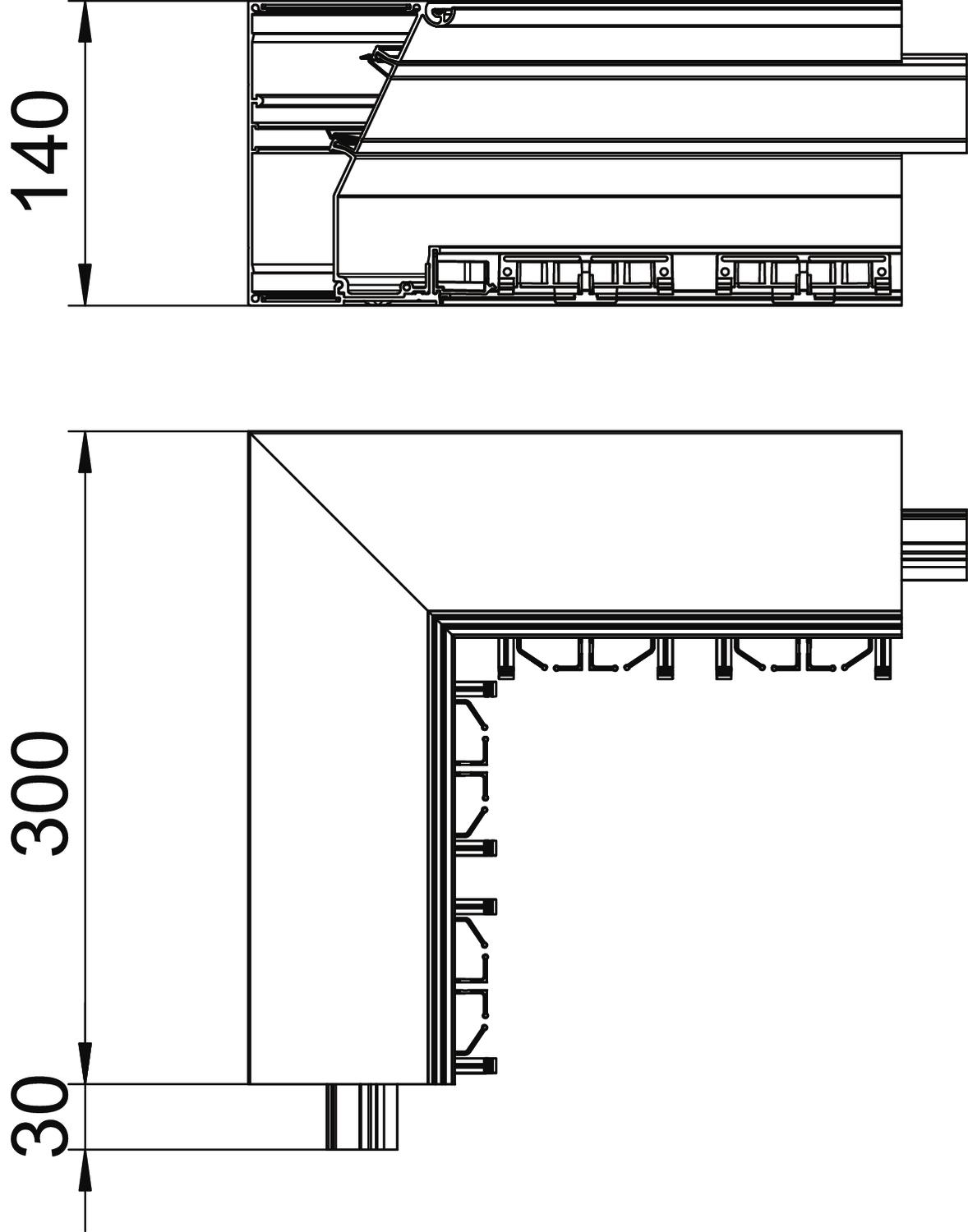

Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no Colour aluminium Cover mounting type Cross-over Cover width 140 mm Dimension 114x140x300 Duct connector no Halogen-free yes Height 114 mm Length 300 mm Material Aluminium Mounting perforation in base no Number of covers 1 Protective film yes Shape Asymmetrical Surface Anodised Version for Base Width 140 mm - All types
- Downloads
-
Data sheet GAD IEL / 6115795 , 0.21MB , pdfEU declaration of conformity GAD IEL / 6115795 , 0.13MB , pdfUK Declaration of Conformity GAD IEL / 6115795 , 0.14MB , pdfMounting instructions GAD Design device installation trunking , 1.53MB , pdfNo invitation to tender text is available for this product.
