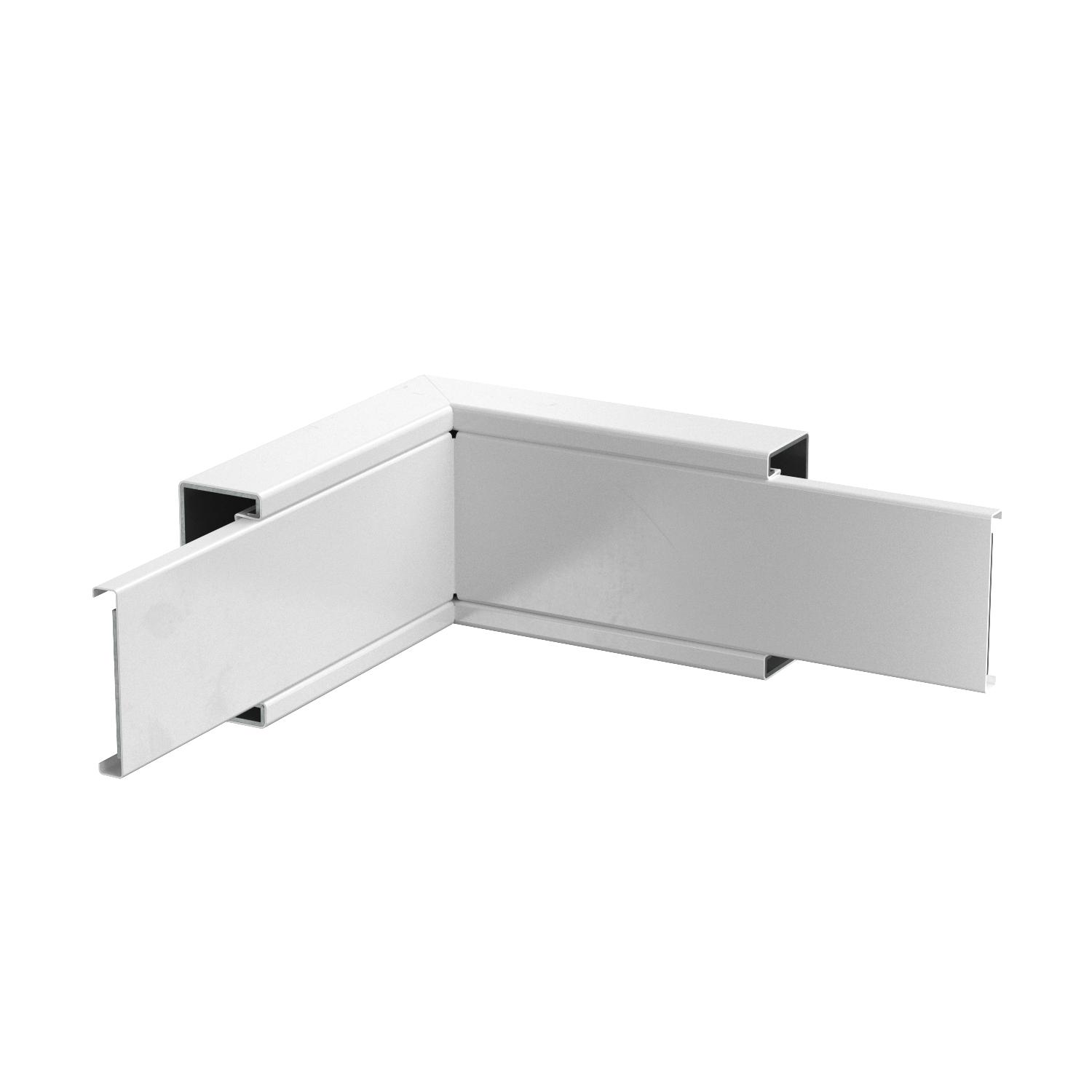

Internal corner, duct height 40 mm, pure white
Item no. 7218052 | EAN 4012197358419
- Product description
-
Product description
Internal corner with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
-
- Technical data
-
Technical data

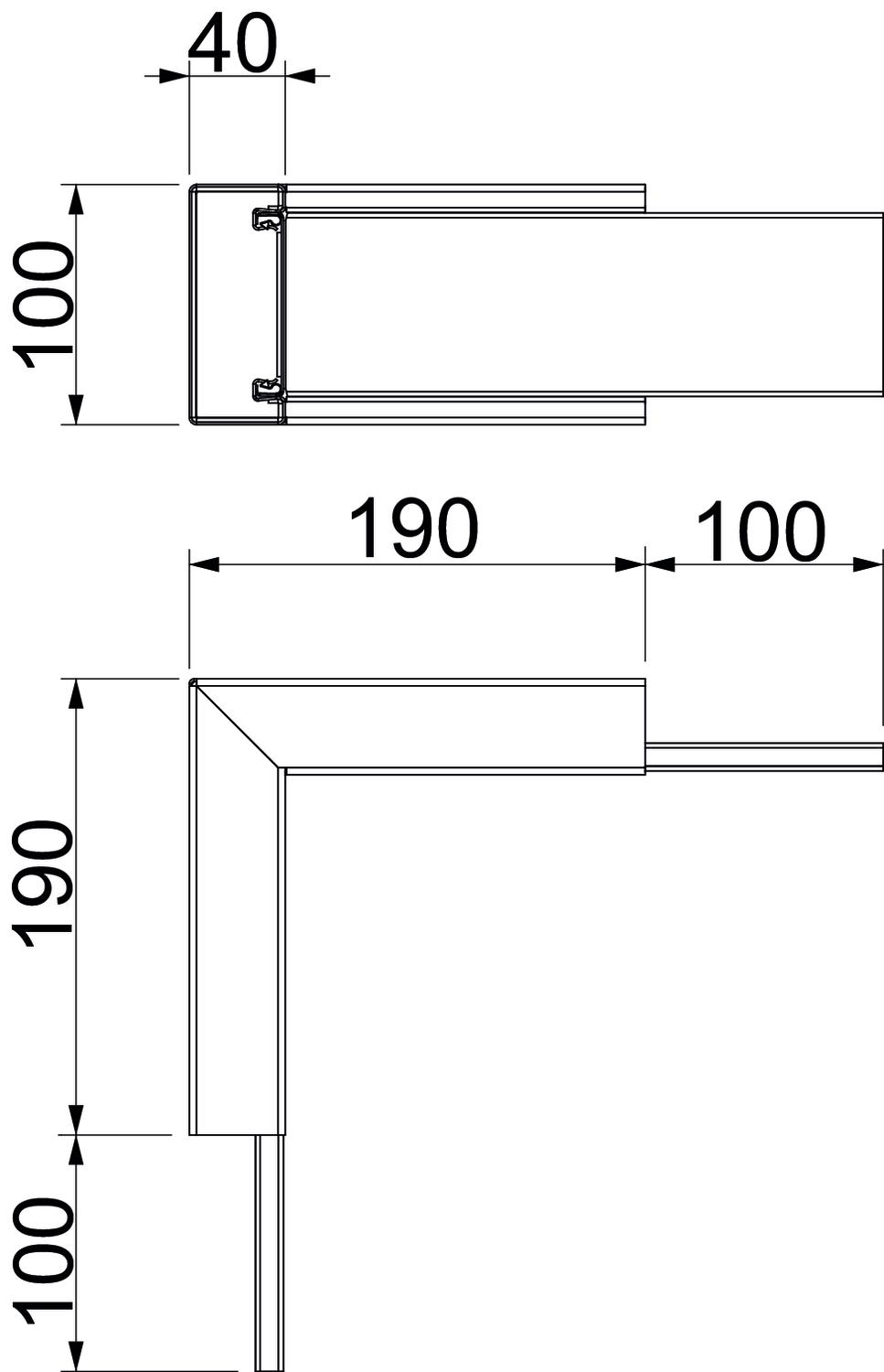

Angle of the bend 90 ° Colour Pure white; RAL 9010 Cover fastening Miscellaneous Dimension 290x100x290 Dimension A 190 mm Dimension B 100 mm Dimension H 40 mm Jacketing Steel Material Steel Number of flammable sides 4 Partitions possible no Surface Powder-coated Usable cross-section 1780 mm² With perforation yes - All types
- Downloads
-
Data sheet PLM IC 0410 RW / 7218052 , 0.18MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfDeclaration of conformity PLM IC 0410 RW / 7218052 , 0.11MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdfNo invitation to tender text is available for this product.
