Internal corner Signa Base IE 70110 Pure white; RAL 9010
morepic-1 morepic-2

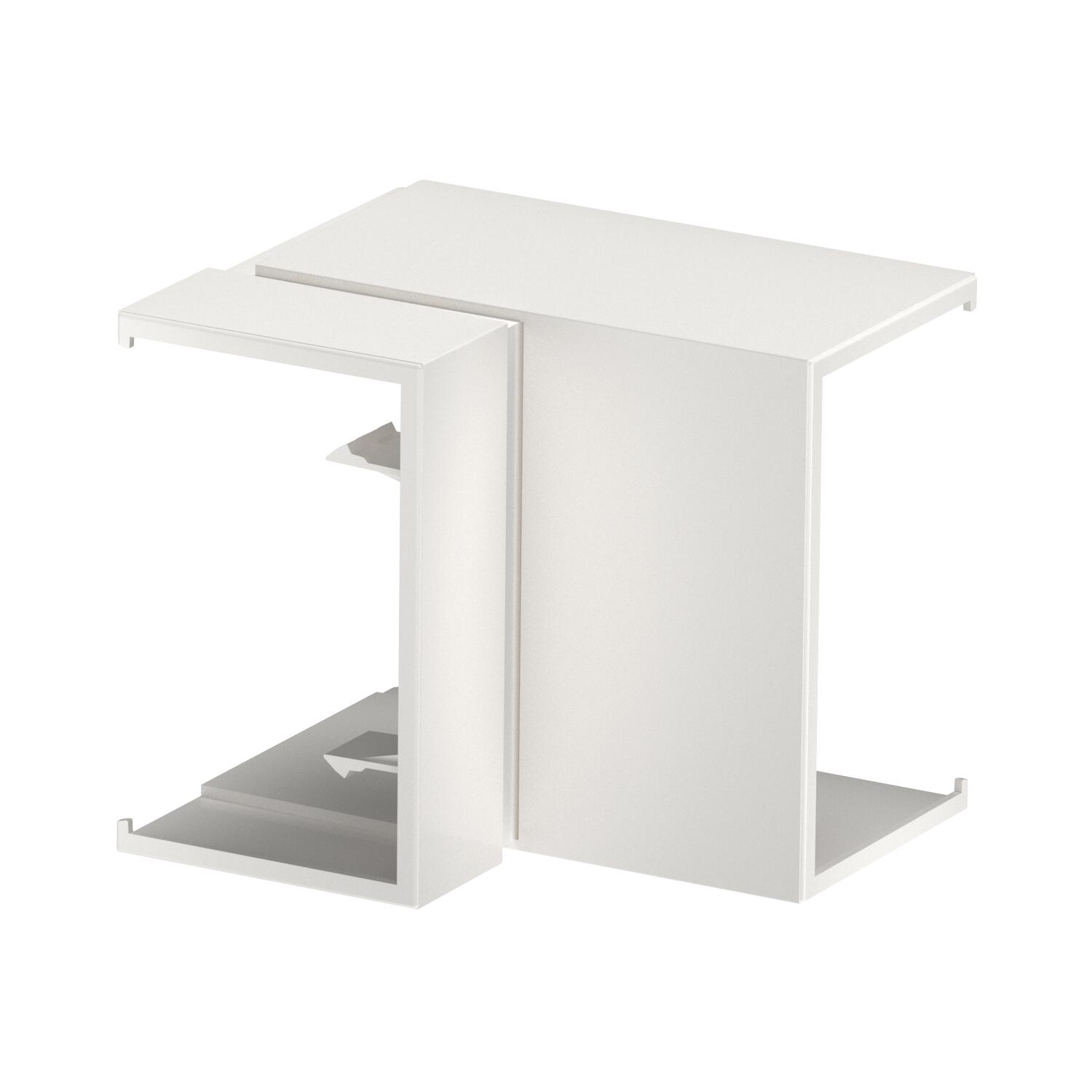

Internal corner Signa Base IE 70110

Item no. 6132751 | EAN 4012196717996

Product description
Product description
Internal corner as a fitting for changing the direction of the Signa Base device installation trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Angle range, max. 93 mm
Angle range, min. 85 mm
Antibacterial treatment no
Cable retaining clip no
Colour Pure white; RAL 9010
Cover mounting type Cross-over

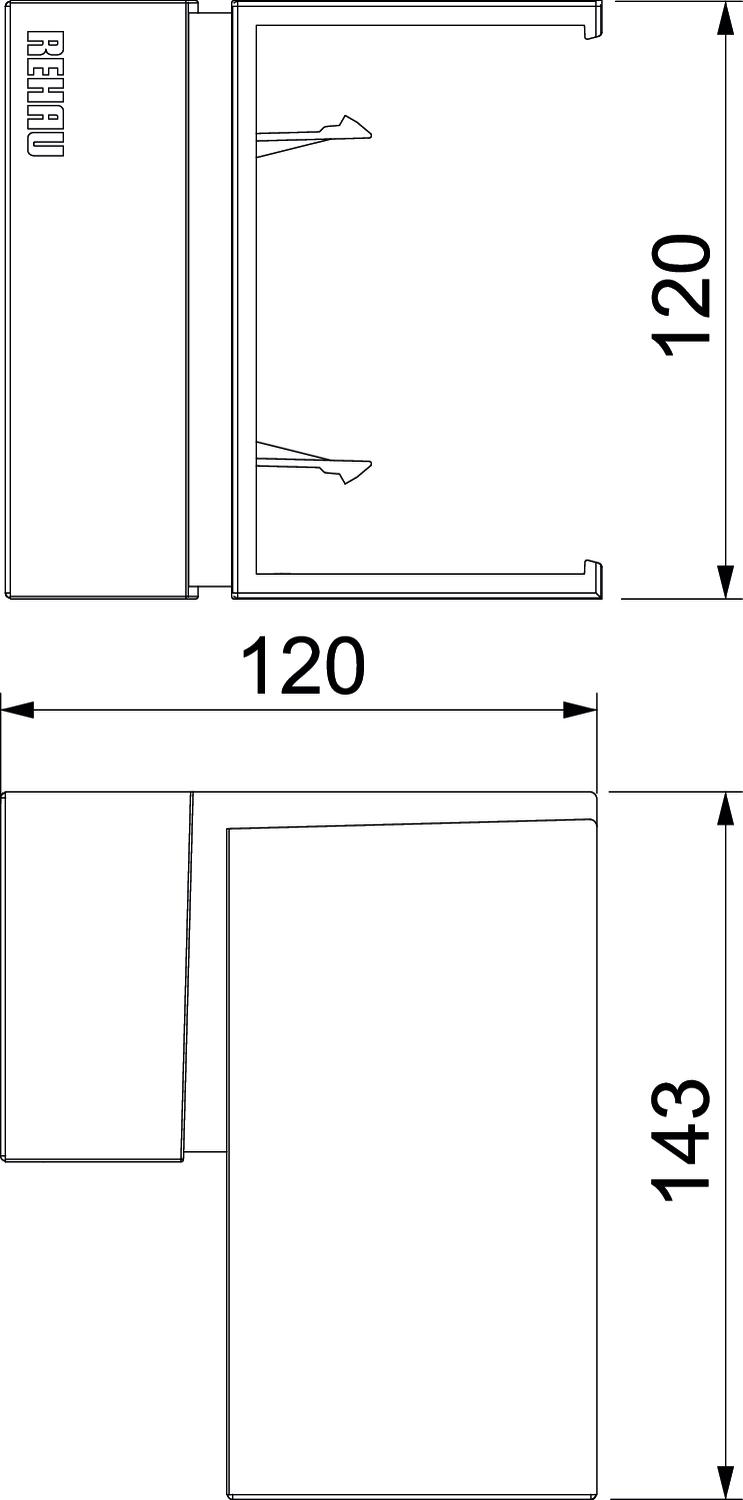

Dimension 120x143x120
Duct connector no
Halogen-free yes
Height 143 mm
Length 120 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base no
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK07.
Protective film no
Shape Asymmetrical
Version for Hood fitting
Width 120 mm
All types

All types

Types Colour Item no. Quantity SSU
BRK IE70110 cws Cream; RAL 9001 6132750
1 piece
BRK IE70110 rws Pure white; RAL 9010 6132751
1 piece
Downloads

Download

Download

EU declaration of conformity BRK IE70110 rws / 6132751 , 0.10MB , pdf
Download
REACH Declaration of conformity BRK IE70110 rws / 6132751 , 0.12MB , pdf
Download
RoHS Declaration of conformity BRK IE70110 rws / 6132751 , 0.12MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
