Internal corner Signa Base IE 70130
Item no. 6132752 | EAN 4012196728732
- Product description
-
Product description

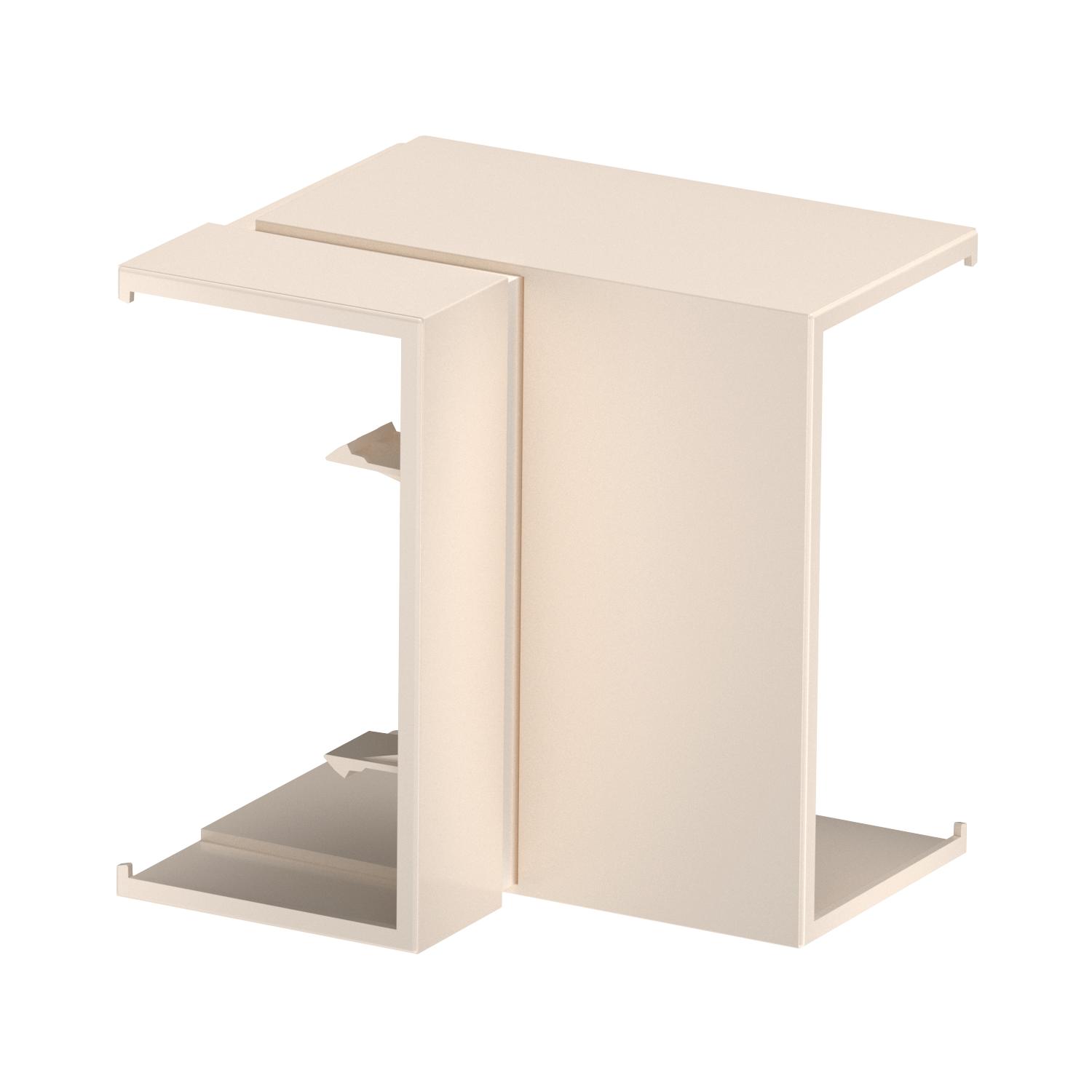

Internal corner as a fitting for changing the direction of the Signa Base device installation trunking.
-
- Technical data
-
Technical data
Angle range, max. 93 mm Angle range, min. 85 mm Antibacterial treatment no Cable retaining clip no Colour Cream; RAL 9001 Cover mounting type Cross-over Duct connector no Halogen-free yes Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting perforation in base no Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK07. Protective film no Shape Asymmetrical Version for Hood fitting Dimensions

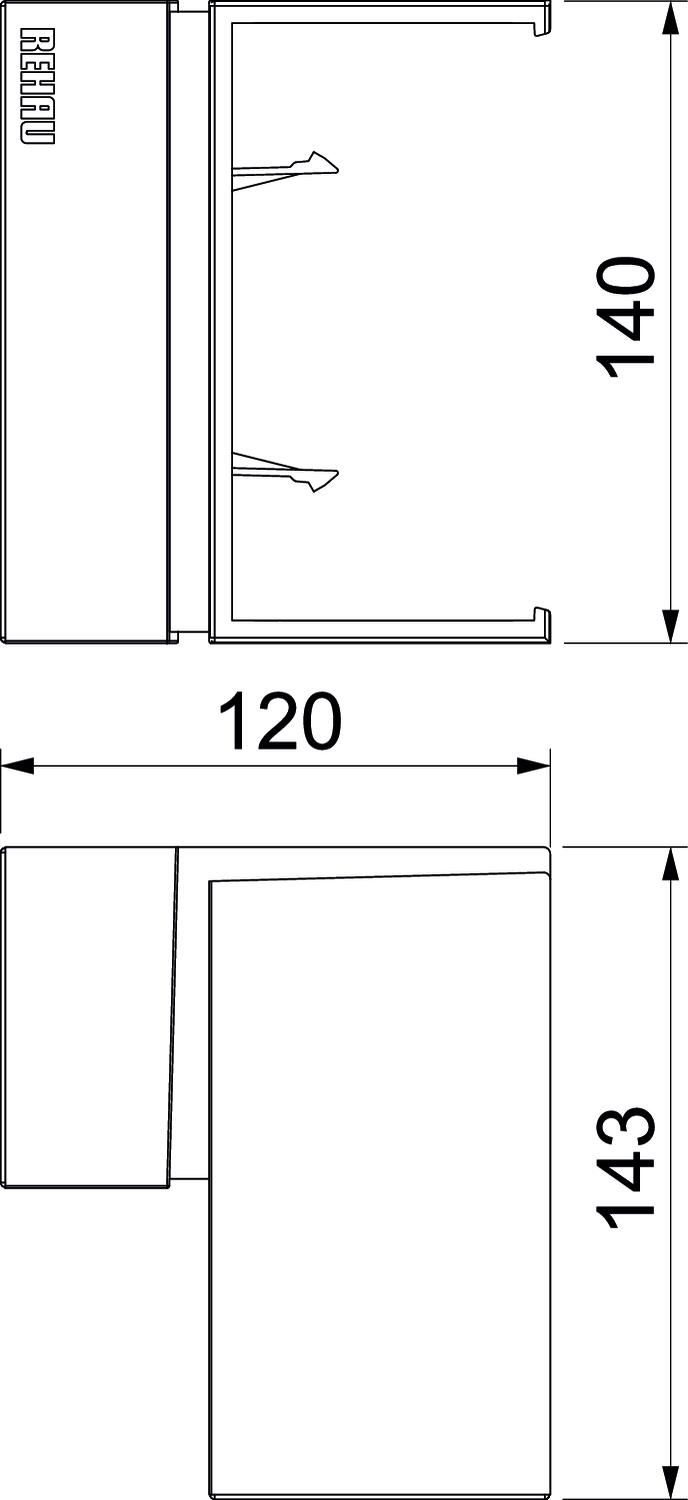

Height 140 mm Length 120 mm Width 143 mm - All types
- Downloads
-
Data sheet BRK IE70130 cws / 6132752 , 0.22MB , pdfDeclaration of conformity BRK IE70130 cws / 6132752 , 0.17MB , pdfREACH Declaration of conformity BRK IE70130 cws / 6132752 , 0.12MB , pdfRoHS Declaration of conformity BRK IE70130 cws / 6132752 , 0.12MB , pdfMounting instructions Geräteeinbaukanal Signa Base , 15.61MB , pdfNo invitation to tender text is available for this product.
