Internal corner SL IE20110
Item no. 6132259 | EAN 4012196726653
- Product description
-
Product description

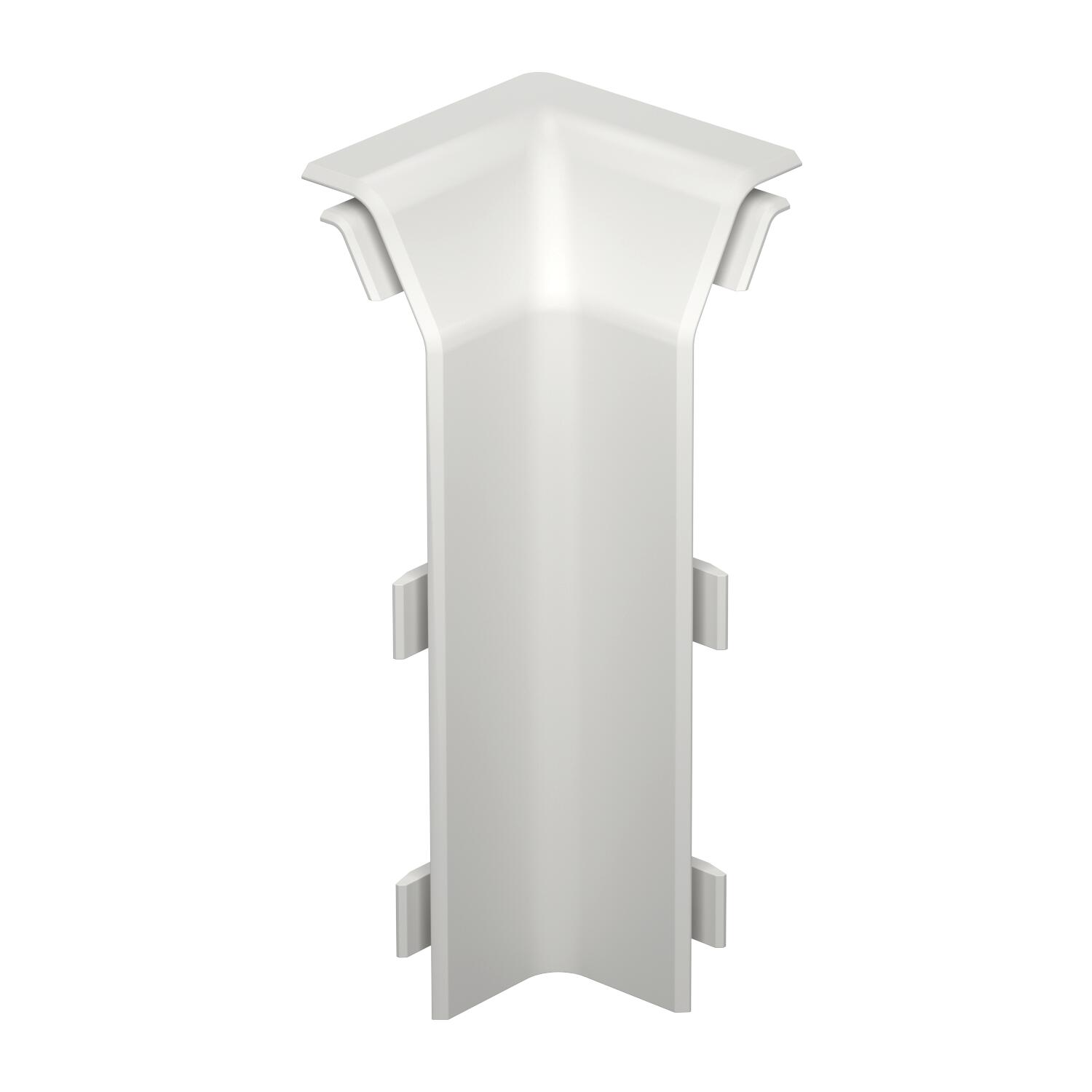

Internal corner as a fitting for changing the direction of the skirting trunking.
-
- Technical data
-
Technical data

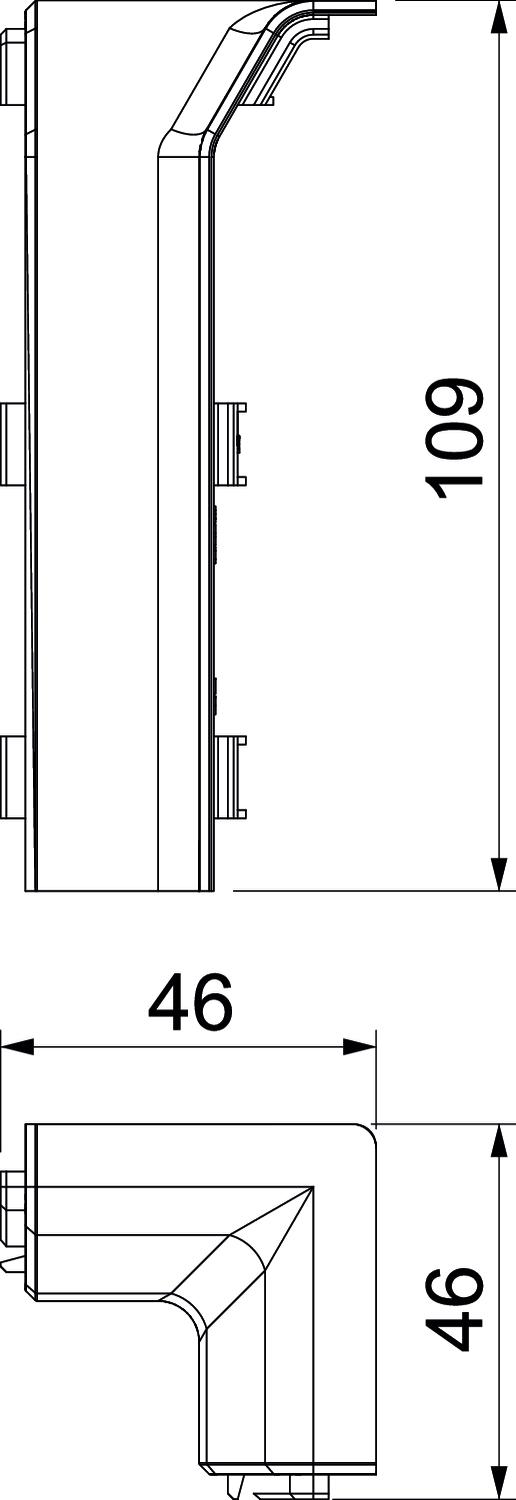

Angle range, min. 90 mm Colour Pure white; RAL 9010 Cover sealing lip Without Decoration Without Halogen-free no Height 109 mm Length 46 mm Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK06 Version for Hood fitting Width 46 mm With carpet strip no - All types
- Downloads
-
Data sheet SL IE20110 rws / 6132259 , 0.19MB , pdfDeclaration of conformity SL IE20110 rws / 6132259 , 0.13MB , pdfREACH Declaration of conformity SL IE20110 rws / 6132259 , 0.12MB , pdfRoHS Declaration of conformity SL IE20110 rws / 6132259 , 0.12MB , pdfLabel approval VDE symbol approval, SL skirting trunking , 0.27MB , pdfNo invitation to tender text is available for this product.
