Internal corner SL IE2070

Item no. 6132255 | EAN 4012196726493

Product description

Product description

Internal corner as a fitting for changing the direction of the skirting trunking.

Technical data

Technical data

Angle range, min.	90 mm
Colour	Light grey; RAL 7035
Decoration	Without
Halogen-free	no
Height	73 mm
Length	46 mm
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK06
Version for	Hood fitting
Width	46 mm
With carpet strip	no

All types

All types

Types		Item no.	Quantity	SSU
SL IE2070 rws		6132253	piece	10 piece
SL IE2070 cws		6132254	piece	10 piece
SL IE2070 lgr		6132255	piece	10 piece

Downloads

Brochure SL skirting trunking and RAUDUO electrical/heating trunking , 4.31MB , pdf

Label approval VDE symbol approval, SL skirting trunking , 0.27MB , pdf

Download

Selection aid Selection aid Skirting trunkings SL and Rauduo , 0.43MB , pdf

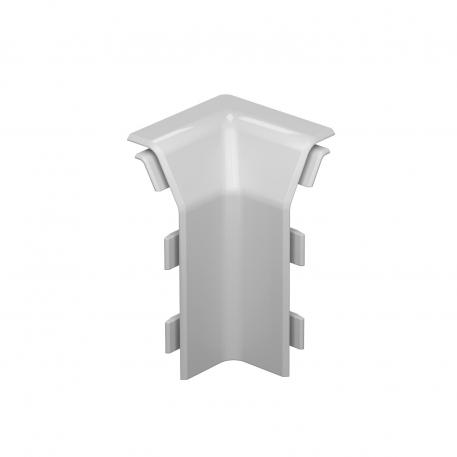

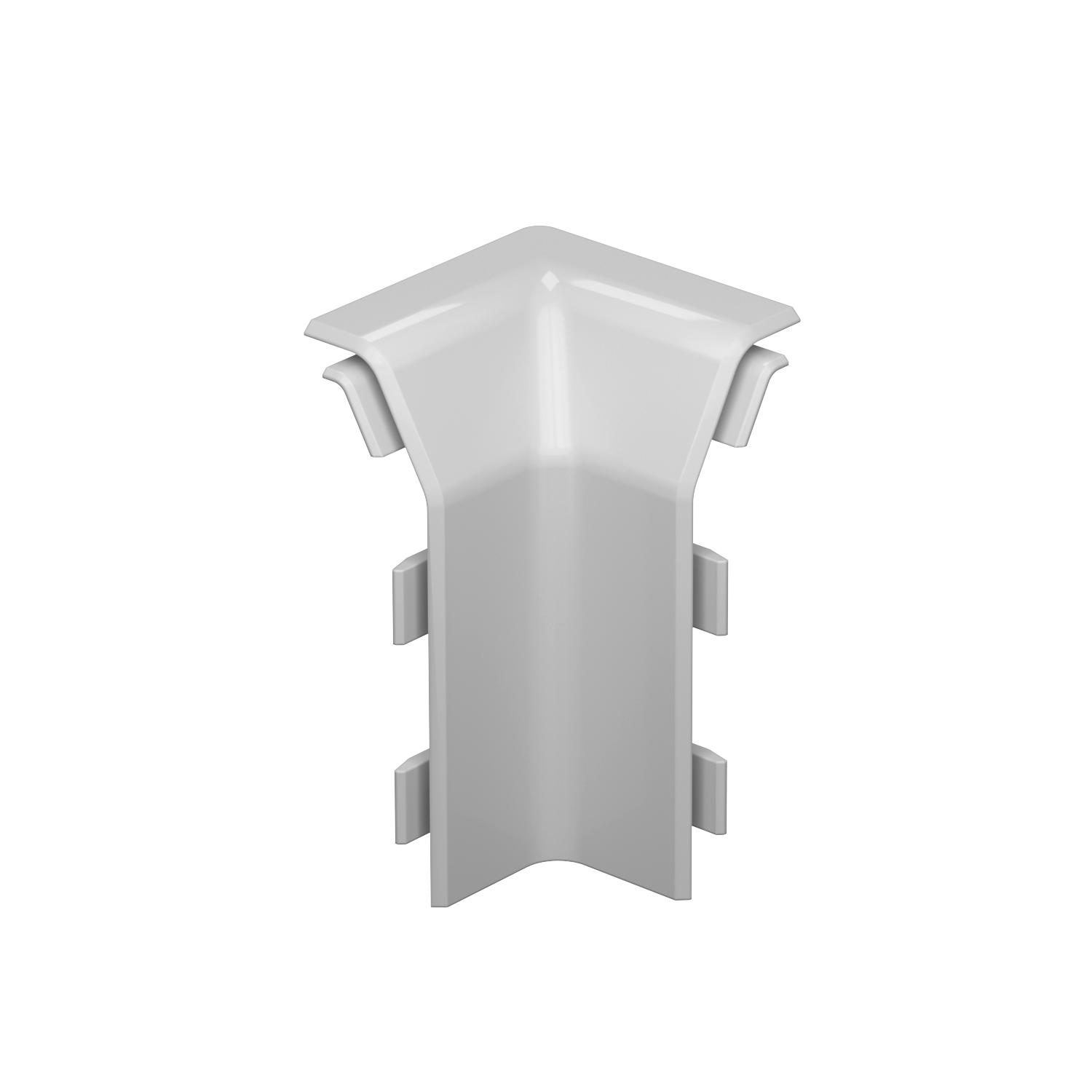

Product graphic SL IE2070 lgr / 6132255, 31.37 kB, jpg

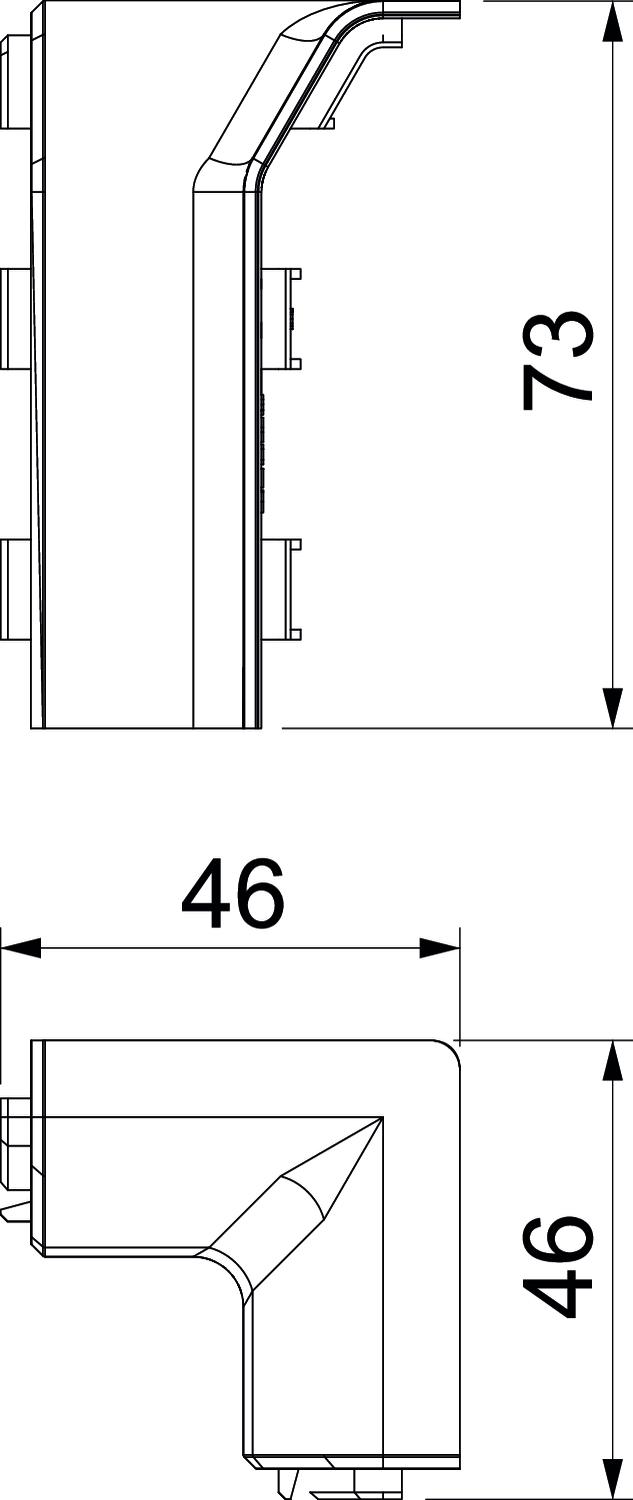

Scale drawing SL IE2070 lgr / 6132255, 49.68 kB, jpg
