Internal corner SLL IE2050

Item no. 6132240 | EAN 4012196720064

Product description

Product description

Internal corner as a fitting for changing the direction of the skirting trunking.

Technical data

Technical data

Angle range, min.	90 mm
Colour	Pure white; RAL 9010
Cover sealing lip	Wall/floor
Decoration	Without
Halogen-free	no
Height	60 mm
Length	45 mm
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK06
Version for	Hood fitting
Width	45 mm
With carpet strip	no

All types

All types

Types		Item no.	Quantity	SSU
SLL IE2050 rws		6132240	piece	10 piece
SLL IE2050 cws		6132241	piece	10 piece

Downloads

Brochure SL skirting trunking and RAUDUO electrical/heating trunking , 4.31MB , pdf

Label approval VDE symbol approval, SL skirting trunking , 0.27MB , pdf

Download

Selection aid Selection aid Skirting trunkings SL and Rauduo , 0.43MB , pdf

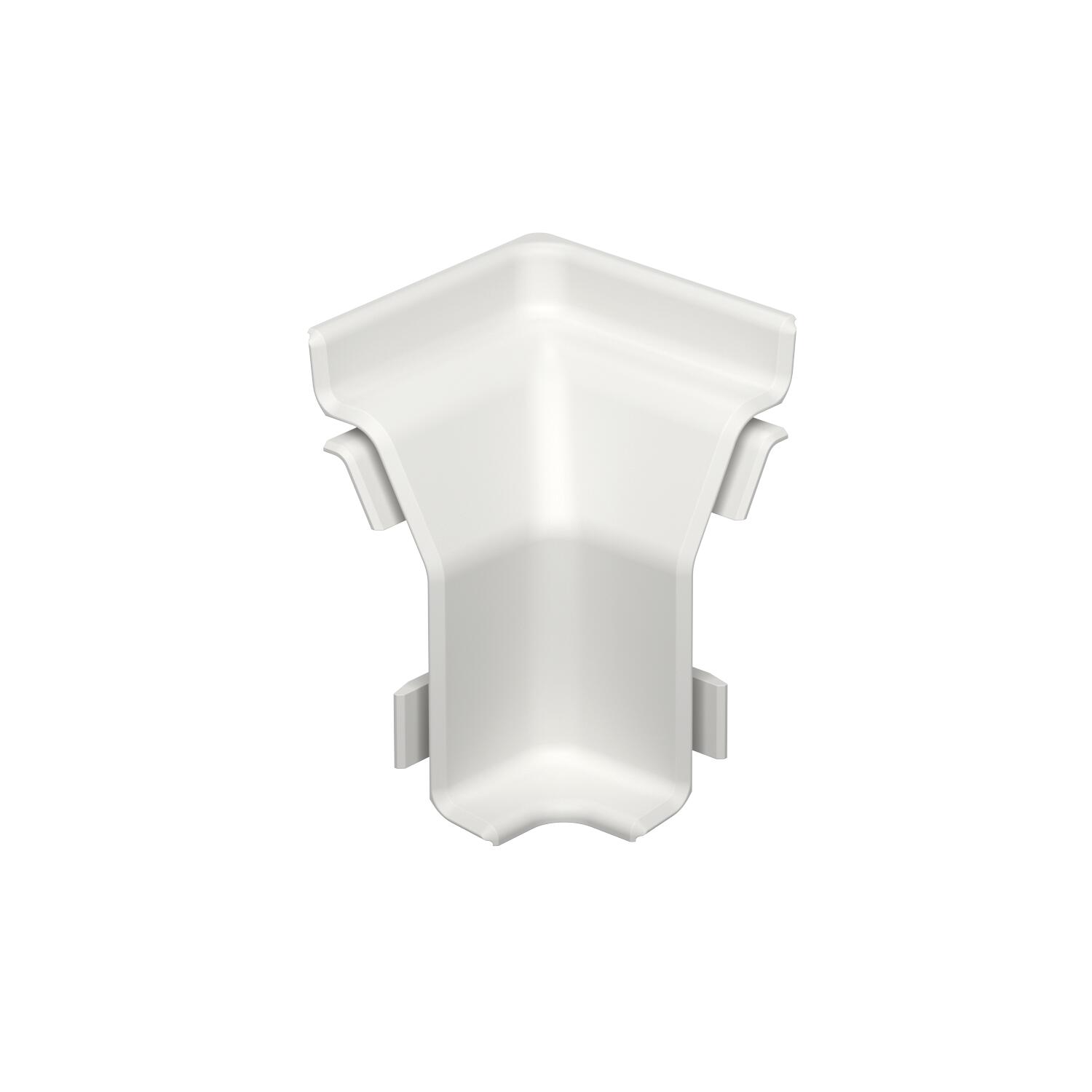

Product graphic SLL IE2050 rws / 6132240, 29.39 kB, jpg

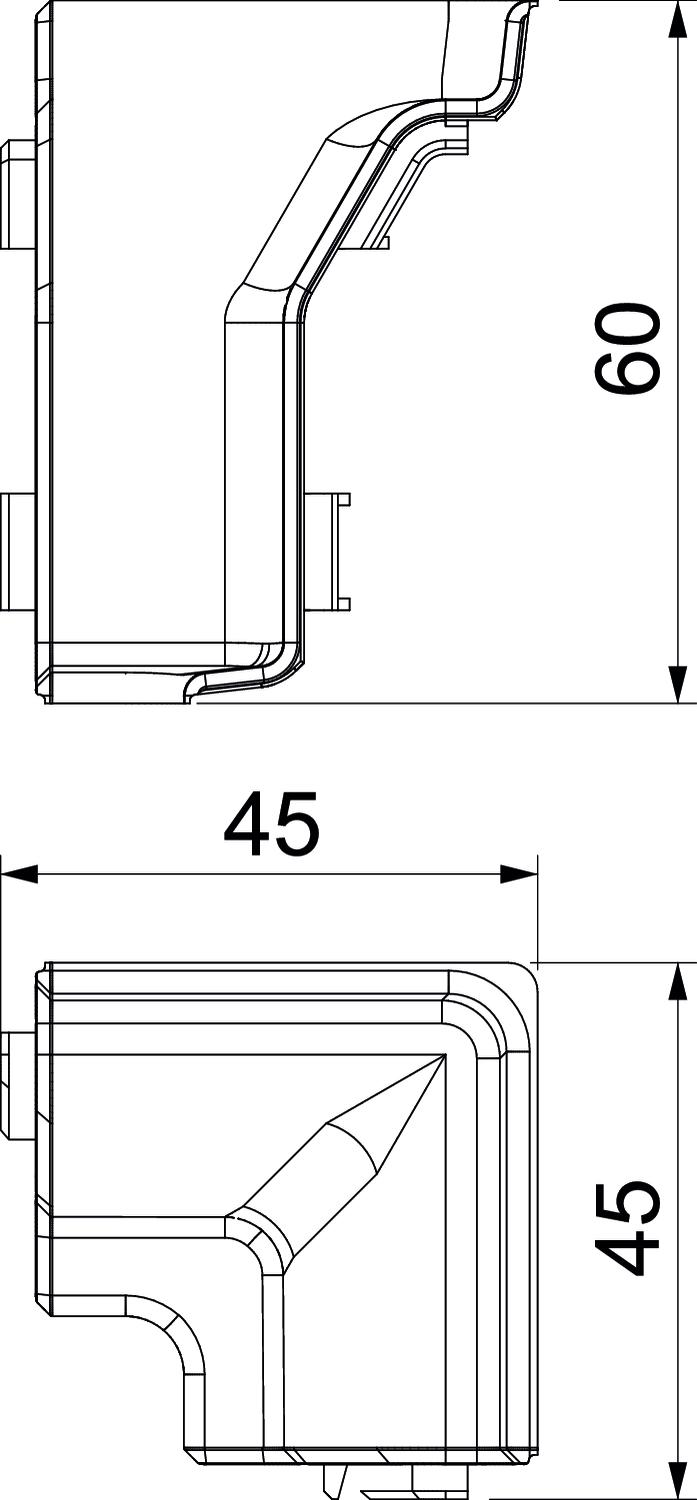

Scale drawing SLL IE2050 rws / 6132240, 66.48 kB, jpg

No invitation to tender text is available for this product.
