Internal corner SLL IE2050
morepic-1 morepic-2

Internal corner SLL IE2050

Item no. 6132241 | EAN 4012196720675

Product description

Product description

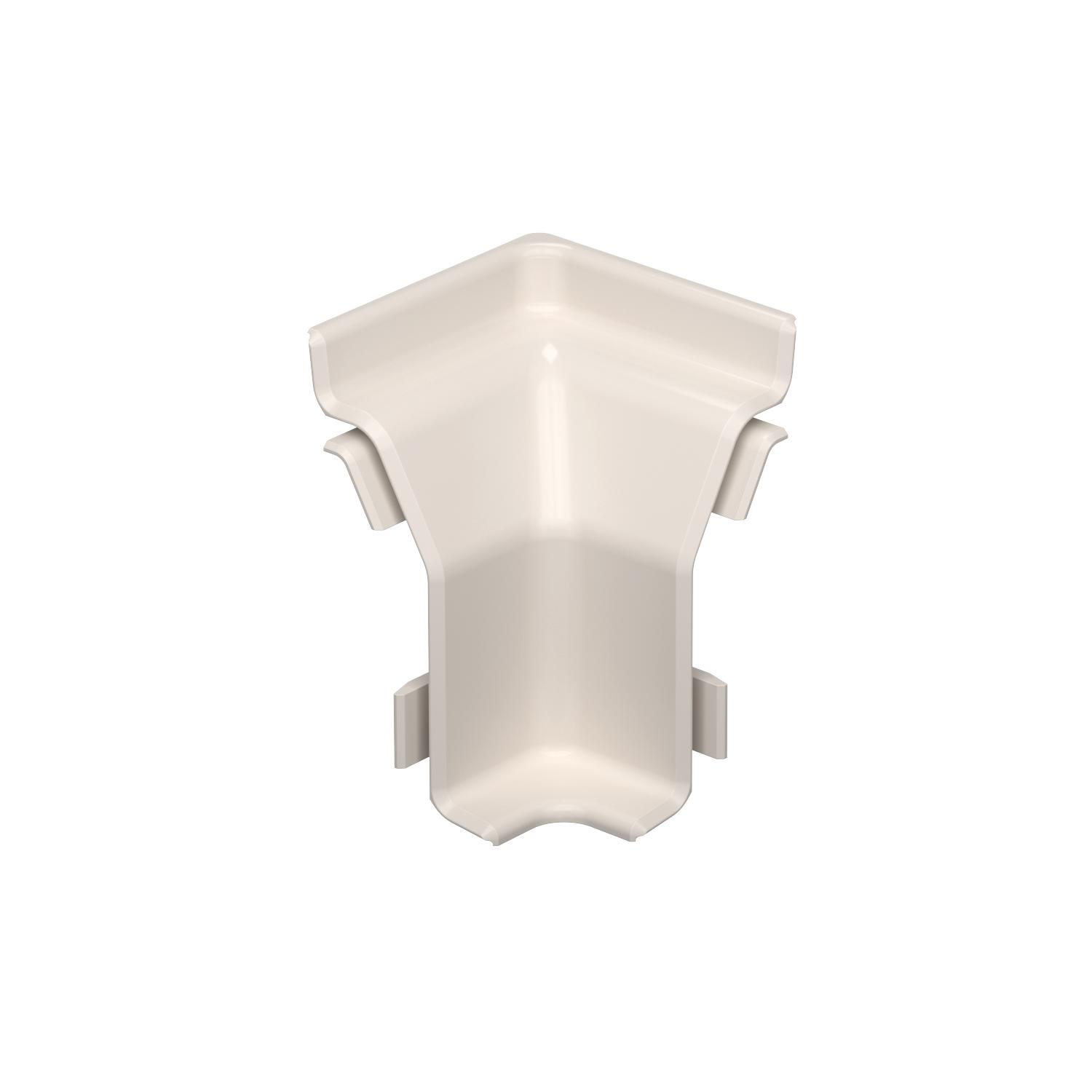

Internal corner as a fitting for changing the direction of the skirting trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Angle range, min. 90 mm
Colour Cream; RAL 9001
Cover sealing lip Without
Decoration Without
Halogen-free no

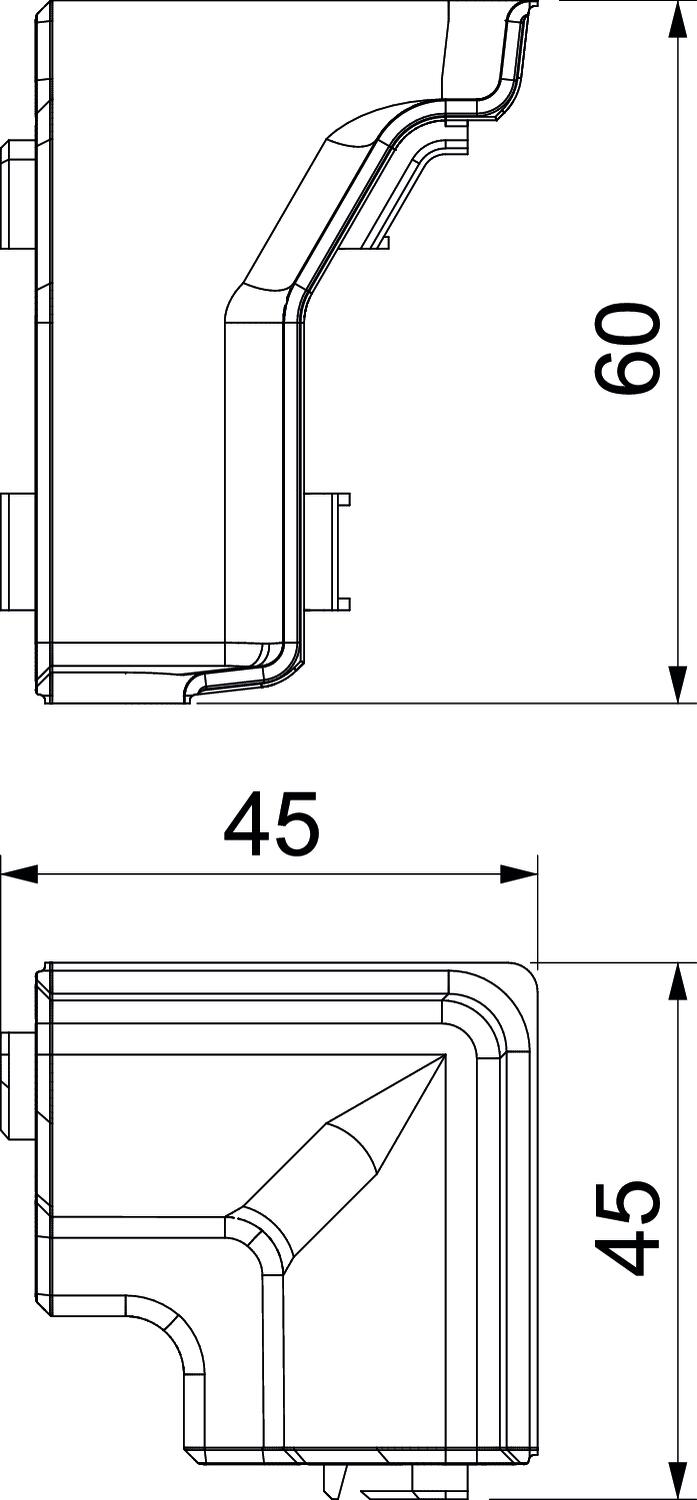

Height 60 mm
Length 45 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK06
Version for Hood fitting
Width 45 mm
With carpet strip no
All types

All types

Types Item no. Quantity SSU
SLL IE2050 rws 6132240
10 piece
SLL IE2050 cws 6132241
10 piece
Downloads

Download

Download

Download

No invitation to tender text is available for this product.
