Internal corner SLL IE2070
morepic-1 morepic-2

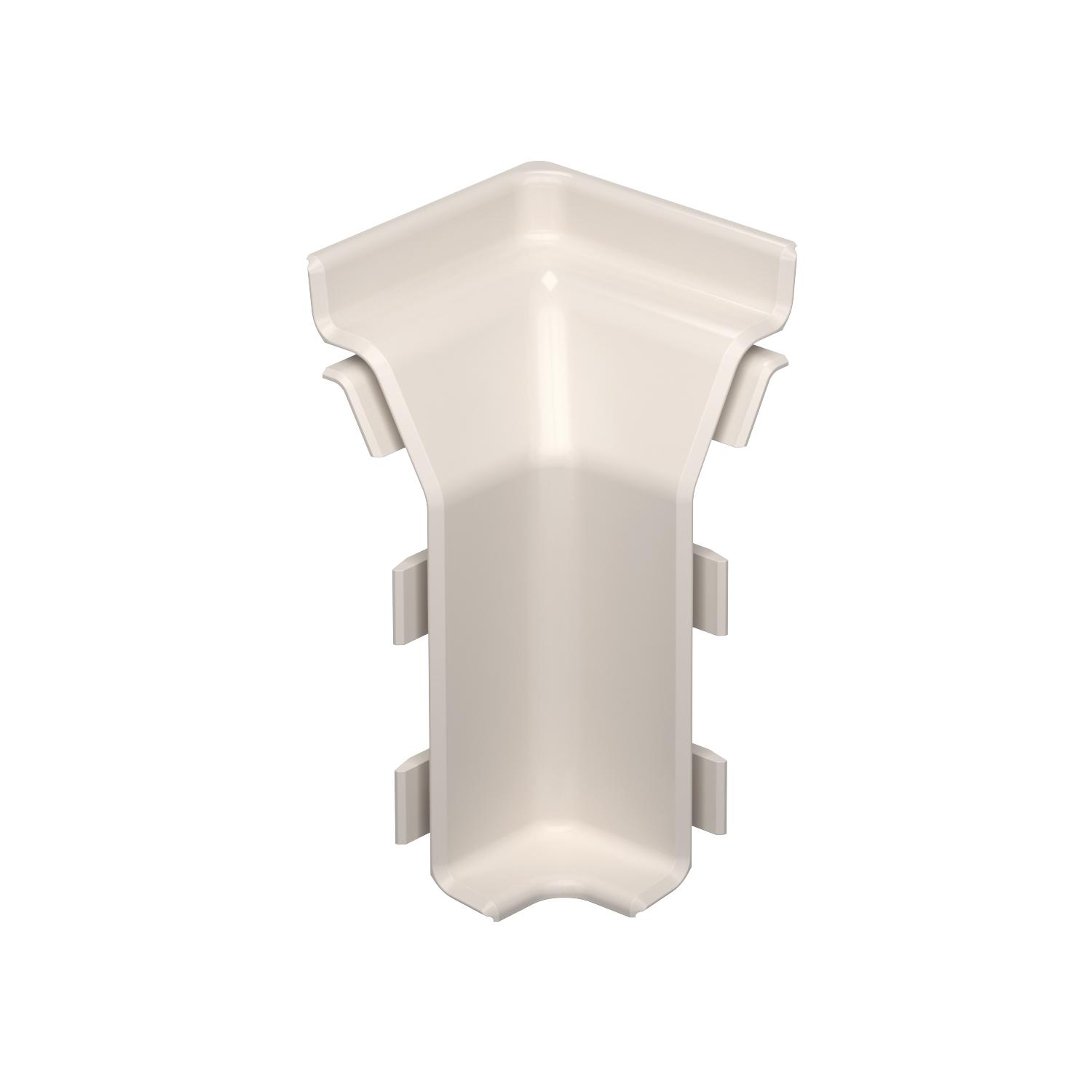

Internal corner SLL IE2070

Item no. 6132244 | EAN 4012196720705

Product description

Product description

Internal corner as a fitting for changing the direction of the skirting trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives

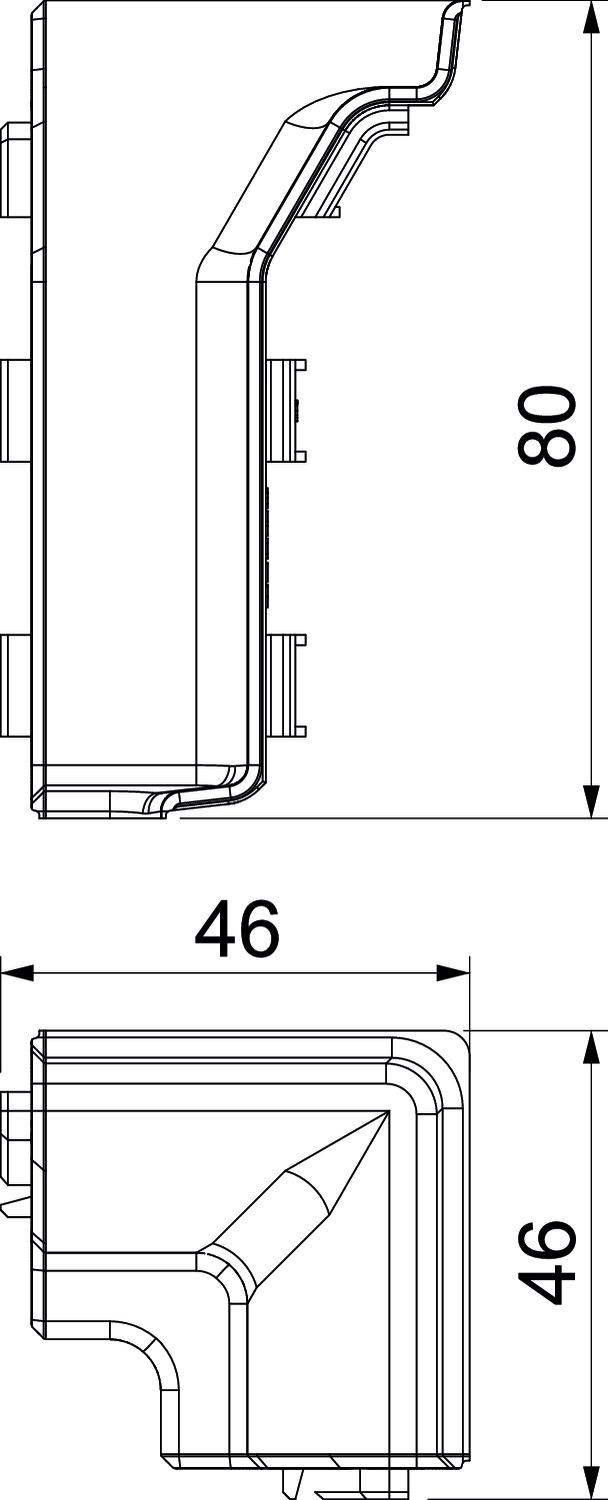

Technical data

Technical data

Angle range, min. 90 mm
Colour Cream; RAL 9001
Cover sealing lip Without
Decoration Without
Halogen-free no
Height 80 mm
Length 46 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK06
Version for Hood fitting
Width 46 mm
With carpet strip no
All types

All types

Types Item no. Quantity SSU
SLL IE2070 rws 6132243
10 piece
SLL IE2070 cws 6132244
10 piece
Downloads

Download

Download

Download

No invitation to tender text is available for this product.
