Internal corner, without height adjustment unit 250

Internal corner, without height adjustment unit

Item no. 7403826 | EAN 4012195845973

Item no. / Types	7403826 / OKB IE 25085 ON

Width	250 mm

Product description

Product description

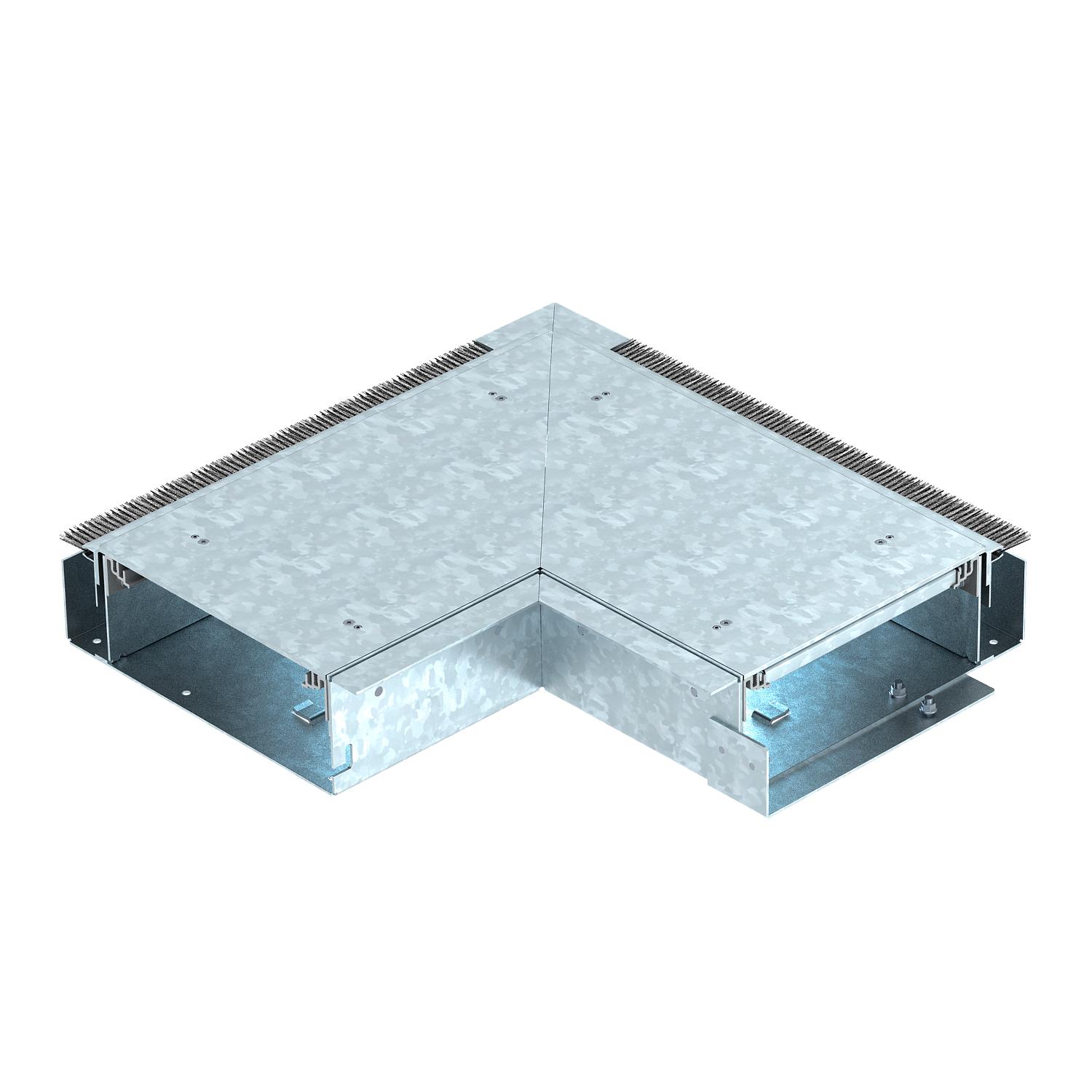

Ready-to-mount internal corner, consisting of a trunking base, two lids, height-adjustable side profiles and brush bar arranged on the wall side for cable alignment. The scope of delivery contains one lid butt seal and a connector.
For height adjustment five levelling units are required.

Technical data

Technical data

Cover fastening, locking	no
Decouplable	yes

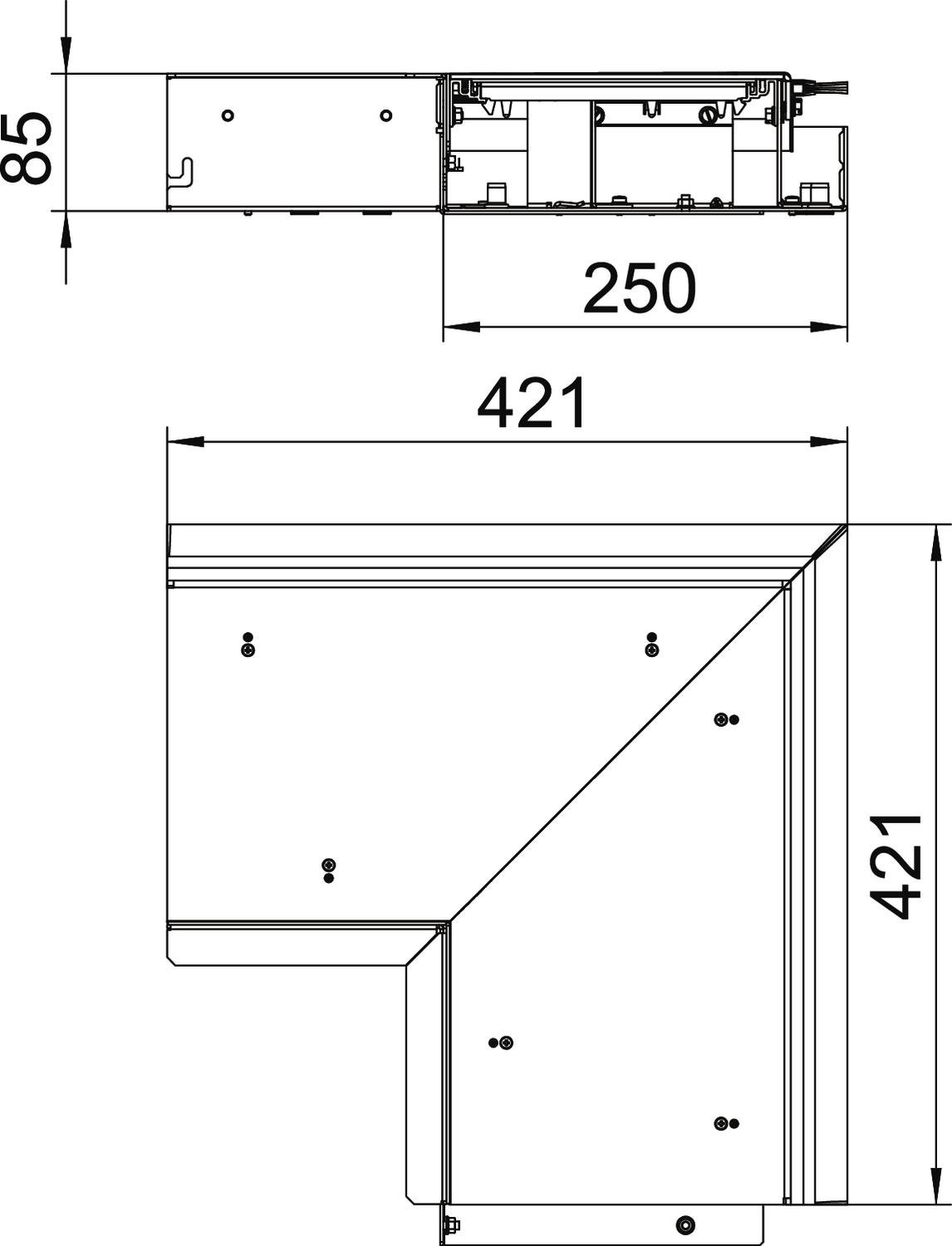

Dimension	421x421x87
Dimension h	93 mm
Floor care	Dry
Floor plate	yes
Function	Internal corner
Height	93 mm
Installation opening for on-floor tank	no
Length	421 mm
Material	Steel
Minimum screed height	93
Mounting opening cover	no

Removable cover	yes
Seal installation option	no
Separating retainer fastening	Plug
Suitable for expansion joint	no
Suitable for flushfloor, open underfloor trunking	yes
Suitable for screed-covered underfloor ducts	no
Suitable for screed-flush closed underfloor ducts	no
Surface	Strip galvanized
Width	250 mm
With connection opening	no
With equipotential bonding	no
With overhang	yes
With separating retainer	no
