isCon® conductor, Premium black

Item no. 5408018 | EAN 4012196591657

5408018 / isCon PR 90 SW
23 mm
0.9
100
35 mm²
Product description

Product description

Please refer to the mounting instructions for information on routing the OBO isCon® Premium conductor.

• Highly voltage-resistant, insulated conductor
• Floating discharge-free
• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H2/200 kA
• Equivalent separation distance se ≤ 0.90 m (air) and se ≤ 1.8 m (solid material)
• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
• Halogen-free
• Fire load 4.2 kWh/m



  • Lightning current-tested
  • Halogen-free; without chlorine, fluorine and bromine
Technical data

Technical data

Colour Black

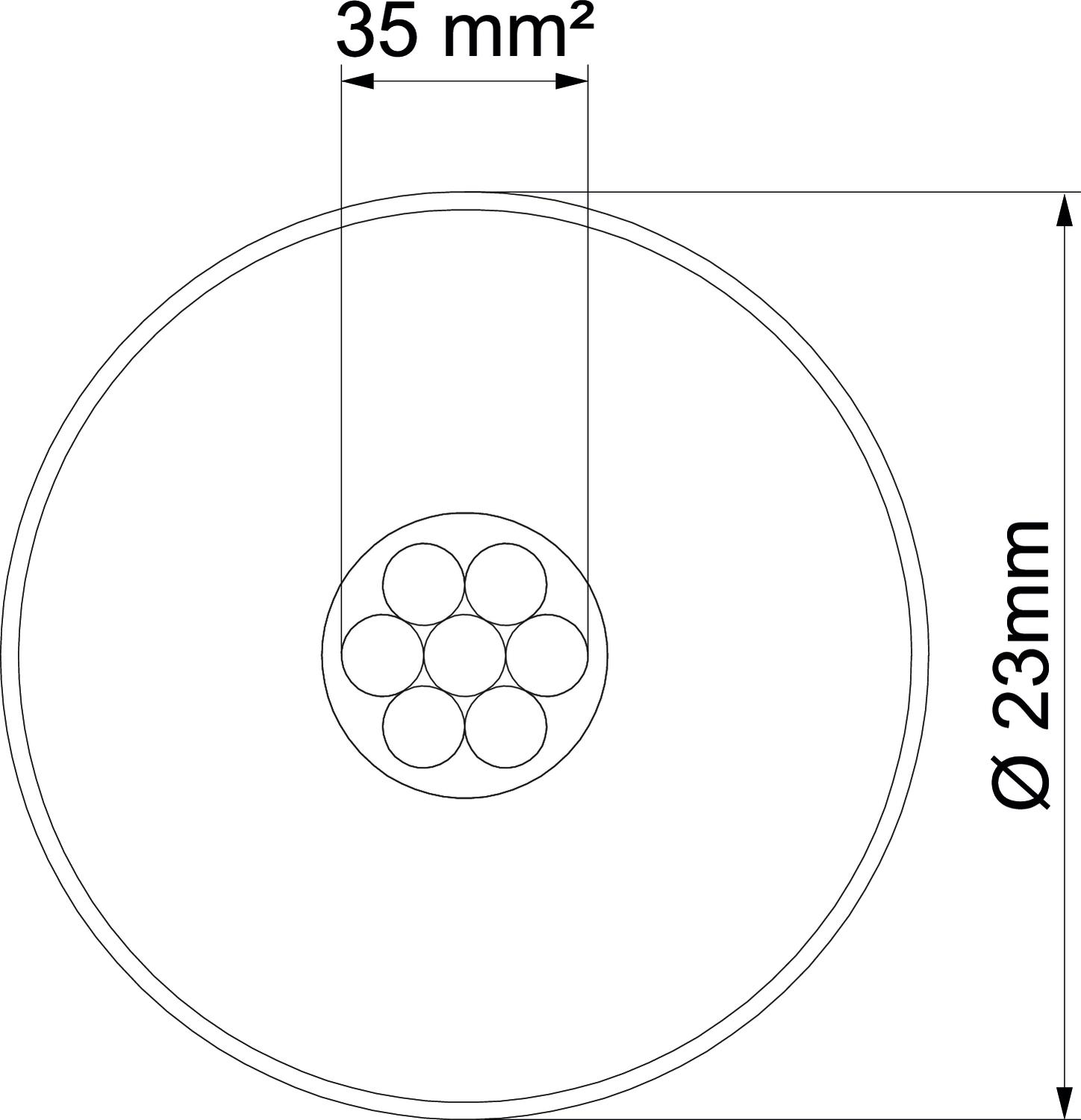

Cross-section 35 mm²
Diameter 23 mm
Dimension Ø23mm
equivalent separating distance s(e)/m 0,9
Length tolerance ± 5 %
Nomal ring (approx. m) 100
All types

All types

Types Diameter equivalent separating distance s(e)/m Nomal ring (approx. m) Cross-section Item no. Quantity SSU
isCon PR 90 SW 23 mm 0.9 100 35 mm² 5408018
100 m
Accessories

System accessories

Products Types Item no. Quantity SSU

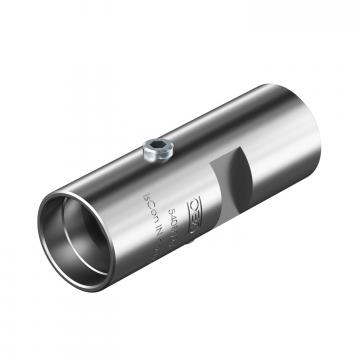

Connection element for installation in the insulated air-termination rod isFang IN Connection element for installation in the insulated air-termination rod isFang IN isCon IN con PRE 5408020
15 piece

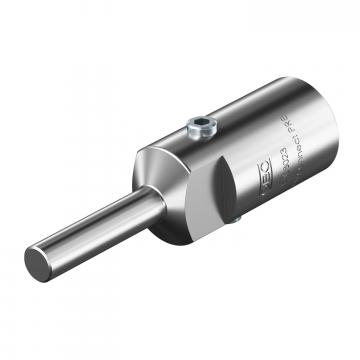

isCon® connection element isCon® connection element isCon con PRE 5408023
2 piece
Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod isCon IN PAE 5408031
15 piece
Potential connection Potential connection isCon PAE 5408036
2 piece
VA cable bracket for isCon® conductor for mounting on roof/wall structures VA cable bracket for isCon® conductor for mounting on roof/wall structures isCon H VA 5408056
50 piece

Mounting accessories

Products Types Item no. Quantity SSU
Stripping tool for isCon® conductor Stripping tool for isCon® conductor isCon stripper 2 5408013
1 piece
