isCon® conductor, Professional black

Item no. 5408008 | EAN 4012196591640

5408008 / isCon Pro 75 SW
20 mm
0.75
100
35 mm²
Product description

Product description

Please refer to the mounting instructions for information on routing the OBO isCon® Pro conductor.

• Highly voltage-resistant, insulated conductor
• Floating discharge-free
• For maintenance of the separation distance according to IEC 62305 (VDE 0185-305-3)
• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H1/150 kA
• Equivalent separation distance se ≤ 0.75 m (air) and se ≤ 1.5 m (solid material)
• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
• Halogen-free
• Fire load 3.3 kWh/m

  • Lightning current-tested
  • Halogen-free; without chlorine, fluorine and bromine
Technical data

Technical data

Colour Black

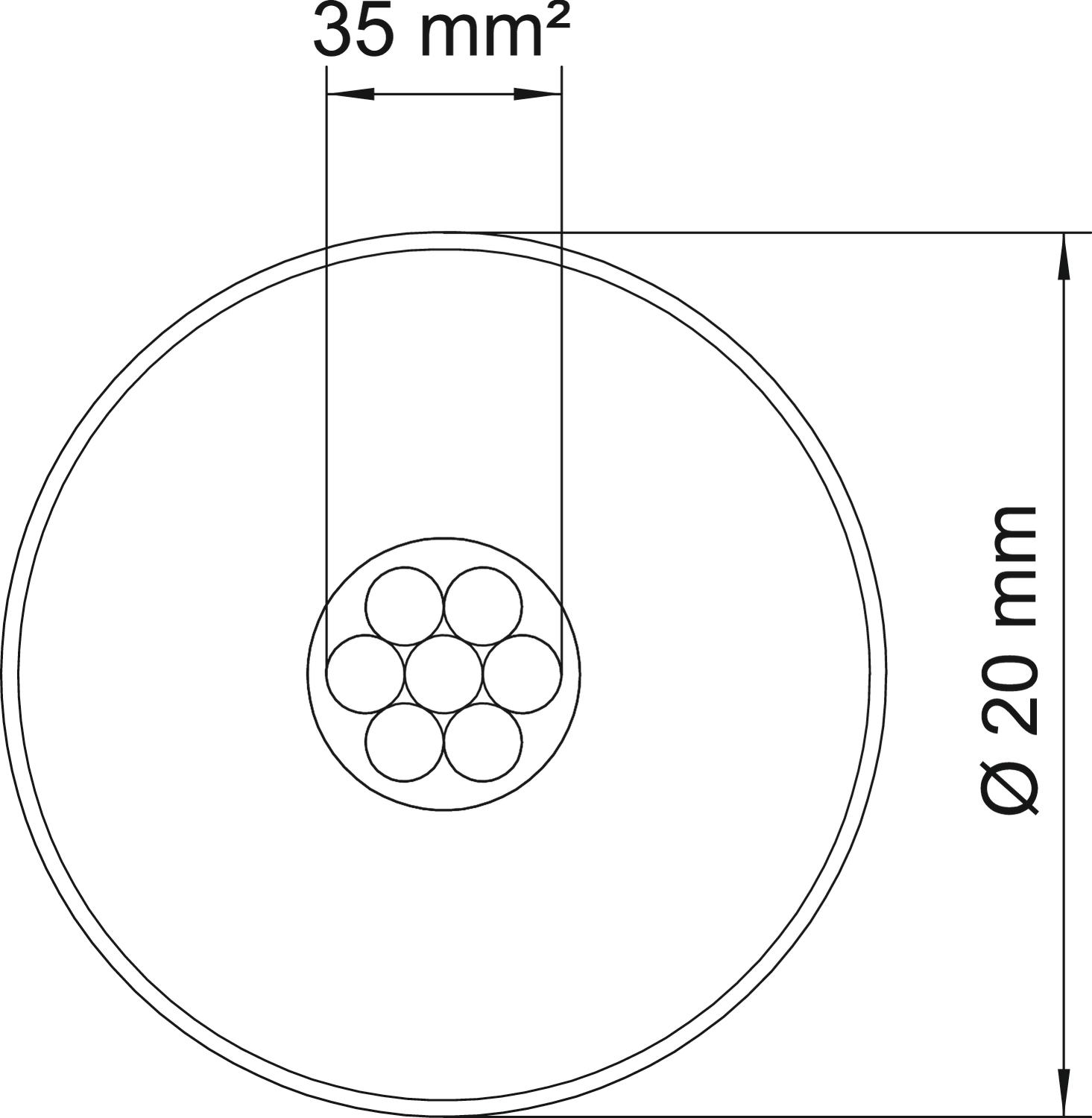

Cross-section 35 mm²
Diameter 20 mm
Dimension Ø20mm
equivalent separating distance s(e)/m 0,75
Length tolerance ± 5 %
Nomal ring (approx. m) 100
All types

All types

Types Diameter equivalent separating distance s(e)/m Nomal ring (approx. m) Cross-section Item no. Quantity SSU
isCon Pro 75 SW 20 mm 0.75 100 35 mm² 5408008
100 m
Accessories

System accessories

Products Types Item no. Quantity SSU

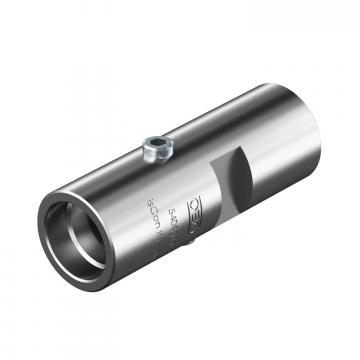

Connection element for installation in the insulated interception rod isFang IN Connection element for installation in the insulated interception rod isFang IN isCon IN con 2 5408019
15 piece

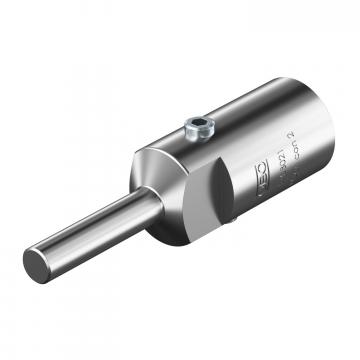

isCon® connection element isCon® connection element isCon con 2 5408021
2 piece

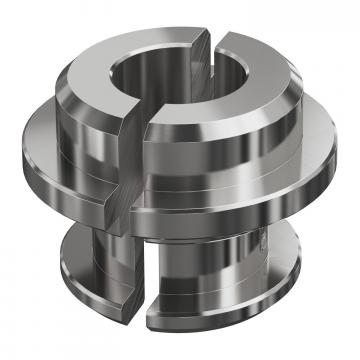

Potential connection for isCon® Basic and Professional in the isFang IN insulated air-termination rod Potential connection for isCon® Basic and Professional in the isFang IN insulated air-termination rod isCon IN PAE 2 5408032
20 piece
Potential connection Potential connection isCon PAE 5408036
2 piece

Mounting accessories

Products Types Item no. Quantity SSU

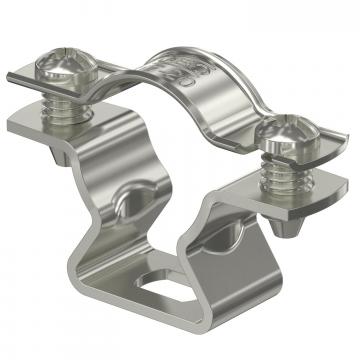

Spacer clip 733 A2 Spacer clip 733 A2 ASL 733 20 A2 1362984
25 piece
Stripping tool for isCon® conductor Stripping tool for isCon® conductor isCon stripper 2 5408013
1 piece
