isCon® conductor, Professional plus black

Item no. 5408002 | EAN 4012195674573

35 mm²
Product description

Product description

Please refer to the mounting instructions for information on routing the OBO isCon® conductor.


• Highly voltage-resistant, insulated conductor

• Floating discharge-free

• Additional mechanical protection (black protective jacket)

• For maintenance of the separation distance according to IEC 62305 (VDE 0185-305-3)

• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H1/150 kA

• Equivalent separation distance se ≤ 0.75 m (air) and se ≤ 1.5 (solid material)

• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)

• Halogen-free

• Fire load 4.3 kWh/m

• Can be used in potentially explosive areas Ex zone 1/2 and 21/22 when taking the current mounting instructions into account


  • Lightning current-tested
  • Halogen-free; without chlorine, fluorine and bromine
Technical data

Technical data

Colour Black

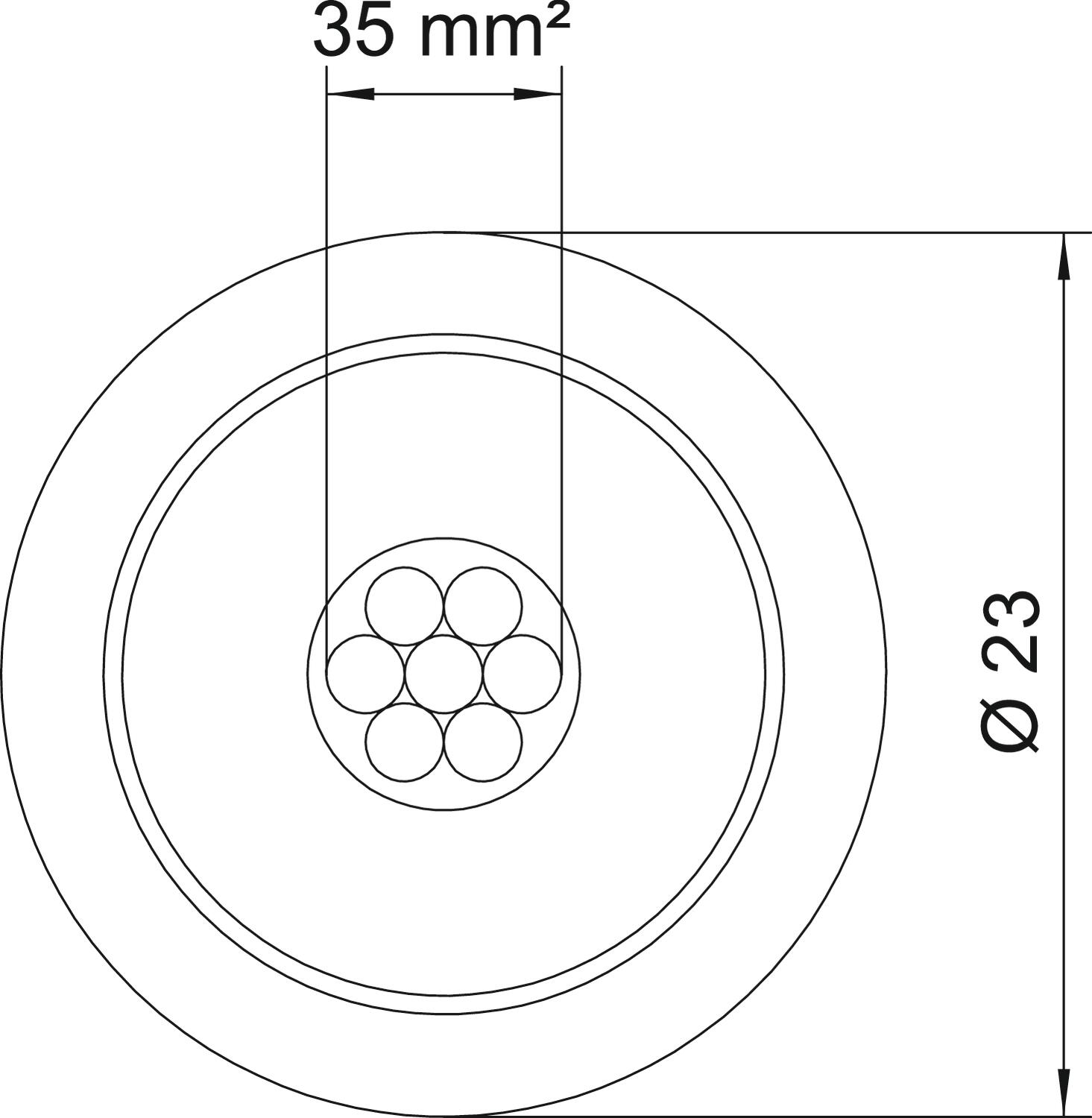

Cross-section 35 mm²
Diameter 23 mm
Dimension Ø23mm
equivalent separating distance s(e)/m 0,75
High voltage-resistant, insulated version yes
Length tolerance ± 5 %
Nomal ring (approx. m) 25
All types

All types

Types Diameter equivalent separating distance s(e)/m Nomal ring (approx. m) Cross-section Item no. Quantity SSU
isCon Pro+ 75 SW 23 mm 0.75 25 35 mm² 5408002
25 m
isCon Pro+ 75 SW 23 mm 0.75 100 35 mm² 5408004
100 m
isCon Pro+ 75 SW 23 mm 0.75 250 35 mm² 5408006
250 m
isCon BA 45 SW 20 mm 0.45 100 35 mm² 5408014
100 m
Accessories

System accessories

Products Types Item no. Quantity SSU
isCon® connection element isCon® connection element isCon connect 5408022
2 piece
Connection element for installation in the insulated interception rod isFang IN Connection element for installation in the insulated interception rod isFang IN isCon IN connect 5408024
15 piece
Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod isCon IN PAE 5408031
15 piece
Potential connection Potential connection isCon PAE 5408036
2 piece

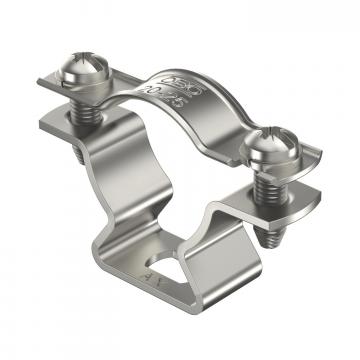

VA cable bracket for isCon® conductor for mounting on roof/wall structures VA cable bracket for isCon® conductor for mounting on roof/wall structures isCon H VA 5408056
50 piece

Mounting accessories

Products Types Item no. Quantity SSU
Stripping tool for isCon® conductor Stripping tool for isCon® conductor isCon stripper 2 5408013
1 piece
