isCon® conductor, Professional plus light grey 26 | 0.75 | 100 | 35

isCon® conductor, Professional plus light grey

Item no. 5407997 | EAN 4012195888154

Item no. / Types

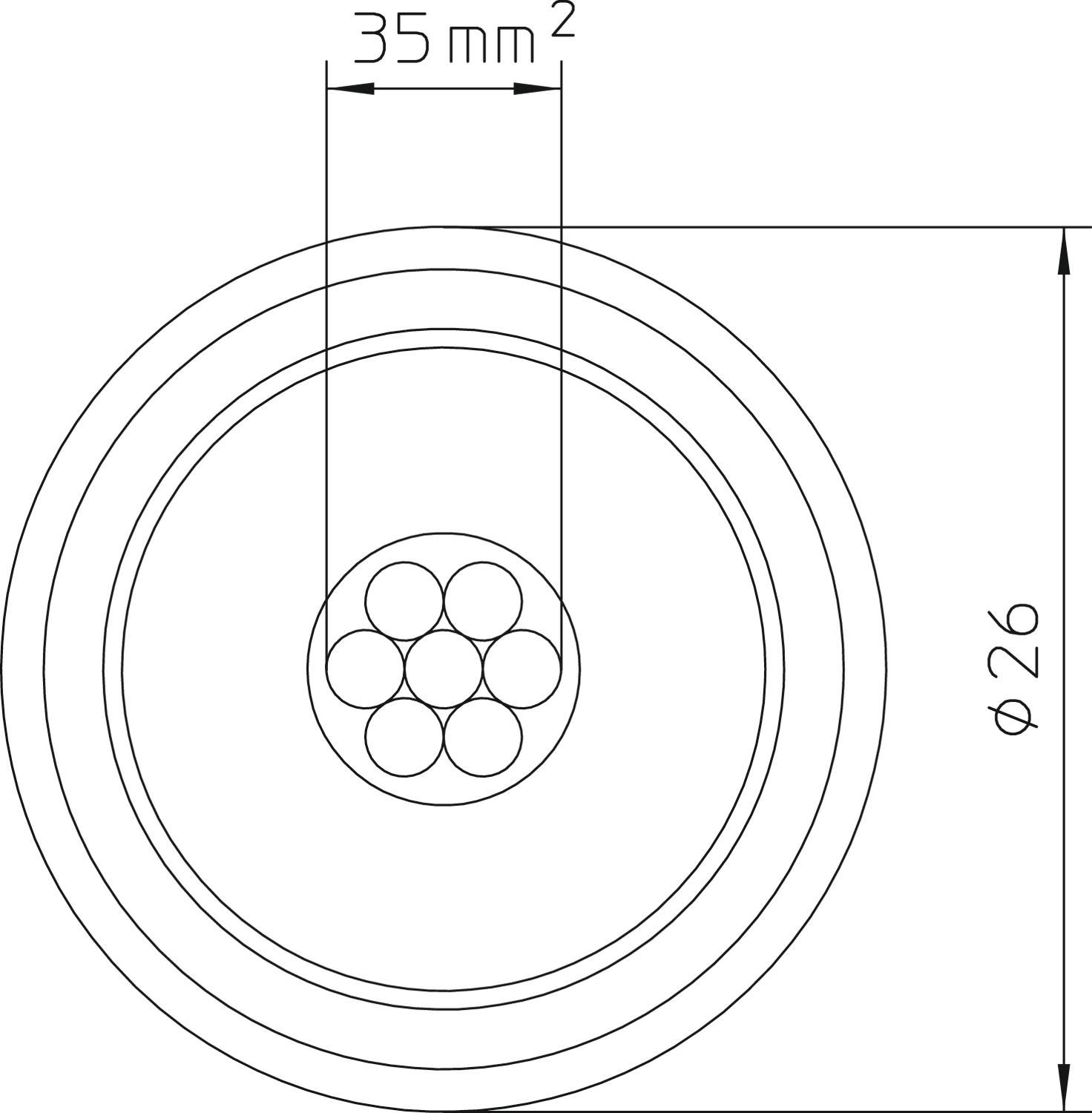

Diameter	26 mm

equivalent separating distance s(e)/m	0.75

Nomal ring (approx. m)

Cross-section	35 mm²

Product description

Product description

Please refer to the mounting instructions for information on routing the OBO isCon® conductor.

• Highly voltage-resistant, insulated conductor

• Protection against contact voltage during rain (VDE 0432-1 (IEC/EN 60060-1)

• Floating discharge-free

• Additional mechanical protection (double protective jacket)

• For maintenance of the separation distance according to IEC 62305 (VDE 0185-305-3)

• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H1/150 kA

• Equivalent separation distance se ≤ 0.75 m (air) and se ≤ 1.5 (solid material)

• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)

• Halogen-free

• Fire load 5.1 kWh/m

• Protection against contact voltage under sprinkling (VDE 0432-1 (IEC/EN 60060-1)

• Can be used in potentially explosive areas Ex zone 1/2 and 21/22 when taking the current mounting instructions into account

Technical data

Technical data

Colour	Light grey
Cross-section	35 mm²
Diameter	26 mm
Dimension	Ø26mm

equivalent separating distance s(e)/m	0,75
High voltage-resistant, insulated version	yes
Length tolerance ±	5 %
Nomal ring (approx. m)	100

All types

All types

Types	Diameter	equivalent separating distance s(e)/m	Nomal ring (approx. m)	Cross-section	Item no.	Quantity	SSU
isCon Pro+ 75 GR	26 mm	0.75	25	35 mm²	5407995	m	25 m
isCon Pro+ 75 GR	26 mm	0.75	100	35 mm²	5407997	m	100 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
isCon® connection element	isCon connect	5408022	piece	2 piece
Connection element for installation in the insulated interception rod isFang IN	isCon IN connect	5408024	piece	15 piece
Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod	isCon IN PAE	5408031	piece	15 piece

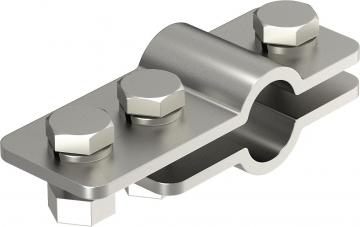

Potential connection	isCon PAE	5408036	piece	2 piece
VA cable bracket for isCon® conductor for mounting on roof/wall structures	isCon H 26 VA	5408064	piece	20 piece
