- Product description
-
Product description
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4

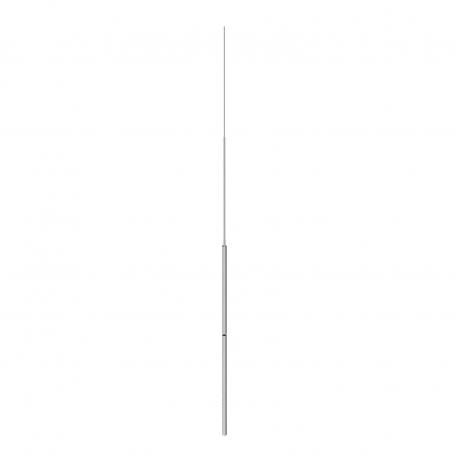

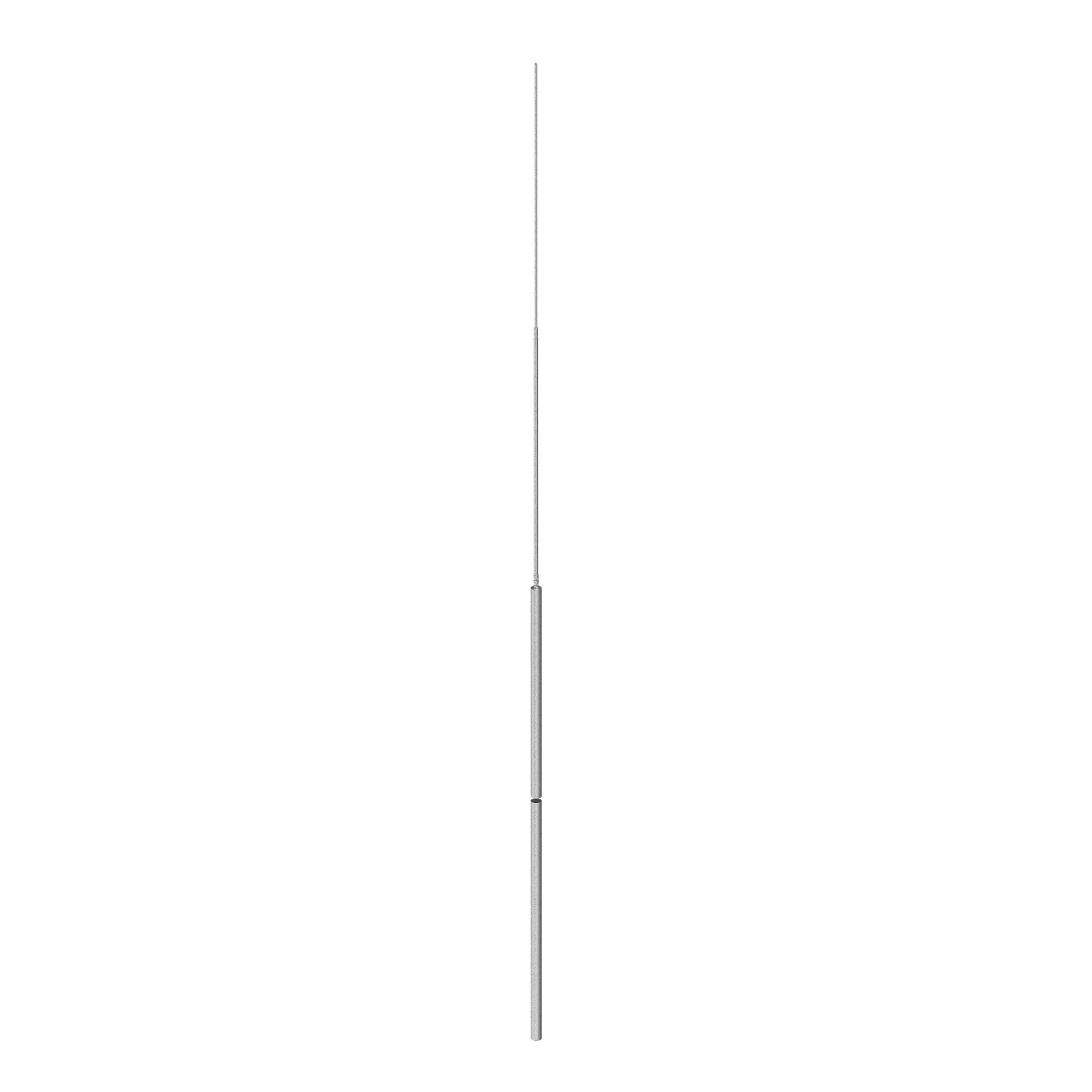

• Tapered air-termination rod
• Suitable for 40 mm isFang tripod stand and isFang support systems
- Technical data
-
Technical data

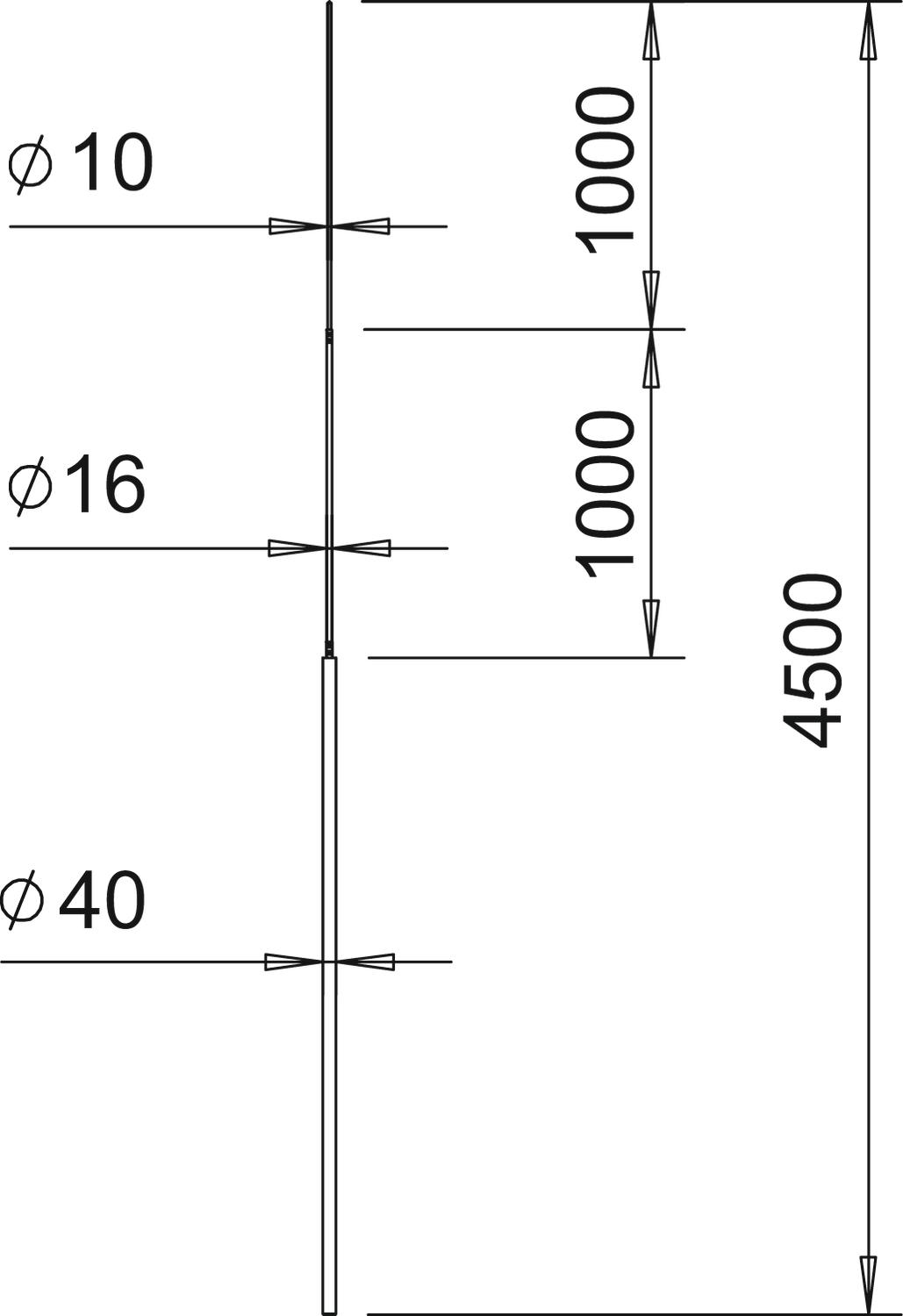

Dimension 4500mm Dimension B 2500 mm Dimension D 1000 mm Dimension H 1000 mm High voltage-resistant, insulated version no Length 4500 mm Material Aluminium Nominal size Ø 40/ 16/ 10 mm Version for Air-termination rod with stand - All types
-
All types
- Downloads
-
Data sheet 101 3B-4500 / 5402866 , 0.14MB , pdfDeclaration of conformity 101 3B-4500 / 5402866 , 0.06MB , pdfREACH Declaration of conformity 101 3B-4500 / 5402866 , 0.12MB , pdfRoHS Declaration of conformity 101 3B-4500 / 5402866 , 0.12MB , pdf
