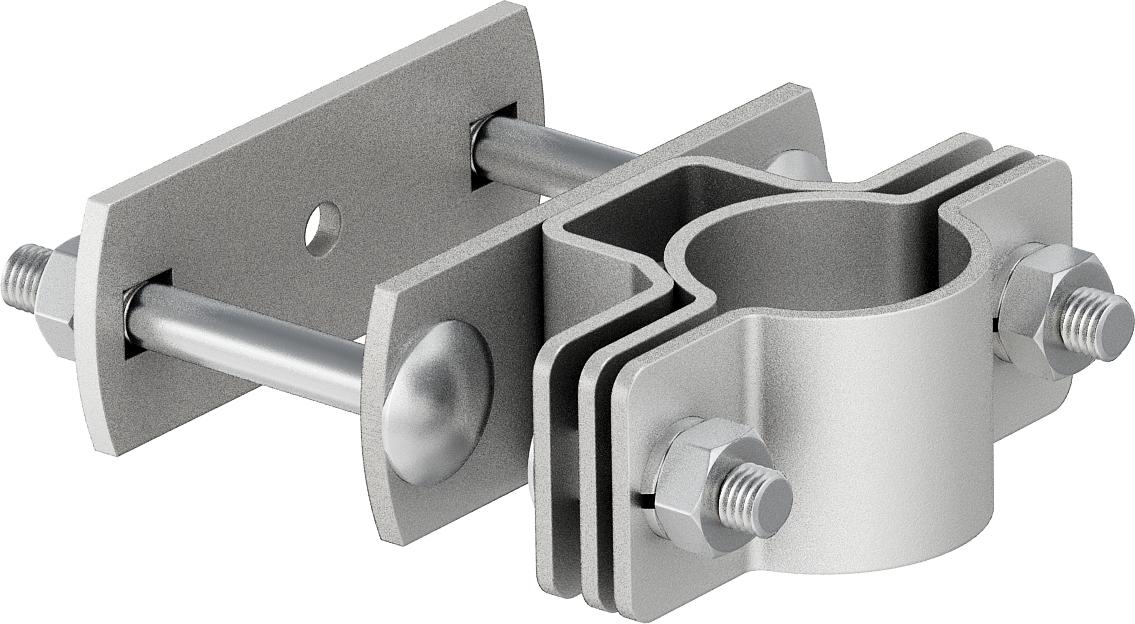

isFang support for corner pipe mounting, 50 x 50 mm

Item no. 5408964 | EAN 4012195670131

5408964 / isFang TS50x50
30 mm
50x50 mm
Product description
Product description
Fastening clip to fasten the insulated support pipes on the structure to be protected or for construction-side corner pipes of 50x50 mm.
Technical data

Technical data

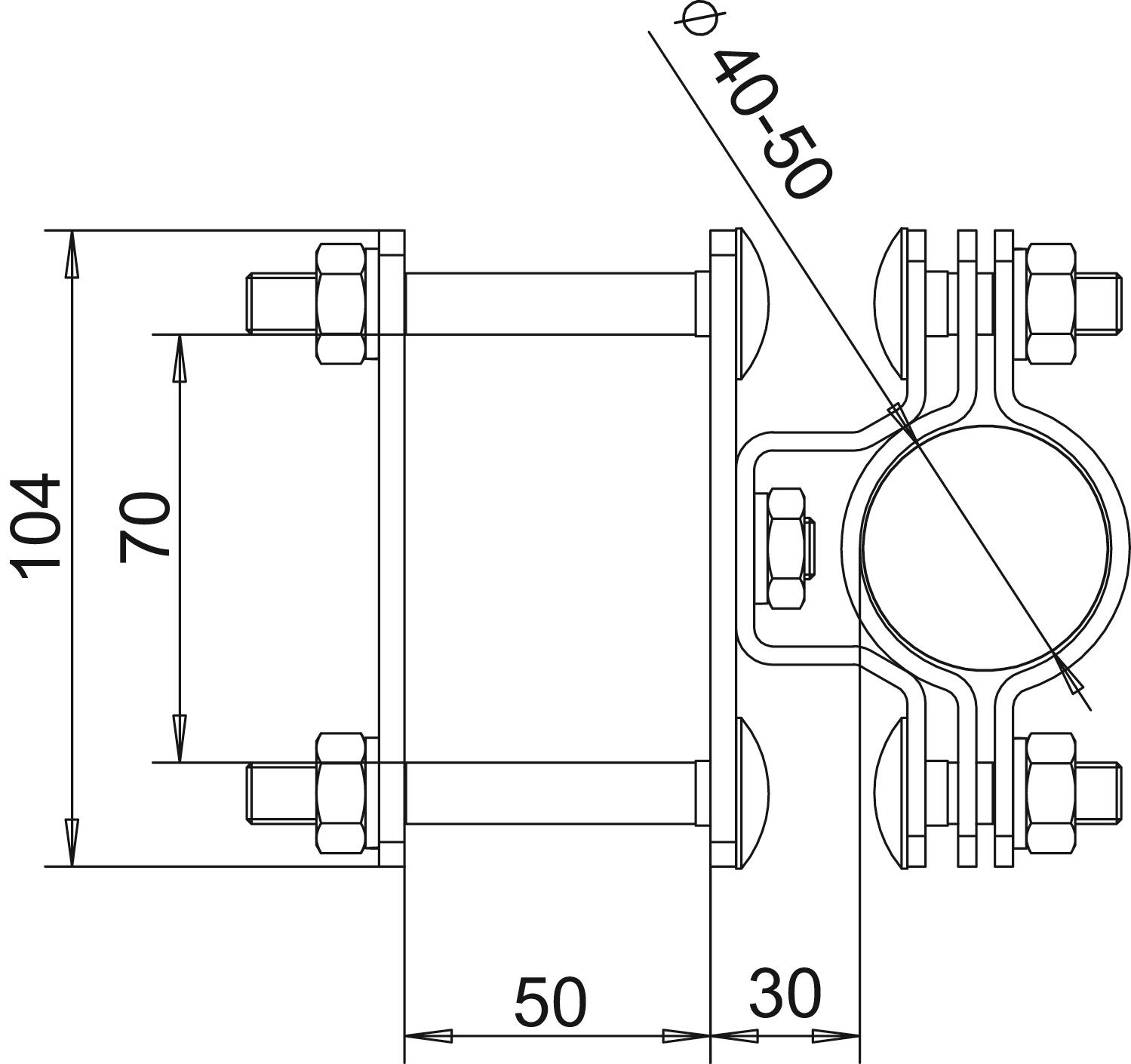

Dimension 50x50mm
Dimension d min. 50 mm
Dimension L 30 mm
Fit 50x50 mm
Material Stainless steel
All types

All types

Types Dimension L Fit Item no. Quantity SSU
isFang TS50x50 30 mm 50x50 mm 5408964
2 piece
Downloads

Download

Download
Download

EU declaration of conformity isFang TS50x50 / 5408964 , 0.06MB , pdf
