isFang support for pipe mounting, ø 40−50 mm

Item no. / Types	5408958 / isFang TS40-50

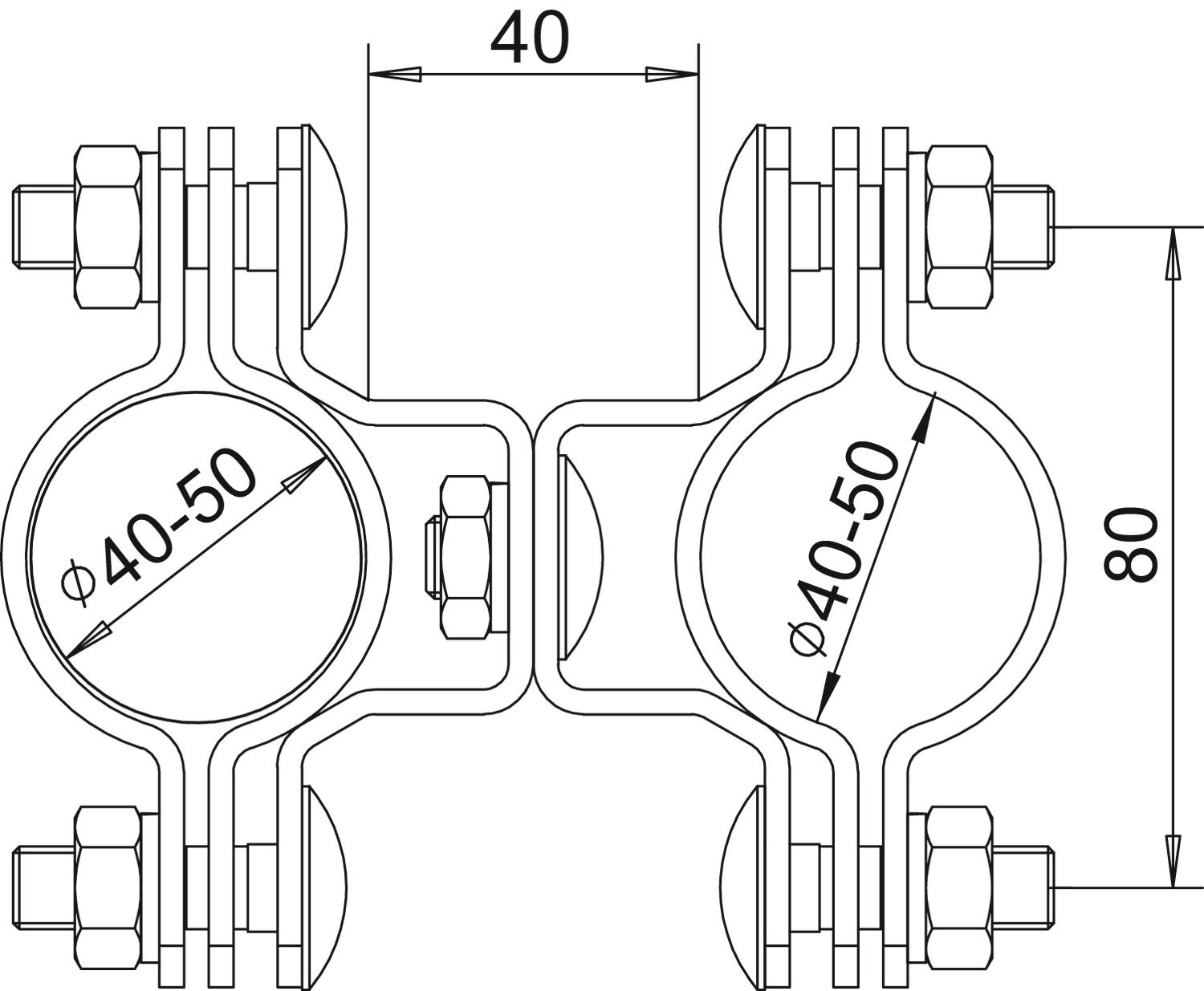

Dimension L	40 mm

Fit	ø 40–50 mm

Product description

Product description

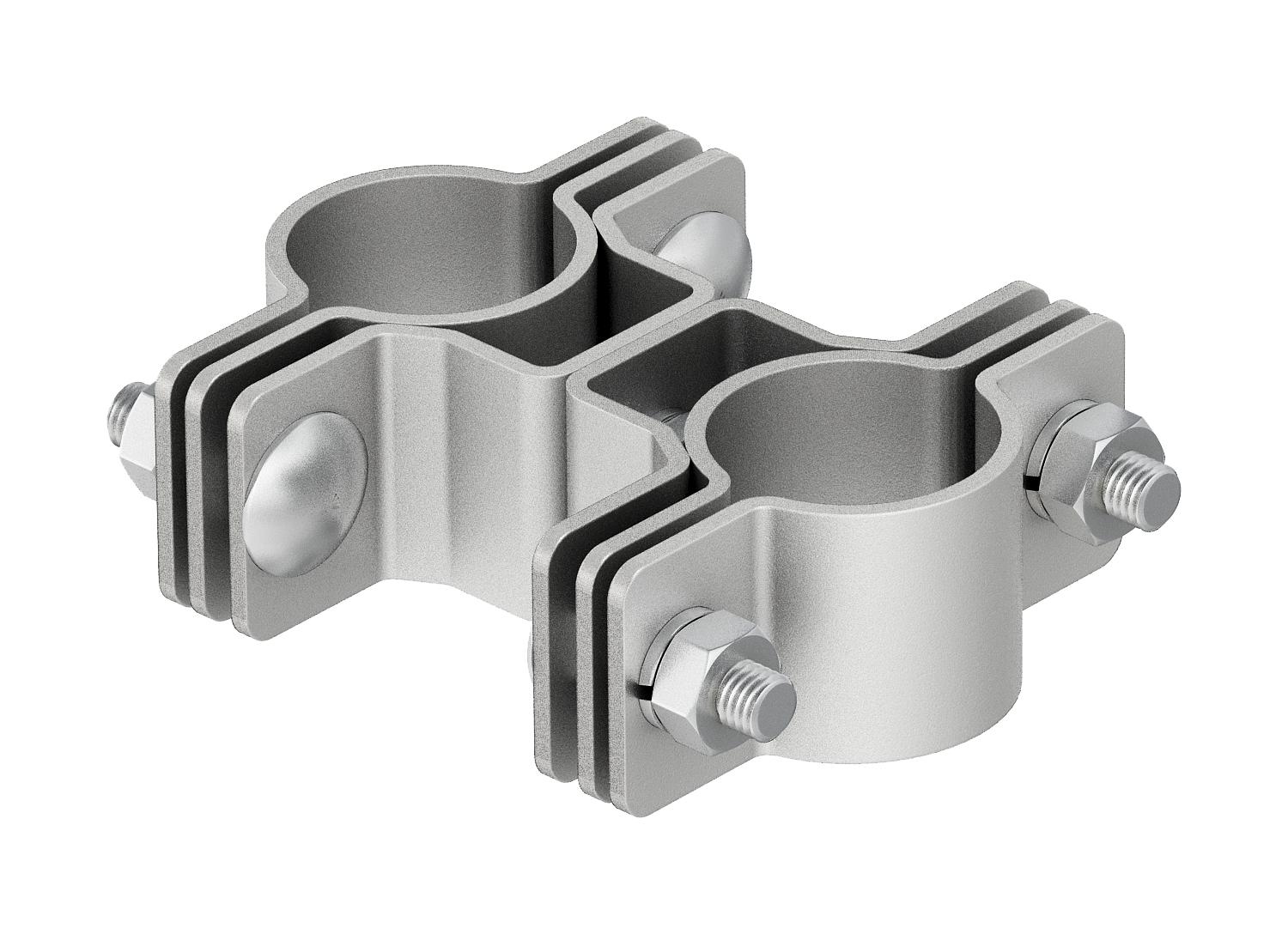

Tightening strap clip to fasten the insulated support pipes on the structure to be protected or for construction-side pipes of ø 40–50 mm.

Technical data

Fit	ø 40–50 mm
Material	Stainless steel

All types

All types

Types	Dimension L	Fit	Item no.	Quantity	SSU
isFang TS40-50	40 mm	ø 40–50 mm	5408958	piece	2 piece

Downloads

Data sheet isFang TS40-50 / 5408958 , 0.15MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Download

Mounting instructions Extended mounting instructions, long isCon® , 6.19MB , pdf
